Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ250 mm9.8 in
- Max airflow855 m³/h503 CFM
- Max static pressure165 Pa0.66 in. wg
- Voltage380 V
- Speed1,450 rpm
- Input power50 W
- Noise68 dB(A)

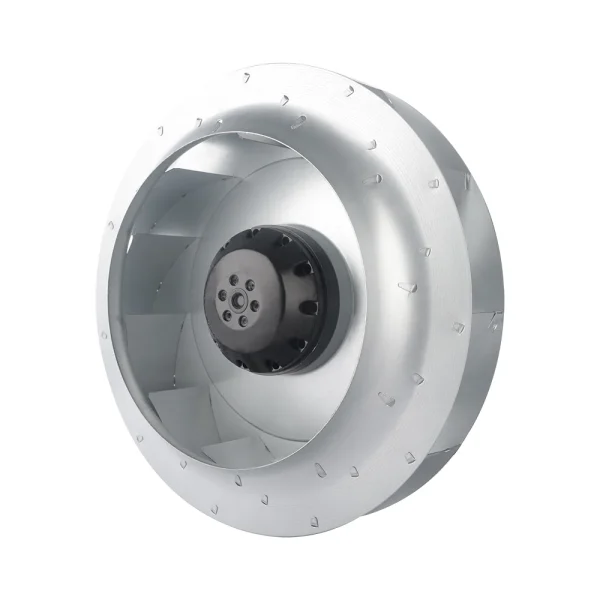

LWBA4D250-092NT-19 AC Backward Curved Centrifugal Fan Ø250 mm
Ø250 mm | AC | Max airflow 855 m³/h | Max static pressure 165 Pa | 68 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · RoHS · ETL on request
Downloads for LWBA4D250-092NT-19
PDFDatasheet · 1.7 MBNeed a non-standard size or another format? Ask an engineer or search the download center.
LWBA4D250-092NT-19 is a LONGWELL AC Backward Curved Centrifugal Fan from the Backward Curved Centrifugal Fans range, impeller Ø250 mm, rated 380 V AC, maximum airflow 855 m³/h, maximum static pressure 165 Pa, noise 68 dB(A), input power 50 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

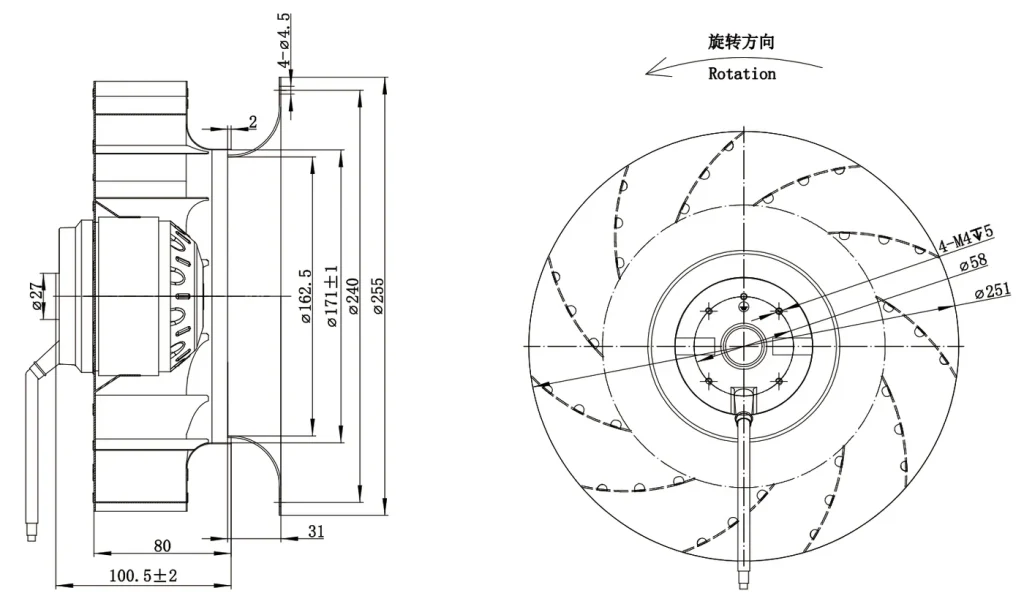

Technical data
| Model | LWBA4D250-092NT-19 |
|---|---|
| Series | LWBA4D250 |
| Motor type | AC |
| Phase | 3-phase |
| Rated voltage | 380 V |
| Frequency | 50 Hz |
| Current | 0.15 A |
| Input power | 50 W |
| Speed | 1,450 rpm |
| Max. airflow | 855 m³/h |
| Max. static pressure | 165 Pa |
| Noise | 68 dB(A) |
| Ambient temperature | -40 ~ 65 °C |
| Impeller diameter | Ø250 mm |
| Rotor diameter | 92 |
| Impeller material | Galvanised sheet steel |
| Protection class | IP44 |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Rotation | Clockwise,seen on rotor |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWBA4D250: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø250 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWBA4D250-092NT-19 this model | 855 m³/h | 165 Pa | 1,450 rpm | 50 W | 68 dB(A) | 380 V | |
| LWBA4E250-092NS-17 | 855 m³/h | 165 Pa | 1,400 rpm | 50 W | 68 dB(A) | 230 V | View |
| LWBA4D250-092NT-20 | 1,004 m³/h | 221 Pa | 1,600 rpm | 60 W | 70 dB(A) | 380 V | View |
| LWBA4E250-092NS-18 | 1,004 m³/h | 221 Pa | 1,600 rpm | 60 W | 70 dB(A) | 230 V | View |
| LWBA2E250-092NS-12 | 1,185 m³/h | 567 Pa | 2,650 rpm | 130 W | 76 dB(A) | 230 V | View |
| LWBA2D250-092NT-11 | 1,185 m³/h | 773 Pa | 2,600 rpm | 185 W | 76 dB(A) | 380 V | View |
| LWBA2D250-092NT-10 | 1,288 m³/h | 597 Pa | 2,450 rpm | 160 W | 74 dB(A) | 380 V | View |
| LWBA2D250-092NT-15 | 1,421 m³/h | 618 Pa | 2,450 rpm | 150 W | 76 dB(A) | 380 V | View |
| LWBA2E250-092NS-13 | 1,421 m³/h | 618 Pa | 2,500 rpm | 155 W | 76 dB(A) | 230 V | View |
| LWBA2D250-092NT-16 | 1,499 m³/h | 773 Pa | 2,550 rpm | 200 W | 79 dB(A) | 380 V | View |
| LWBA2E250-092NS-14 | 1,499 m³/h | 773 Pa | 2,600 rpm | 210 W | 79 dB(A) | 230 V | View |
| LWFA6E250-102NS-04 | 1,751 m³/h | 164.8 Pa | 900 rpm | 320 W | 62 dB(A) | 220 V | View |
| LWFA6D250-102NT-03 | 1,751 m³/h | 164.8 Pa | 910 rpm | 320 W | 62 dB(A) | 380 V | View |
| LWFA4D250-138NT-01 | 2,369 m³/h | 406.85 Pa | 1,400 rpm | 870 W | 72 dB(A) | 380 V | View |
| LWFA4E250-138NS-02 | 2,575 m³/h | 401.7 Pa | 1,330 rpm | 900 W | 72 dB(A) | 220 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
