LWBE3G225-072NS-07 EC Backward Curved Centrifugal Fan Ø225 mm

Ø225 mm | EC | Max airflow 1,313.25 m³/h | Max static pressure 1,030 Pa | 70 dB(A)

SKU: LWBE3G225-072NS-07 Categories: , ,
  • Factory direct
  • OEM / ODM
  • Samples in 1–3 days
  • Production 15–30 days
  • 18-month warranty
  • CE · ETL · RoHS
View RFQ →
Engineering files (on request)

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.

CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

LWBE3G225-072NS-07 — construction, airflow path and running condition.

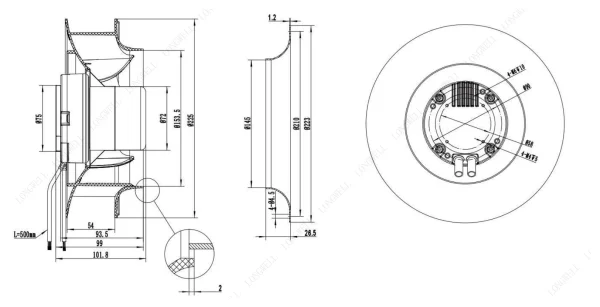

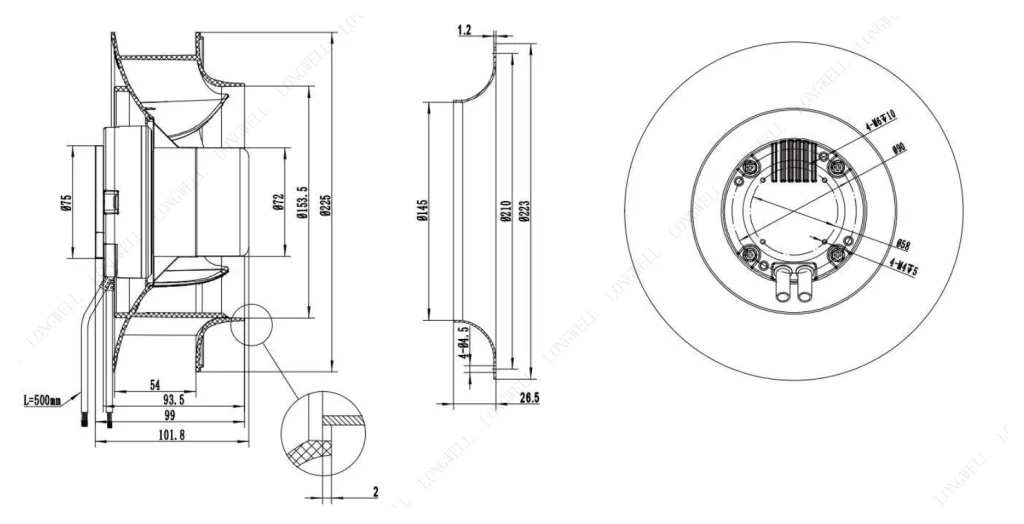

Dimensional drawingDimensions in mm. Confirm against the final approval drawing before machining cut-outs.
LWBE3G225-072NS-07 Dimensional drawing

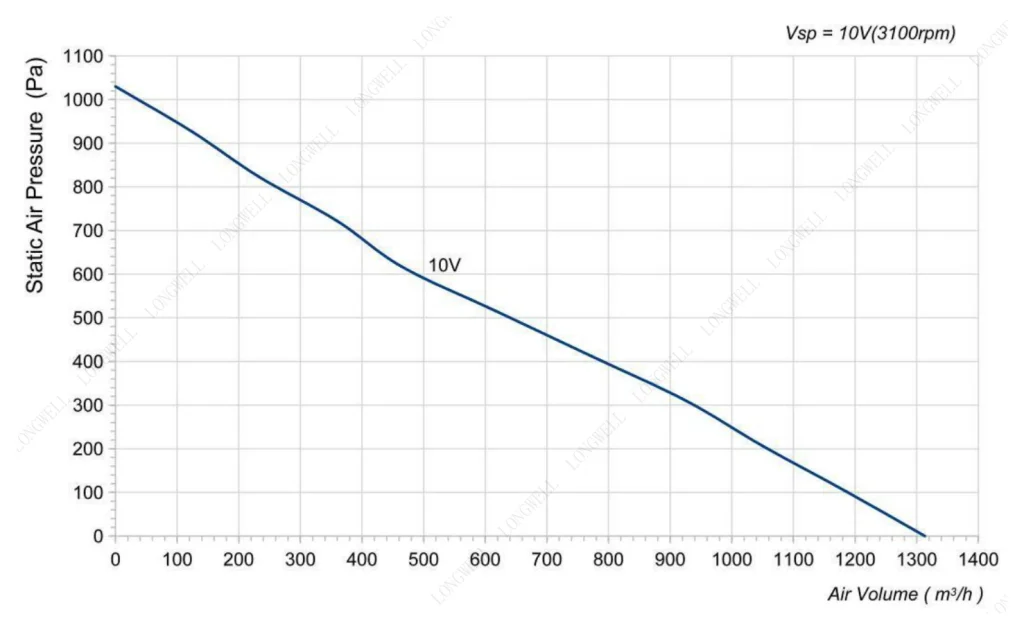

Performance curve (P-Q)Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.
LWBE3G225-072NS-07 Performance curve (P-Q)

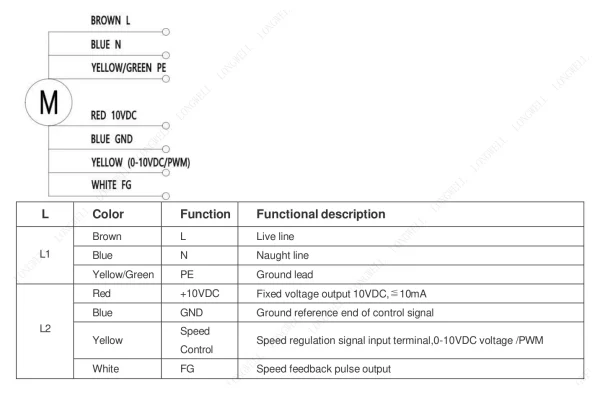

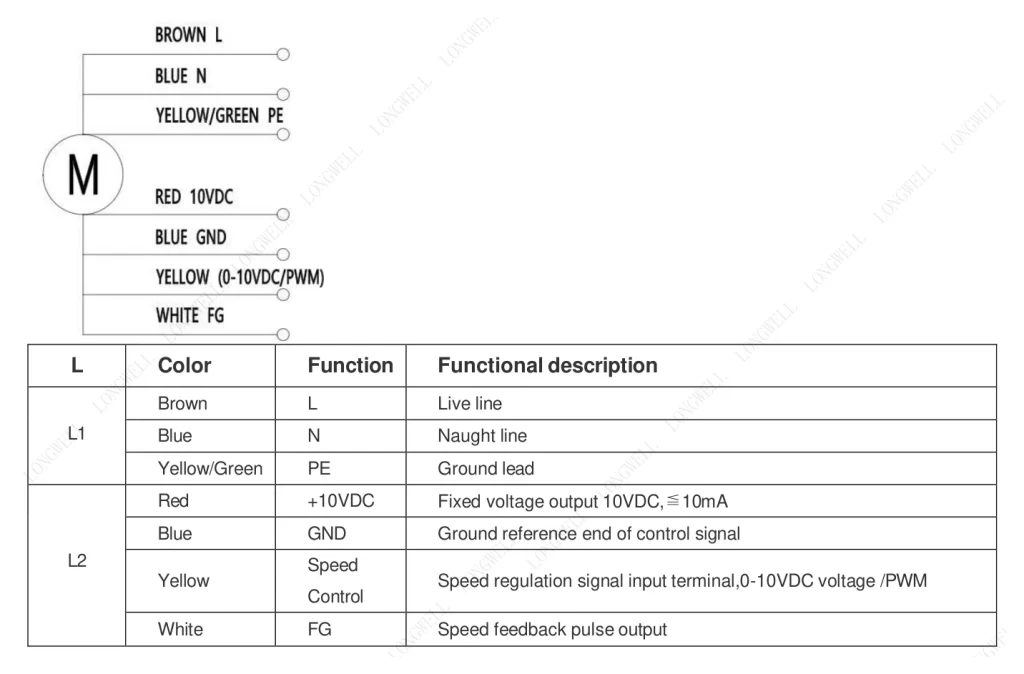

Wiring diagramLead colours and terminal assignment; TK = motor thermal contact.
LWBE3G225-072NS-07 Wiring diagram

Downloads for LWBE3G225-072NS-07

PDFDatasheetPDFCatalog · 195 KBPDFDrawing · 227 KBDOCXDatasheet · 640 KB

Need a non-standard size or another format? Ask an engineer or search the download center.

LWBE3G225-072NS-07 is a LONGWELL EC Backward Curved Centrifugal Fan from the Backward Curved Centrifugal Fans range, impeller Ø225 mm, rated 230 V EC, maximum airflow 1,313.25 m³/h, maximum static pressure 1,030 Pa, noise 70 dB(A), input power 170 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.

Technical data

Model LWBE3G225-072NS-07
Series LWBE3G225
Motor type EC
Phase 1-phase
Rated voltage 230 V
Frequency 50 Hz
Current 1.26 A
Input power 170 W
Speed 3,100 rpm
Max. airflow 1,313.25 m³/h
Max. airflow (CFM) 772 CFM
Max. static pressure 1,030 Pa
Noise 70 dB(A)
Ambient temperature -25 ~ 60 °C
Storage temperature -40 ~ 80℃
Humidity 5 ~ 90 % RH
Altitude < 1000m
Impeller diameter Ø225 mm
Rotor diameter 72
Impeller material PA6+GF30% ( Impeller )
Protection class IP55
Insulation class B
Bearing Maintenance-free deep groove ball bearings
Duty S1
Balance grade G6.3
Vibration standard JB/T 8689
Service life 40,000Hours(L10), At 40 °C room, humidity 15%~65%RH
Rotation Clockwise,seen on rotor

Typical applications

  • Air handling units (AHU) and rooftop units (RTU)
  • Data-center CRAH / CRAC units and fan walls
  • Dust extraction and process ventilation
  • Fan filter units and air purifiers

Series LWBE3G225: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø225 mm · EC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

ModelMax airflowMax static pressureSpeedPowerNoiseVoltage
LWBE3G225-072NS-07 this model 1,313.25 m³/h1,030 Pa 3,100 rpm170 W70 dB(A)230 V
LWFE3G225-072PS-01 1,009.4 m³/h618 Pa 2,300 rpm85 W65 dB(A)230 V View
LWBE3G225-072PS-11 1,112 m³/h433 Pa 2,500 rpm80 W69 dB(A)230 V View
LWBE3G225-072NS-10 1,112 m³/h433 Pa 2,500 rpm80 W69 dB(A)230 V View
LWFE3G225-072PS-02 1,184.5 m³/h669.5 Pa 2,600 rpm115 W67 dB(A)230 V View
LWFE3G225-072PS-03 1,313.25 m³/h1,030 Pa 3,100 rpm170 W70 dB(A)230 V View
LWFE3G225-092PS-04 1,359.6 m³/h906.4 Pa 3,600 rpm230 W71 dB(A)230 V View
LWBE3G225-092NS-10 1,359.6 m³/h906.4 Pa 3,600 rpm230 W71 dB(A)230 V View
LWBE3G225-092NU-17 1,359.6 m³/h906.4 Pa 3,600 rpm230 W71 dB(A)115 V View
LWBE3G225-092PS-12 1,528 m³/h683 Pa 3,060 rpm170 W71.1 dB(A)230 V View
LWBE3G225-092NS-11 1,528 m³/h683 Pa 3,060 rpm170 W71 dB(A)230 V View
LWBE3G225-092PS-13 1,545 m³/h731 Pa 3,000 rpm160 W71 dB(A)230 V View
LWBE3G225-092NS-12 1,545 m³/h731 Pa 3,000 rpm160 W71 dB(A)230 V View
LWBE3G225-092PS-07 1,630 m³/h839 Pa 3,500 rpm315 W71 dB(A)230 V View
LWBE3G225-092NS-13 1,630 m³/h839 Pa 3,500 rpm315 W71 dB(A)230 V View
