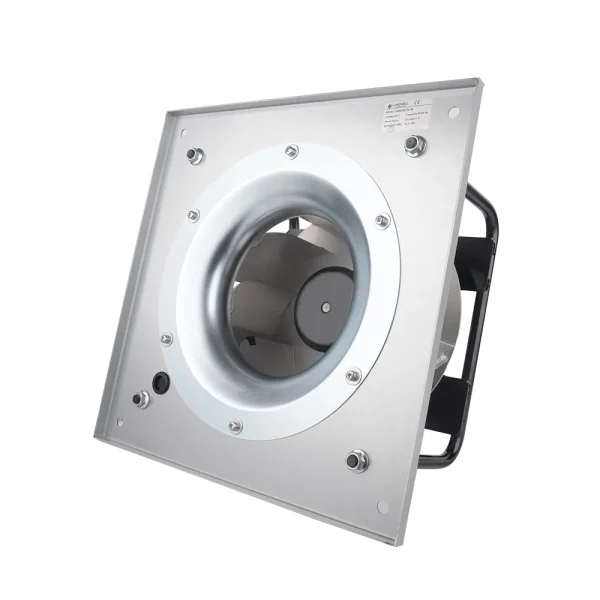

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.

ImpellerØ280 mm11.0 in
Max airflow2,472 m³/h1,454 CFM
Max static pressure1,051 Pa4.22 in. wg
Voltage230 V
Speed3,100 rpm
Input power475 W
Noise82 dB(A)

LWBE3G280-102PS-18 EC Plug Fan Ø280 mm

Ø280 mm | EC | Max airflow 2,472 m³/h | Max static pressure 1,051 Pa | 82 dB(A)

SKU: LWBE3G280-102PS-18 Categories: Centrifugal Fans, Impeller Ø250–310 mm, Plug Fans (RLM Plenum Fans)

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · ETL · RoHS

PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueEC ( ) EC plug fans #1 · SKU on PDF p. 29

All files for LWBE3G280-102PS-186 files · direct download

PDFFull product catalogue · model on PDF p. 29 WEBPDimensional drawing WEBPPerformance curve WEBPWiring diagram DOCXDatasheet

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Proven in: AHU & ventilation unit fans · CRAH FanGrid retrofit · Heat pump fan programme — all case studies on longwellfans.com

Cross-reference: same impeller size class as ebm-papst K3G280, ebm-papst R3G280, Ziehl-Abegg RH28C, Sanyo Denki San Ace EC Turbo — side-by-side comparison on longwellfans.com. Mounting is confirmed against the LONGWELL drawing before ordering.

Typical applications: Industrial AHUs · Air conditioning · Air handling units · FanGrid arrays — all industries

Engineering files (on request)

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.

CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

Get a quote · LWBE3G280-102PS-18

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWBE3G280-102PS-18datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 12-month warranty
How ordering works →

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (3 here, rated 230 V). Data version: catalogue 2026-08. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

LONGWELL 280mm EC Backward Centrifugal Fan: High Efficiency, Low Noise HVAC Solution | LWBE3G280 · open in video library

朗伟EC后倾离心风机：高效节能，智能驱动未来 | LWBE3G280-102NS-30 · open in video library

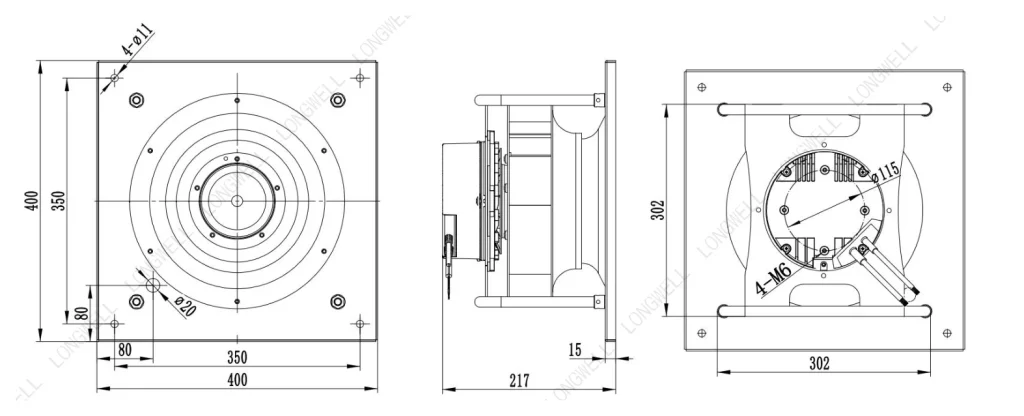

LWBE3G280-102PS-18 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

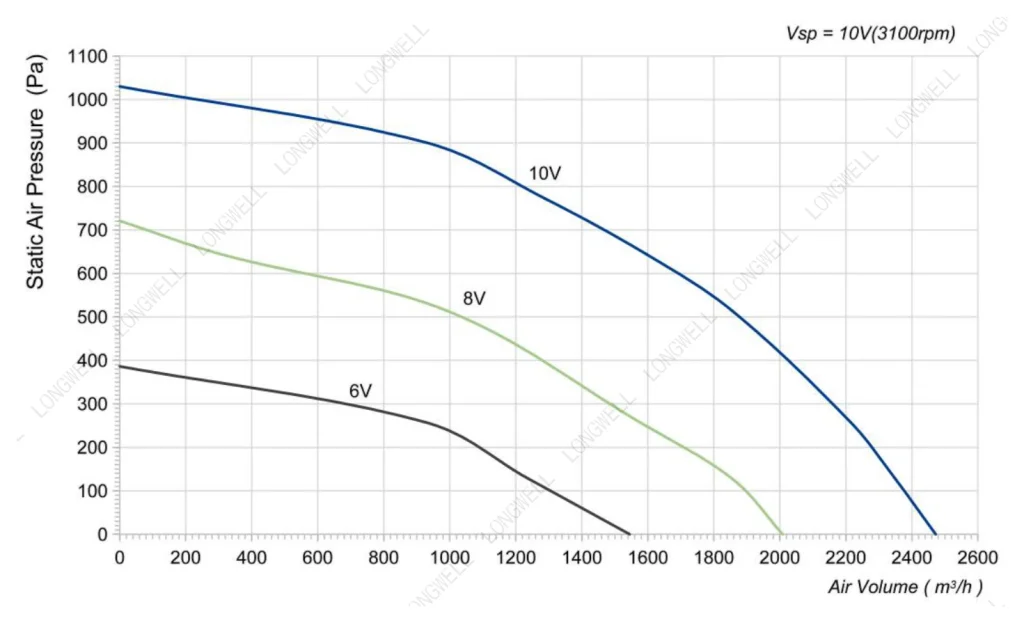

LWBE3G280-102PS-18 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

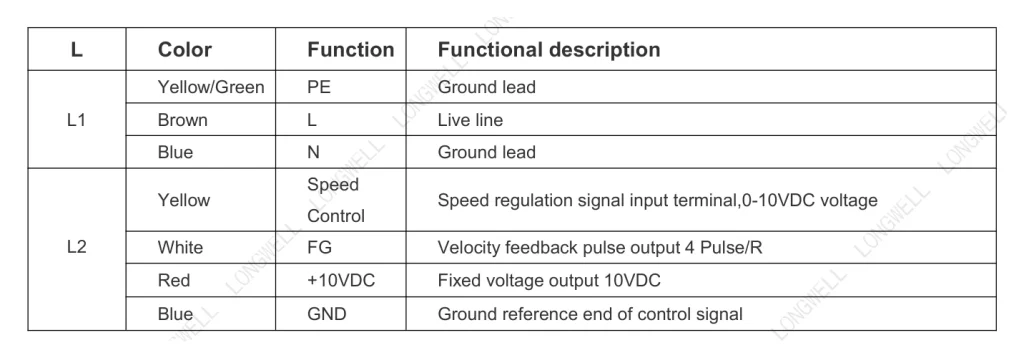

LWBE3G280-102PS-18 Wiring diagram — **Wiring diagram**Lead colours and terminal assignment; TK = motor thermal contact.

Downloads for LWBE3G280-102PS-18

PDFDatasheet PDFFull product catalogue · EC ( ) EC plug fans #1 · model on PDF p. 29 · 48.6 MB DOCXDatasheet · 615 KB

Need a non-standard size or another format? Ask an engineer or search the download center.

LWBE3G280-102PS-18 is a LONGWELL EC Plug Fan from the Plug Fans (RLM Plenum Fans) range, impeller Ø280 mm, rated 230 V EC, maximum airflow 2,472 m³/h, maximum static pressure 1,051 Pa, noise 82 dB(A), input power 475 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.

Technical data

Model	LWBE3G280-102PS-18
Series	LWBE3G280
Motor type	EC
Phase	1-phase
Rated voltage	230 V
Frequency	50 Hz
Current	3.1 A
Input power	475 W
Speed	3,100 rpm
Max. airflow	2,472 m³/h
Max. airflow (CFM)	1,454 CFM
Max. static pressure	1,051 Pa
Noise	82 dB(A)
Ambient temperature	-25 ~ 60 °C
Storage temperature	-25 ~ 70℃
Humidity	0 ~ 85 % RH
Altitude	< 1000m
Impeller diameter	Ø280 mm
Rotor diameter	102 mm
Impeller material	Aluminum Alloy( Impeller )
Protection class	IP54
Insulation class	B
Bearing	Maintenance-free deep groove ball bearings
Duty	S1
Balance grade	G6.3
Vibration standard	JB/T 8689
Service life	40,000Hours(L10), At 40 °Croom, humidity 15%~65%RH
Speed control	Control input 0~10VDC/PWM
Control signal	Control signal VSP voltage range1±0.1VDC~9.5±0.2VDC(During normal operation, when the VSP voltage is below 1.0±0.1VDC, the motor switches from operating mode to standby mode)
Speed feedback	Tach output: 4 Pulse/R; FG internal open circuit output, external pull-up resistor R, pull-up voltage V+
Auxiliary output	Output 10VDC, Max Current 10 mA
Protection functions	Current limiting protection , Over-temperature protection, Over-current protectionLocked-rotor protection’ , Input power supply lacks phase protection
Soft start	Delay time <30 seconds to full speed

Typical applications

Air handling units (AHU) and rooftop units (RTU)
Data-center CRAH / CRAC units and fan walls
Dust extraction and process ventilation
Fan filter units and air purifiers

Series LWBE3G280: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø280 mm · EC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWBE3G280-102PS-18 this model	2,472 m³/h	1,051 Pa	3,100 rpm	475 W	82 dB(A)	230 V
LWBE3G280-092PS-14	1,743 m³/h	481 Pa	2,200 rpm	105 W	69 dB(A)	230 V	View
LWBE3G280-092PS-15	1,813 m³/h	680 Pa	2,600 rpm	165 W	74 dB(A)	230 V	View
LWBE3G280-092NS-12	1,813 m³/h	680 Pa	2,600 rpm	165 W	74 dB(A)	230 V	View
LWBE3G280-092PS-13	2,019 m³/h	546 Pa	2,200 rpm	180 W	72 dB(A)	230 V	View
LWBE3G280-102PS-16	2,318 m³/h	824 Pa	2,760 rpm	340 W	78 dB(A)	230 V	View
LWBE3G280-102NS-14	2,318 m³/h	824 Pa	2,760 rpm	340 W	78 dB(A)	230 V	View
LWBE3G280-102NS-15	2,472 m³/h	1,051 Pa	3,100 rpm	475 W	82 dB(A)	230 V	View
LWBE3G280-138PT-05	3,028 m³/h	886 Pa	3,000 rpm	860 W	85 dB(A)	400 V	View
LWBE3G280-138NT-03	3,028 m³/h	886 Pa	3,000 rpm	860 W	85 dB(A)	400 V	View
LWBE3G280-102PS-19	3,039 m³/h	1,102 Pa	3,000 rpm	625 W	82 dB(A)	230 V	View
LWBE3G280-102NS-19	3,039 m³/h	1,102 Pa	3,000 rpm	625 W	82 dB(A)	230 V	View
LWBE3G280-138PT-06	3,790 m³/h	1,421 Pa	3,500 rpm	1,355 W	89 dB(A)	400 V	View
LWBE3G280-138NT-18	3,790 m³/h	1,421 Pa	3,500 rpm	1,355 W	89 dB(A)	400 V	View
LWFE3G280-102PT-08	4,377.5 m³/h	1,751 Pa	3,370 rpm	1,100 W	78 dB(A)	400 V	View
