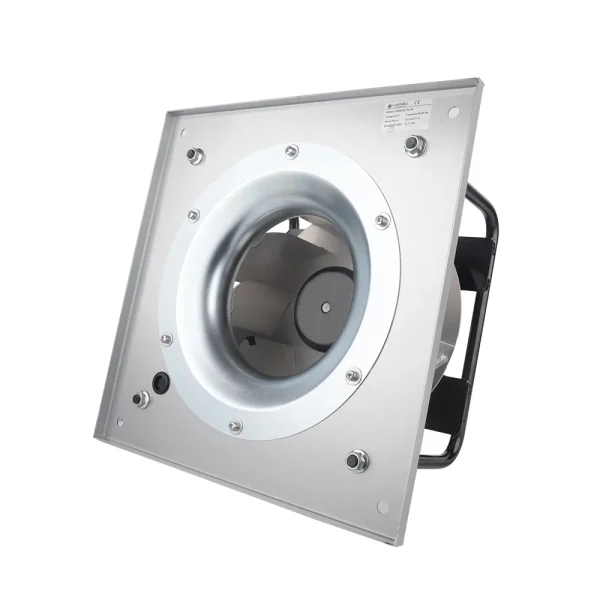

Representative image of the series — the ratings of this model are given in the data table below.

ImpellerØ280 mm11.0 in
Max airflow4,377.5 m³/h2,577 CFM
Max static pressure1,751 Pa7.03 in. wg
Voltage400 V
Speed3,370 rpm
Input power1,100 W1.47 hp
Noise78 dB(A)

LWFE3G280-102PT-08 EC Plug Fan Ø280 mm

Ø280 mm | EC | Max airflow 4,377.5 m³/h | Max static pressure 1,751 Pa | 78 dB(A)

SKU: LWFE3G280-102PT-08 Categories: Centrifugal Fans, Impeller Ø250–310 mm, Plug Fans (RLM Plenum Fans)

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · ETL · RoHS

PDFRequest datasheetsent by an engineer within 1 business day

All files for LWFE3G280-102PT-08files in preparation

Another format or a non-standard variant? Ask an engineer · download center

Used in

Industrial AHUs Air conditioning Air handling units FanGrid arrays All industries →

Proven in projects

AHU & ventilation unit fans CRAH FanGrid retrofit Heat pump fan programme All case studies →

Get a quote · LWFE3G280-102PT-08

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWFE3G280-102PT-08datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Technical description LWFE3G280-102PT-08

LWFE3G280-102PT-08 is a LONGWELL EC Plug Fan from the Plug Fans (RLM Plenum Fans) range, impeller Ø280 mm, rated 400 V EC, maximum airflow 4,377.5 m³/h, maximum static pressure 1,751 Pa, noise 78 dB(A), input power 1,100 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.

Technical data

Model	LWFE3G280-102PT-08
Series	LWFE3G280
Motor type	EC
Phase	3-phase
Rated voltage	400 V
Frequency	50 Hz
Current	1.7 A
Input power	1,100 W
Speed	3,370 rpm
Max. airflow	4,377.5 m³/h
Max. static pressure	1,751 Pa
Noise	78 dB(A)
Ambient temperature	-25 ~ 60 °C
Impeller diameter	Ø280 mm
Rotor diameter	102 mm
Impeller material	Aluminum Alloy
Protection class	IP55
Insulation class	F
Bearing	Maintenance-free ball bearings
Duty	S1

Typical applications

Air handling units (AHU) and rooftop units (RTU)
Data-center CRAH / CRAC units and fan walls
Dust extraction and process ventilation
Fan filter units and air purifiers

Series LWFE3G280: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Company certificates

Scans of original documents held by Ningbo Longwell Electric Technology Co., Ltd.: the company ISO 9001 / 14001 / 45001 management-system certificate. Click a scan to open the original.

ISO 9001 / 14001 / 45001Management systems of Ningbo Longwell Electric Technology Co., Ltd. (company certificate).

ISO 9001 / 14001 / 45001 management system certificate — LONGWELL certificate

PDFISO 9001 / 14001 / 45001 management system certificate

Need a Declaration of Conformity for this model and your destination market? Ask us — we arrange additional certification on request.

How to order LWFE3G280-102PT-08

Most first orders follow the same eight steps. Quantities, terms and lead times are confirmed in your quotation.

1SelectFind models by duty point in the selector or by model number, compare on the curve and add them to your RFQ list.
2Engineering checkWithin 1 business day you receive the duty-point check on the curve, price and lead time.
3SamplesStock models ship in 1–3 days.
4Validation supportDatasheets, drawings, wiring diagrams and DoC per model; test reports, CAD and register maps after a short project check or NDA.
5Order & paymentProforma invoice; first orders on T/T 30 / 70.
6Production & release15–30 days at the partner factory that builds your model, then inspected and released to LONGWELL standards with outgoing sampling to AQL 2.5.
7ShippingFOB / CIF / DDP by sea from Ningbo or Shanghai; express and air on EXW / FCA / DAP.
8After-sales12 months standard, extendable to 18–24 months by project agreement; test records retained for 5 years; 8D closed-loop for any issue; annual technical review for framework customers.

See terms, QC and FAQ →

Test & release at LONGWELL

Specified and drawn by LONGWELL; built to LONGWELL drawings by qualified partner factories; inspected and released to LONGWELL standards before shipment.

See test and release photos (8)

LONGWELL Semi-anechoic chamber — Semi-anechoic chamber

LONGWELL Test laboratory — Test laboratory

Test labs and all certificate scans →

Alternatives with the same impeller (Ø280 mm · EC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWFE3G280-102PT-08 this model	4,377.5 m³/h	1,751 Pa	3,370 rpm	1,100 W	78 dB(A)	400 V
LWBE3G280-092PS-14	1,743 m³/h	481 Pa	2,200 rpm	105 W	69 dB(A)	230 V	View
LWBE3G280-092PS-15	1,813 m³/h	680 Pa	2,600 rpm	165 W	74 dB(A)	230 V	View
LWBE3G280-092NS-12	1,813 m³/h	680 Pa	2,600 rpm	165 W	74 dB(A)	230 V	View
LWBE3G280-092PS-13	2,019 m³/h	546 Pa	2,200 rpm	180 W	72 dB(A)	230 V	View
LWBE3G280-102PS-16	2,318 m³/h	824 Pa	2,760 rpm	340 W	78 dB(A)	230 V	View
LWBE3G280-102NS-14	2,318 m³/h	824 Pa	2,760 rpm	340 W	78 dB(A)	230 V	View
LWBE3G280-102PS-18	2,472 m³/h	1,051 Pa	3,100 rpm	475 W	82 dB(A)	230 V	View
LWBE3G280-102NS-15	2,472 m³/h	1,051 Pa	3,100 rpm	475 W	82 dB(A)	230 V	View
LWBE3G280-138PT-05	3,028 m³/h	886 Pa	3,000 rpm	860 W	85 dB(A)	400 V	View
LWBE3G280-138NT-03	3,028 m³/h	886 Pa	3,000 rpm	860 W	85 dB(A)	400 V	View
LWBE3G280-102PS-19	3,039 m³/h	1,102 Pa	3,000 rpm	625 W	82 dB(A)	230 V	View
LWBE3G280-102NS-19	3,039 m³/h	1,102 Pa	3,000 rpm	625 W	82 dB(A)	230 V	View
LWBE3G280-138PT-06	3,790 m³/h	1,421 Pa	3,500 rpm	1,355 W	89 dB(A)	400 V	View
LWBE3G280-138NT-18	3,790 m³/h	1,421 Pa	3,500 rpm	1,355 W	89 dB(A)	400 V	View
