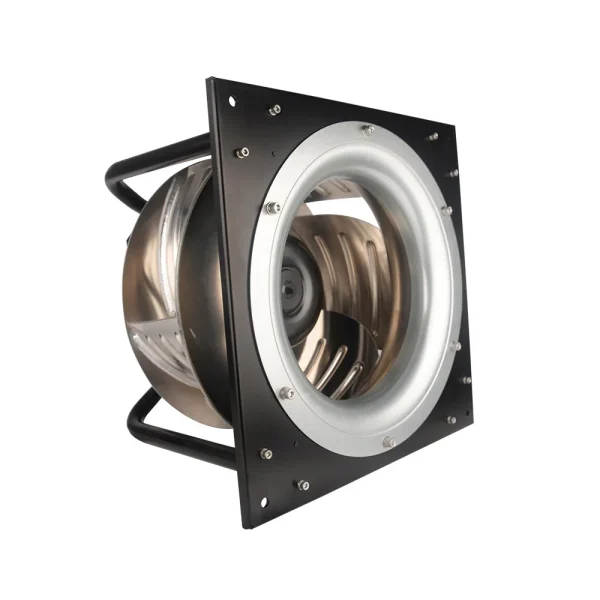

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.

ImpellerØ310 mm12.2 in
Max airflow2,410 m³/h1,418 CFM
Max static pressure443 Pa1.78 in. wg
Voltage230 V
Speed1,750 rpm
Input power150 W
Noise75 dB(A)

LWBE3G310-092PS-12 EC Plug Fan Ø310 mm

Ø310 mm | EC | Max airflow 2,410 m³/h | Max static pressure 443 Pa | 75 dB(A)

SKU: LWBE3G310-092PS-12 Categories: Centrifugal Fans, Impeller Ø250–310 mm, Plug Fans (RLM Plenum Fans)

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · ETL · RoHS

PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueEC ( ) EC plug fans #1 · SKU on PDF p. 33

All files for LWBE3G310-092PS-126 files · direct download

PDFFull product catalogue · model on PDF p. 33 WEBPDimensional drawing WEBPPerformance curve WEBPWiring diagram DOCXDatasheet

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Proven in: AHU & ventilation unit fans · CRAH FanGrid retrofit · Heat pump fan programme — all case studies on longwellfans.com

Cross-reference: same impeller size class as ebm-papst K3G310, ebm-papst R3G310, ebm-papst RadiPac 310, Ziehl-Abegg RH31C — side-by-side comparison on longwellfans.com. Mounting is confirmed against the LONGWELL drawing before ordering.

Typical applications: Industrial AHUs · Air conditioning · Air handling units · FanGrid arrays — all industries

Engineering files (on request)

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.

CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

Get a quote · LWBE3G310-092PS-12

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWBE3G310-092PS-12datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 12-month warranty
How ordering works →

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (3 here, rated 230 V). Data version: catalogue 2026-08. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

LONGWELL 310mm EC Backward Curved Centrifugal Fan for High-Efficiency HVAC & Air Handling | LWBE3G310 · open in video library

Quiet & Stable, Rooted in Precision Dynamic Balancing | LWBE3G310-102NS · open in video library

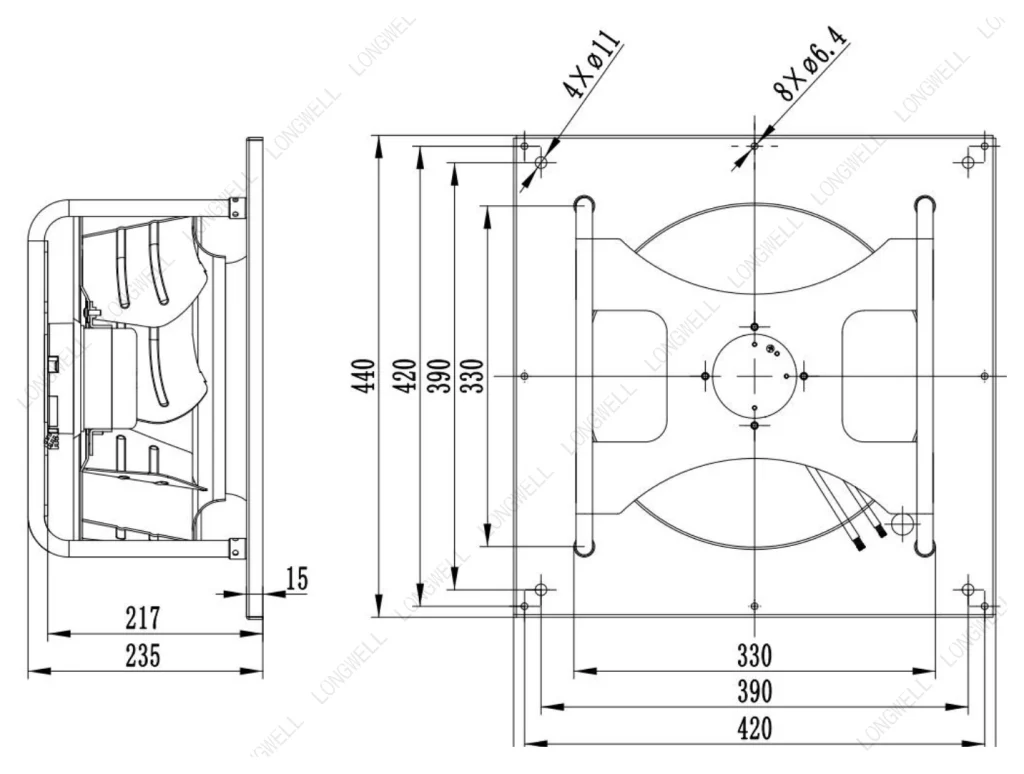

LWBE3G310-092PS-12 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

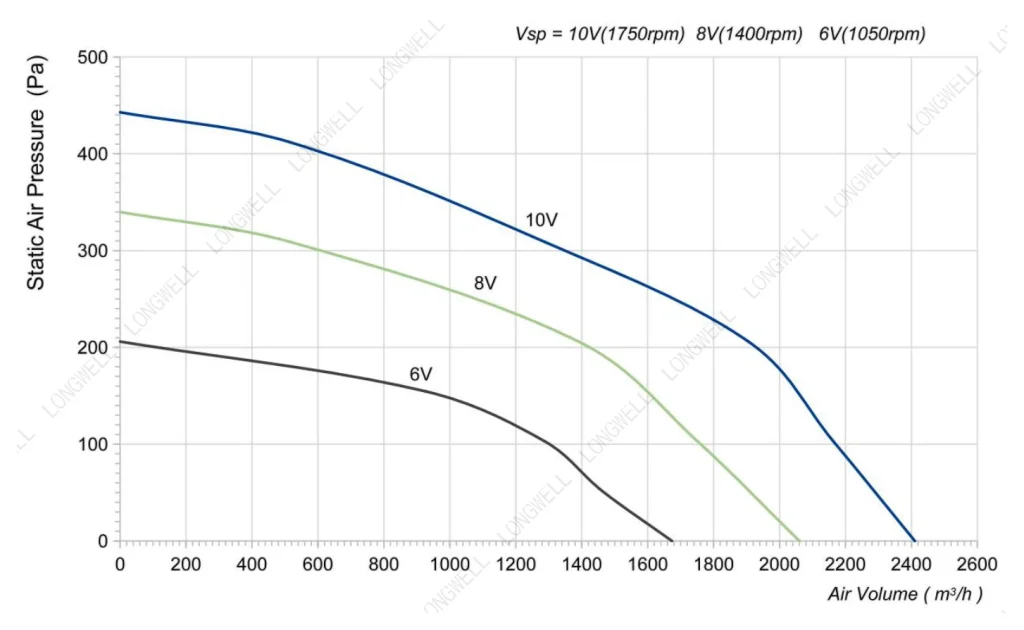

LWBE3G310-092PS-12 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

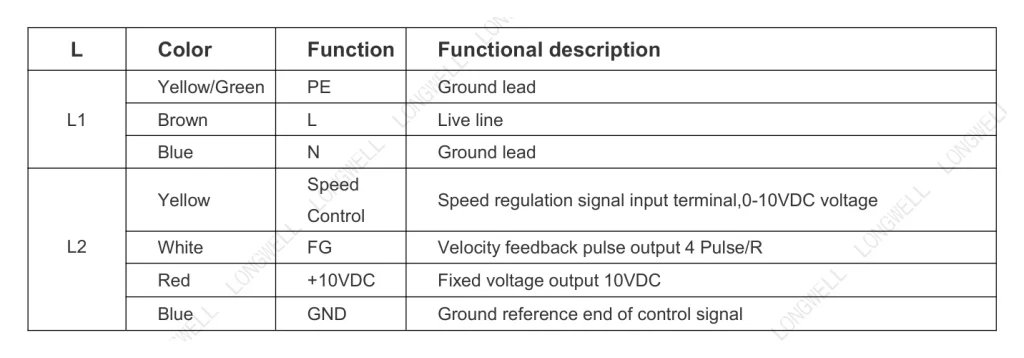

LWBE3G310-092PS-12 Wiring diagram — **Wiring diagram**Lead colours and terminal assignment; TK = motor thermal contact.
