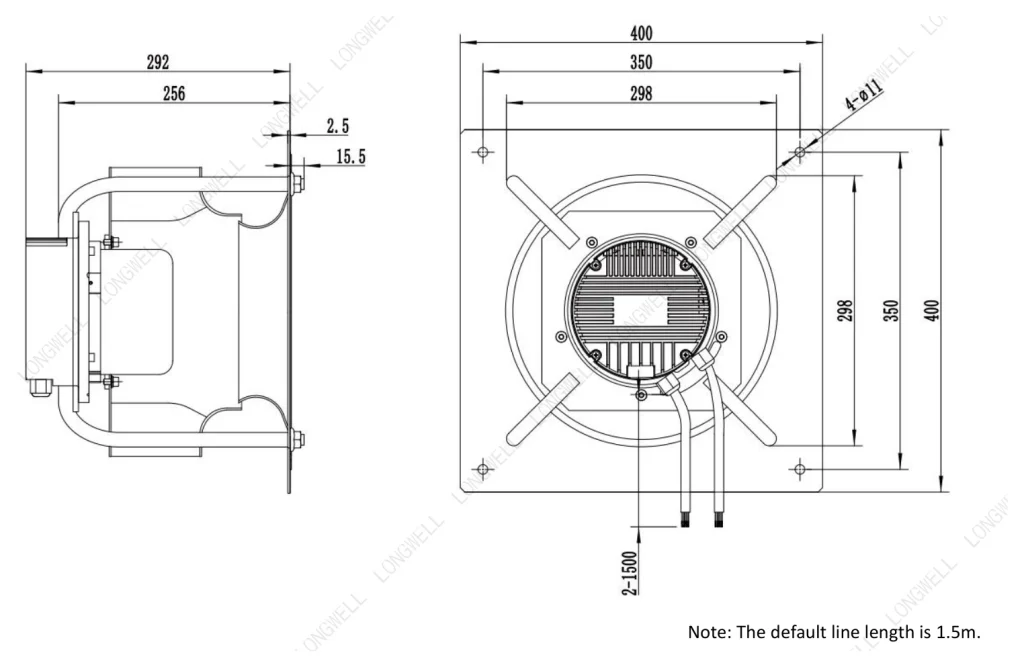

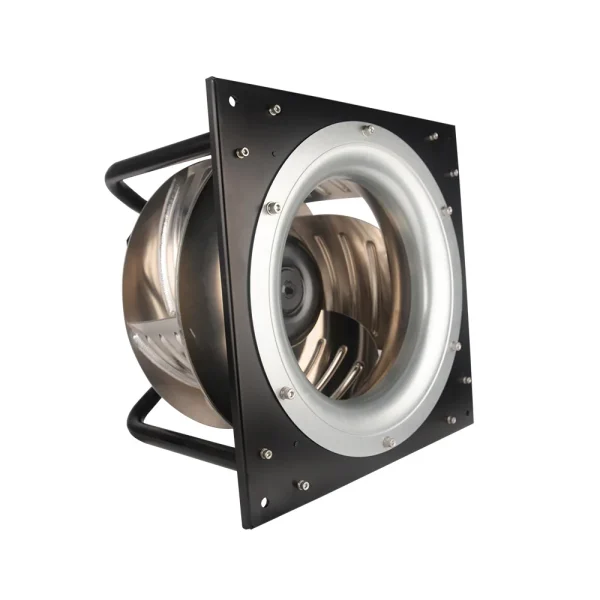

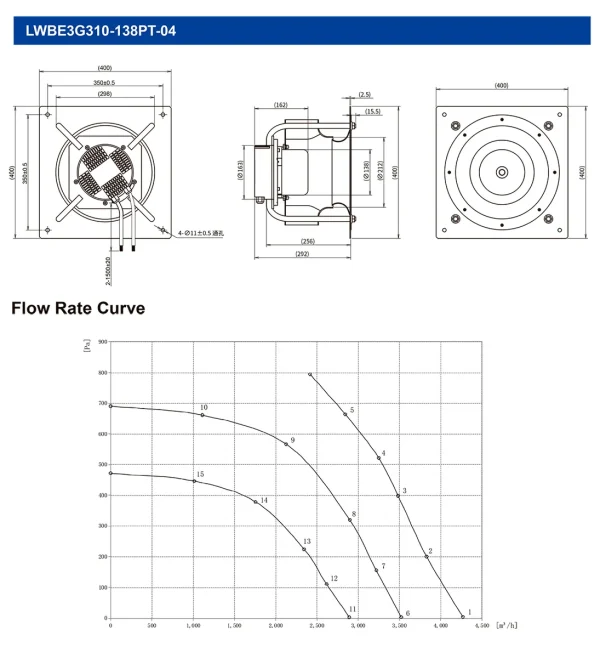

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.

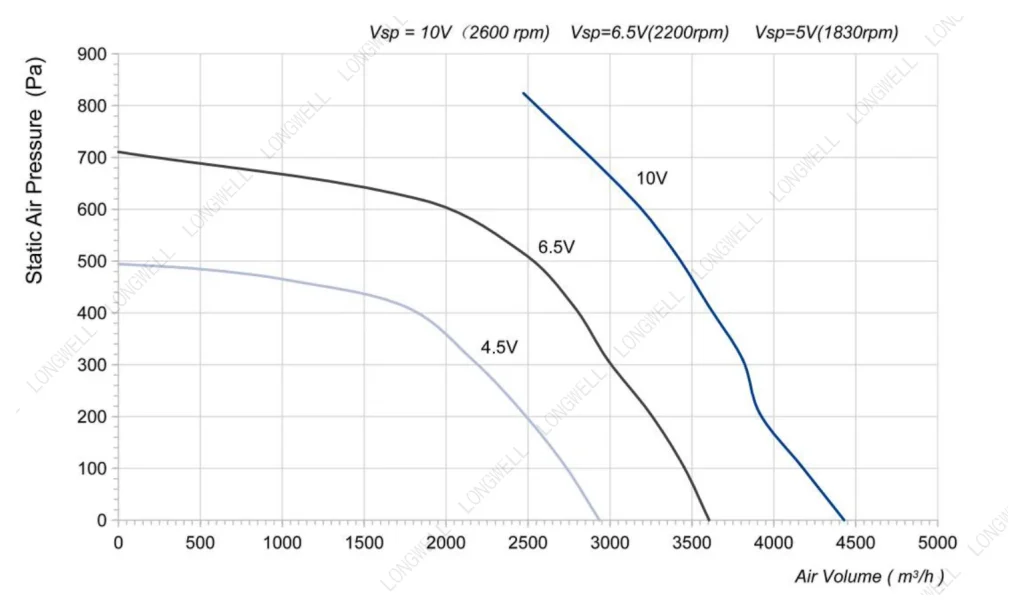

- ImpellerØ310 mm12.2 in
- Max airflow4,398 m³/h2,587 CFM
- Max static pressure824 Pa3.31 in. wg
- Voltage400 V
- Speed2,600 rpm
- Input power980 W1.31 hp
- Noise74 dB(A)
LWBE3G310-138PT-04 EC Plug Fan Ø310 mm
Ø310 mm | EC | Max airflow 4,398 m³/h | Max static pressure 824 Pa | 74 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · RoHS · ETL on request

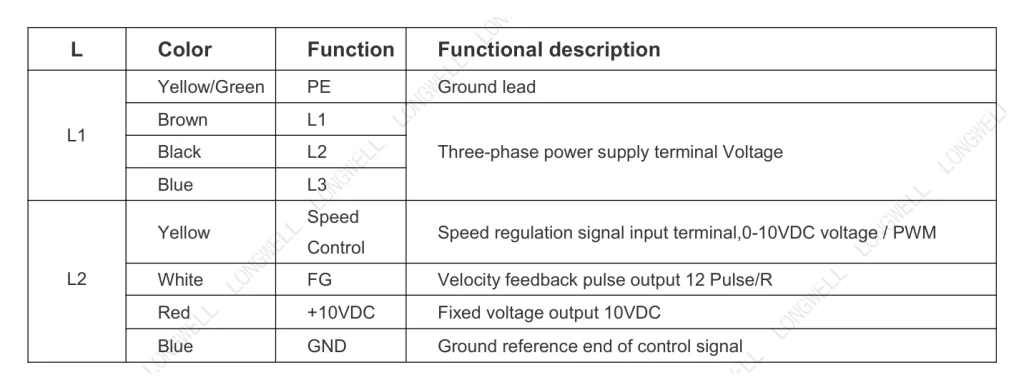

PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueEC ( ) EC plug fans #1 · SKU on PDF p. 38
All files for LWBE3G310-138PT-046 files · direct download
PDFFull product catalogue · model on PDF p. 38WEBPDimensional drawingWEBPPerformance curveWEBPWiring diagramDOCXDatasheet
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
