ImpellerØ90 mm3.5 in
Max airflow1,146 m³/h675 CFM
Max static pressure130 Pa0.52 in. wg
Voltage24 V
Speed1,500 rpm
Input power65 W
Noise57 dB(A)

LWCD-90680MN-06 DC Cross Flow Fan Ø90 mm

Ø90 mm | DC | Max airflow 1,146 m³/h | Max static pressure 130 Pa | 57 dB(A)

SKU: LWCD-90680MN-06 Categories: Cross Flow Fans, DC Cross Flow Fans, Impeller Ø60–150 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · ETL · RoHS

PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueCross FLow Fan · SKU on PDF p. 20

All files for LWCD-90680MN-064 files · direct download

PDFFull product catalogue · model on PDF p. 20 WEBPDimensional drawing PDFDrawing

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Electric heaters Display cases Air curtains Air purifiers All industries →

Proven in projects

Air curtain OEM programme Trench convector & heating terminals Consumer air cooler & fan ODM All case studies →

Engineering files (on request)

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.

EXB2D drawing (CAXA EXB)275 KBRequest →

CAD models contain the blade geometry and are not publicly downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

Get a quote · LWCD-90680MN-06

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWCD-90680MN-06datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

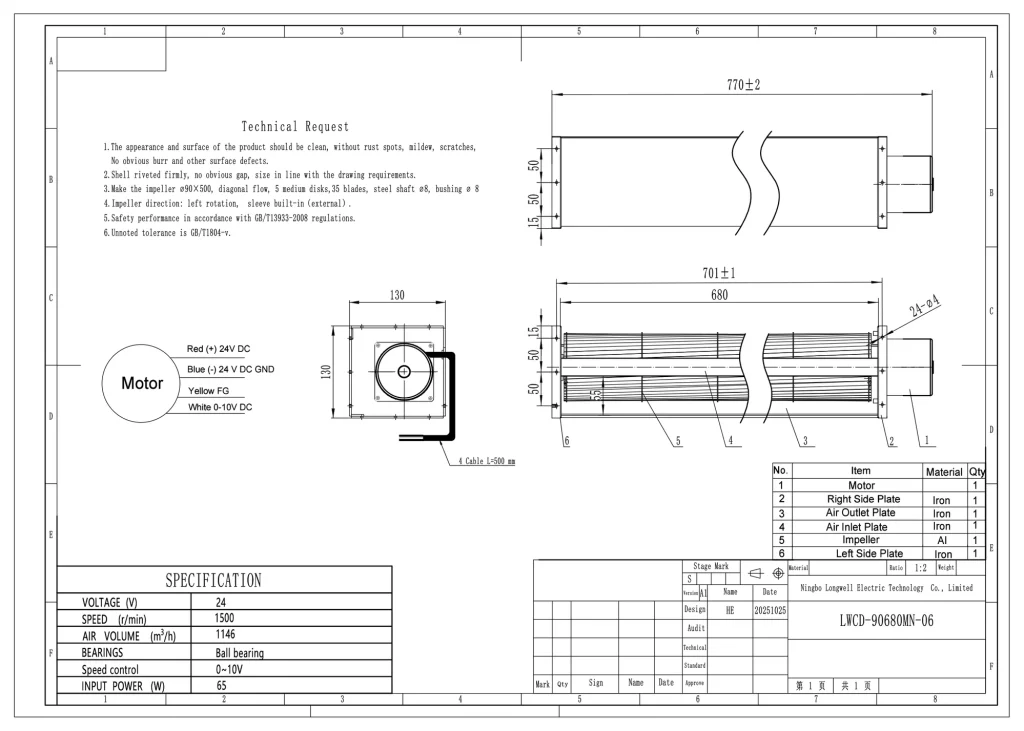

Dimensional drawing LWCD-90680MN-06

LWCD-90680MN-06 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

Files for LWCD-90680MN-06: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWCD-90680MN-06

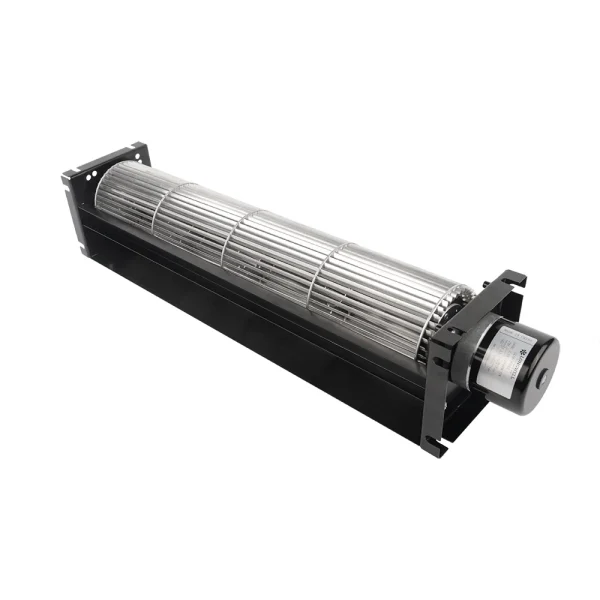

LWCD-90680MN-06 is a LONGWELL DC Cross Flow Fan from the DC Cross Flow Fans range, impeller Ø90 mm, rated 24 V DC, maximum airflow 1,146 m³/h, maximum static pressure 130 Pa, noise 57 dB(A), input power 65 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model	LWCD-90680MN-06
Series	LWCD90680
Motor type	DC
Inlet	Single inlet
Rated voltage	24 V
Input power	65 W
Speed	1,500 rpm
Max. airflow	1,146 m³/h
Max. static pressure	130 Pa
Noise	57 dB(A)
Ambient temperature	-25 ~ 60 °C
Impeller diameter	Ø90 mm
Outlet length	680mm
Impeller material	Aluminum alloy
Insulation class	B
Bearing	Maintenance-free ball bearings
Duty	S1

Typical applications

Indoor air-conditioning units
Air curtains and door air barriers
Elevator and cabinet ventilation
Linear air supply in appliances

Series LWCD90680: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
