ImpellerØ200 mm7.9 in
Max airflow910 m³/h536 CFM
Max static pressure384 Pa1.54 in. wg
Voltage230 V
Speed2,300 rpm
Input power130 W
Noise40 dB(A)

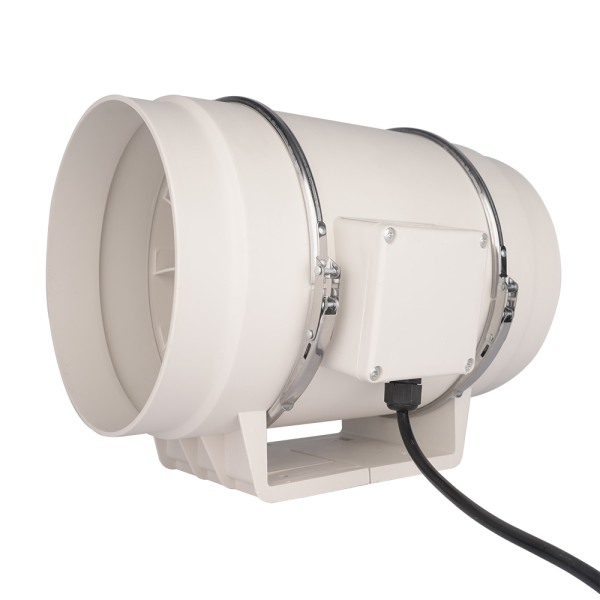

LWDA-200(8″)S-PWN-09 AC Plastic Inline Duct Fan Ø200 mm

Ø200 mm | AC | Max airflow 910 m³/h | Max static pressure 384 Pa | 40 dB(A)

SKU: LWDA-200(8")S-PWN-09 Categories: Inline Duct Fans, Plastic Inline Duct Fans

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFDatasheet (PDF)electrical & performance data

All files for LWDA-200(8")S-PWN-093 files · direct download

WEBPDimensional drawing WEBPPerformance curve

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Decentralised ventilation Building & agricultural ventilation Vertical farming All industries →

Proven in projects

Smart home ERV Range hoods, ovens & fan coils Drying, heat treatment & ovens All case studies →

Engineering files (on request)

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.

EXB2D drawing (CAXA EXB)2.7 MBRequest →

CAD models contain the blade geometry and are not publicly downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

Get a quote · LWDA-200(8")S-PWN-09

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWDA-200(8")S-PWN-09datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Performance curve (P-Q) LWDA-200(8")S-PWN-09

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 230 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

Video LWDA-200(8")S-PWN-09

AC Mixed Flow Duct Fan LWDA-200(8”)S Series: Powerful & Quiet | LWDA-315(12.6”)S-PWN-05 · open in video library

Longwell AC Plastic Duct Fans – Quality Airflow, Quiet Comfort | LWDA-200(8)S-PWN-07 · open in video library

Drawing & Curve LWDA-200(8")S-PWN-09

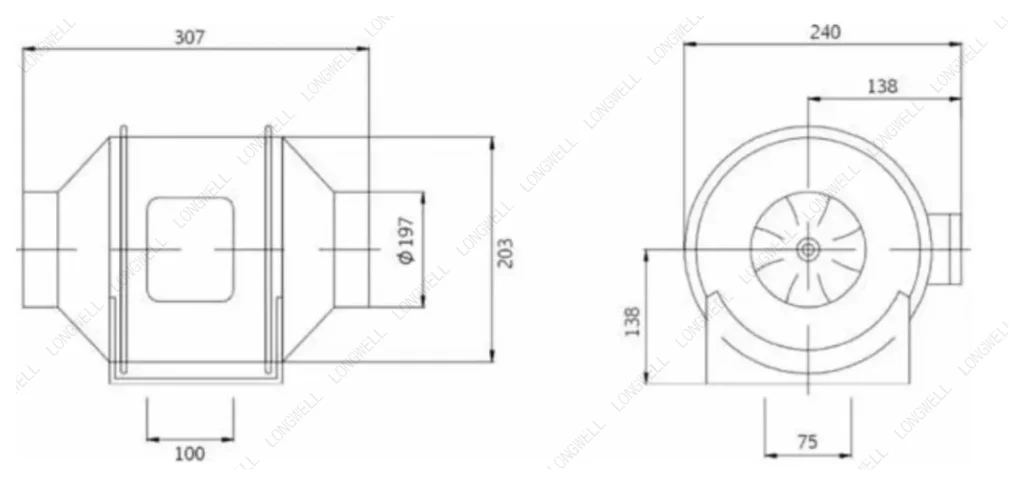

LWDA-200(8")S-PWN-09 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

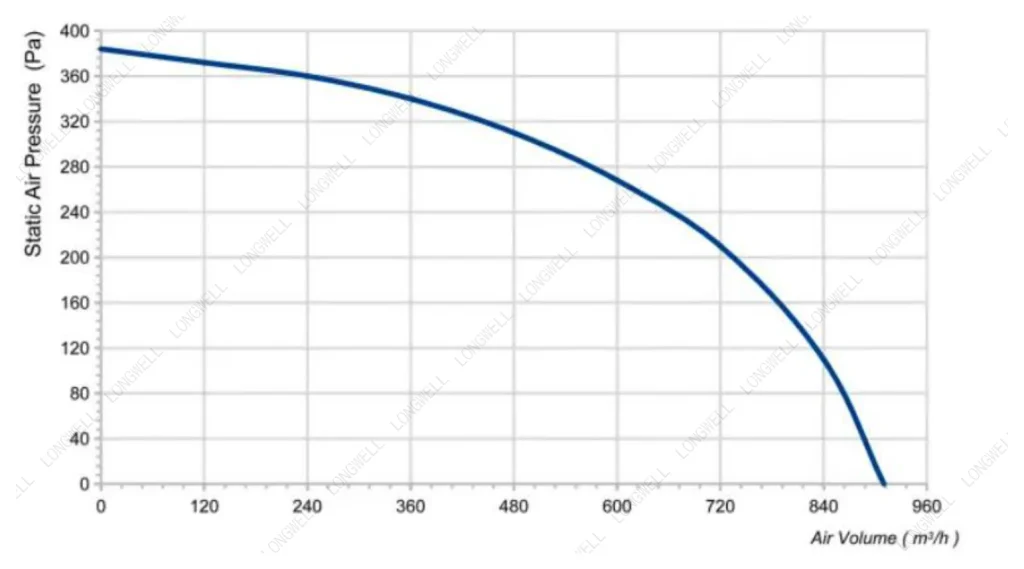

LWDA-200(8")S-PWN-09 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

Files for LWDA-200(8")S-PWN-09: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWDA-200(8")S-PWN-09

LWDA-200(8")S-PWN-09 is a LONGWELL AC Plastic Inline Duct Fan from the Plastic Inline Duct Fans range, impeller Ø200 mm, rated 230 V AC, maximum airflow 910 m³/h, maximum static pressure 384 Pa, noise 40 dB(A), input power 130 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model	LWDA-200(8")S-PWN-09
Series	LWDA200
Motor type	AC
Phase	1-phase
Rated voltage	230 V
Frequency	50 Hz
Current	0.6 A
Input power	130 W
Speed	2,300 rpm
Max. airflow	910 m³/h
Max. static pressure	384 Pa
Noise	40 dB(A)
Storage temperature	-25 ~ 60℃
Humidity	15 ~ 85% RH
Altitude	< 1000m
Impeller diameter	Ø200 mm
Inlet diameter	200mm
Balance grade	G6.3
Vibration standard	JB/T 8689
Service life	50,000Hours(L10), At 25 °Croom, humidity 15%~65%RH

Typical applications

Residential and commercial fresh-air systems
Kitchen and bathroom exhaust
Local pressurisation and booster duty
Hotel and office ventilation

Series LWDA200: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
