Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.

ImpellerØ100 mm3.9 in
Max airflow697 m³/h410 CFM
Voltage220-240 V
Speed3,350 rpm
Input power35 W
Noise51 dB(A)

LWDE-100 (4″)S-MWN-04 EC Ultra Silent Metal Duct Fan Ø100 mm

Ø100 mm | EC | Max airflow 697 m³/h | 51 dB(A)

SKU: LWDE-100 (4")S-MWN-04 Categories: Impeller Ø100–150 mm, Inline Duct Fans, Ultra Silent Duct Fans

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFRequest datasheetsent by an engineer within 1 business day

All files for LWDE-100 (4")S-MWN-041 files · direct download

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Central ventilation units Building & agricultural ventilation Vertical farming All industries →

Proven in projects

Smart home ERV Range hoods, ovens & fan coils Drying, heat treatment & ovens All case studies →

Get a quote · LWDE-100 (4")S-MWN-04

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWDE-100 (4")S-MWN-04datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

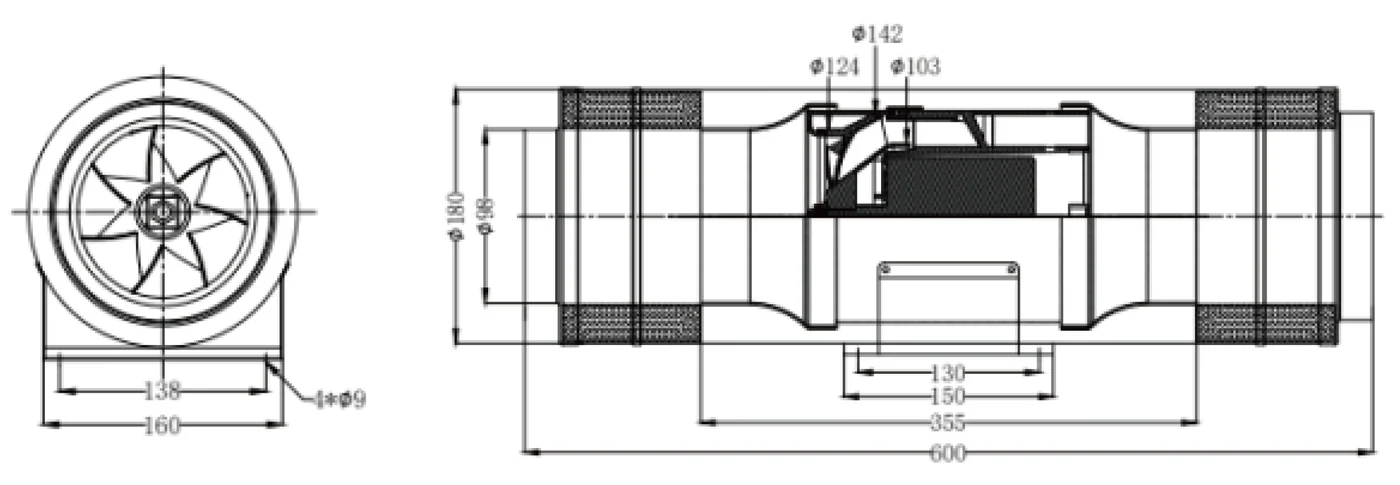

Dimensional drawing LWDE-100 (4")S-MWN-04

LWDE-100 (4")S-MWN-04 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

Files for LWDE-100 (4")S-MWN-04: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWDE-100 (4")S-MWN-04

LWDE-100 (4")S-MWN-04 is a LONGWELL EC Ultra Silent Metal Duct Fan from the Ultra Silent Duct Fans range, impeller Ø100 mm, rated 220-240 V EC, maximum airflow 697 m³/h, noise 51 dB(A), input power 35 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.

Technical data

Model	LWDE-100 (4")S-MWN-04
Series	LWDE100
Motor type	EC
Phase	1-phase
Rated voltage	220-240 V
Frequency	50 Hz
Input power	35 W
Speed	3,350 rpm
Max. airflow	697 m³/h
Noise	51 dB(A)
Impeller diameter	Ø100 mm
Inlet diameter	100mm

Typical applications

Residential and commercial fresh-air systems
Kitchen and bathroom exhaust
Local pressurisation and booster duty
Hotel and office ventilation

Series LWDE100: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
