AC Forward Curved Centrifugal Fan performance curve (shared by several models)

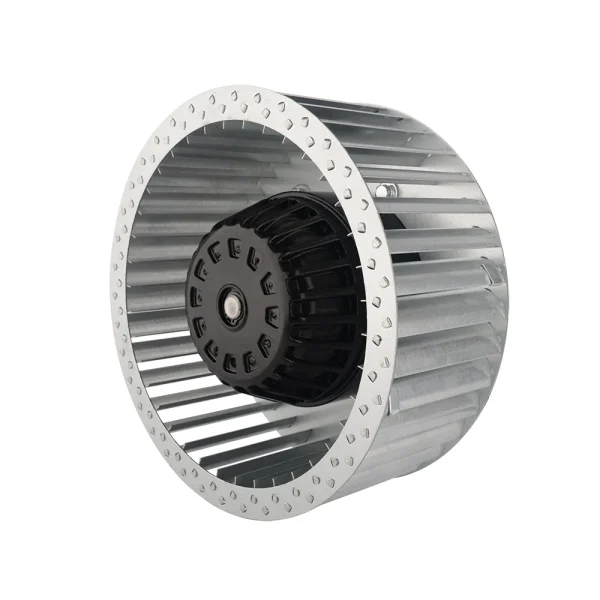

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.

ImpellerØ280 mm11.0 in
Max airflow2,318 m³/h1,364 CFM
Max static pressure247.2 Pa0.99 in. wg
Voltage220 V
Speed900 rpm
Input power450 W
Noise65 dB(A)

LWFA6E280-138NS-04 AC Forward Curved Centrifugal Fan Ø280 mm

Ø280 mm | AC | Max airflow 2,318 m³/h | Max static pressure 247.2 Pa | 65 dB(A)

SKU: LWFA6E280-138NS-04 Categories: Centrifugal Fans, Forward Curved Centrifugal Fans, Impeller Ø225–500 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueAC AC Forward Centrifugal Fan · SKU on PDF p. 11

All files for LWFA6E280-138NS-045 files · direct download

PDFFull product catalogue · model on PDF p. 11 PNGDimensional drawing WEBPPerformance curve PDFSeries catalogue

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Proven in projects

AHU & ventilation unit fans CRAH FanGrid retrofit Heat pump fan programme All case studies →

Get a quote · LWFA6E280-138NS-04

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWFA6E280-138NS-04datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Drawing & Curve LWFA6E280-138NS-04

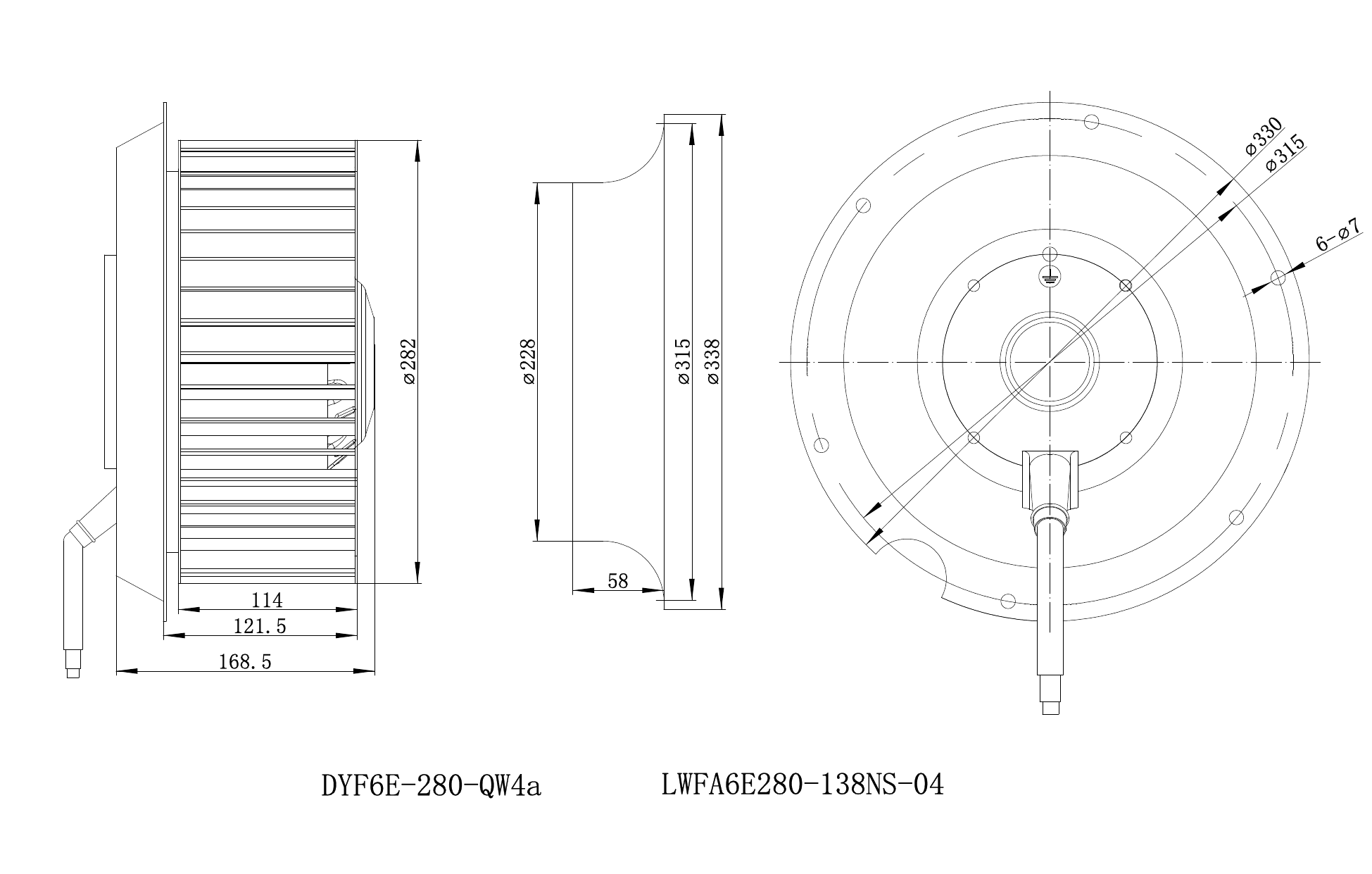

LWFA6E280-138NS-04 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

LWFA6E280-138NS-04 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

Files for LWFA6E280-138NS-04: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWFA6E280-138NS-04

LWFA6E280-138NS-04 is a LONGWELL AC Forward Curved Centrifugal Fan from the Forward Curved Centrifugal Fans range, impeller Ø280 mm, rated 220 V AC, maximum airflow 2,318 m³/h, maximum static pressure 247.2 Pa, noise 65 dB(A), input power 450 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model	LWFA6E280-138NS-04
Series	LWFA6E280
Motor type	AC
Phase	1-phase
Rated voltage	220 V
Frequency	50 Hz
Current	2.5 A
Input power	450 W
Speed	900 rpm
Max. airflow	2,318 m³/h
Max. static pressure	247.2 Pa
Noise	65 dB(A)
Ambient temperature	-30 ~ 60 °C
Impeller diameter	Ø280 mm
Rotor diameter	138 mm
Insulation class	F
Bearing	Maintenance-free ball bearings
Duty	S1

Typical applications

Air handling units (AHU) and rooftop units (RTU)
Data-center CRAH / CRAC units and fan walls
Dust extraction and process ventilation
Fan filter units and air purifiers

Series LWFA6E280: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Company certificates

Scans of original documents held by Ningbo Longwell Electric Technology Co., Ltd.: the company ISO 9001 / 14001 / 45001 management-system certificate. Click a scan to open the original.

ISO 9001 / 14001 / 45001Management systems of Ningbo Longwell Electric Technology Co., Ltd. (company certificate).

ISO 9001 / 14001 / 45001 management system certificate — LONGWELL certificate

PDFISO 9001 / 14001 / 45001 management system certificate

Need a Declaration of Conformity for this model and your destination market? Ask us — we arrange additional certification on request.

How to order LWFA6E280-138NS-04

Most first orders follow the same eight steps. Quantities, terms and lead times are confirmed in your quotation.

1SelectFind models by duty point in the selector or by model number, compare on the curve and add them to your RFQ list.
2Engineering checkWithin 1 business day you receive the duty-point check on the curve, price and lead time.
3SamplesStock models ship in 1–3 days.
4Validation supportDatasheets, drawings, wiring diagrams and DoC per model; test reports, CAD and register maps after a short project check or NDA.
5Order & paymentProforma invoice; first orders on T/T 30 / 70.
6Production & release15–30 days at the partner factory that builds your model, then inspected and released to LONGWELL standards with outgoing sampling to AQL 2.5.
7ShippingFOB / CIF / DDP by sea from Ningbo or Shanghai; express and air on EXW / FCA / DAP.
8After-sales12 months standard, extendable to 18–24 months by project agreement; test records retained for 5 years; 8D closed-loop for any issue; annual technical review for framework customers.

See terms, QC and FAQ →

Test & release at LONGWELL

Specified and drawn by LONGWELL; built to LONGWELL drawings by qualified partner factories; inspected and released to LONGWELL standards before shipment.

See test and release photos (8)

LONGWELL Semi-anechoic chamber — Semi-anechoic chamber

LONGWELL Test laboratory — Test laboratory

Test labs and all certificate scans →

Alternatives with the same impeller (Ø280 mm · AC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWFA6E280-138NS-04 this model	2,318 m³/h	247.2 Pa	900 rpm	450 W	65 dB(A)	220 V
LWBA4E280-092NS-03	1,267 m³/h	216 Pa	1,350 rpm	80 W	63 dB(A)	230 V	View
LWBA4E280-092NS-04	1,442 m³/h	288 Pa	1,500 rpm	100 W	66 dB(A)	230 V	View
LWBA2D280-092NT-02	1,700 m³/h	721 Pa	2,500 rpm	200 W	79 dB(A)	380 V	View
LWBA2E280-092NS-01	1,700 m³/h	721 Pa	2,450 rpm	230 W	79 dB(A)	230 V	View
LWBA2D280-102NT-06	1,833 m³/h	773 Pa	2,650 rpm	250 W	80 dB(A)	380 V	View
LWBA2E280-102NS-05	1,833 m³/h	773 Pa	2,650 rpm	250 W	80 dB(A)	230 V	View
LWBA2D280-102NT-08	2,163 m³/h	773 Pa	2,700 rpm	330 W	80 dB(A)	380 V	View
LWBA2E280-102NS-07	2,163 m³/h	773 Pa	2,700 rpm	330 W	80 dB(A)	230 V	View
LWFA4E280-188NS-02	2,284 m³/h	391.4 Pa	1,360 rpm	1,600 W	77 dB(A)	220 V	View
LWFA6D280-138NT-03	2,318 m³/h	247.2 Pa	900 rpm	450 W	65 dB(A)	380 V	View
LWBA2D280-138NT-09	2,678 m³/h	917 Pa	2,750 rpm	500 W	78 dB(A)	380 V	View
LWBA2D280-138NT-10	2,833 m³/h	927 Pa	2,900 rpm	680 W	80 dB(A)	380 V	View
LWFA4D280-188NT-01	3,502 m³/h	463.5 Pa	1,360 rpm	1,700 W	77 dB(A)	380 V	View
LWFA4D280-188ST-01	3,811 m³/h	463.5 Pa	1,400 rpm	1,400 W	82 dB(A)	380 V	View
