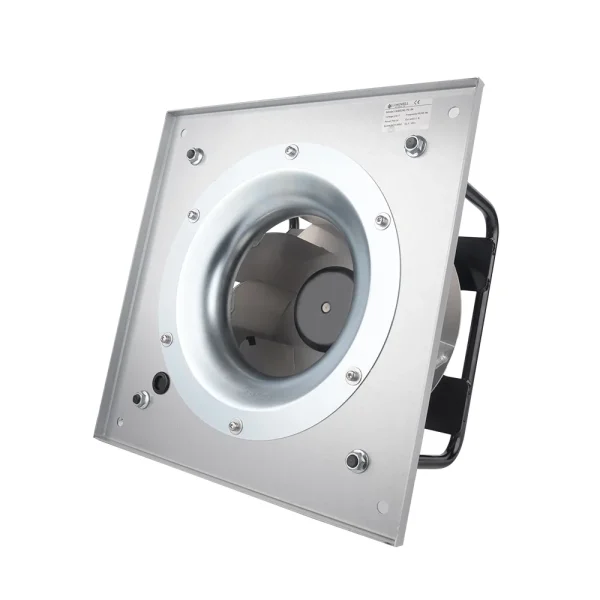

LWFE3G280-092PS-03 is a LONGWELL EC Plug Fan from the Plug Fans (RLM Plenum Fans) range, impeller Ø280 mm, rated 230 V EC, maximum airflow 2,008.5 m³/h, maximum static pressure 803.4 Pa, noise 70 dB(A), input power 225 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWFE3G280-092PS-03 |
|---|---|
| Series | LWFE3G280 |
| Motor type | EC |
| Phase | 1-phase |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Current | 1.6 A |
| Input power | 225 W |
| Speed | 2,650 rpm |
| Max. airflow | 2,008.5 m³/h |
| Max. static pressure | 803.4 Pa |
| Noise | 70 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Impeller diameter | Ø280 mm |
| Rotor diameter | 92 |
| Impeller material | Aluminum Alloy |
| Protection class | IP55 |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWFE3G280: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
