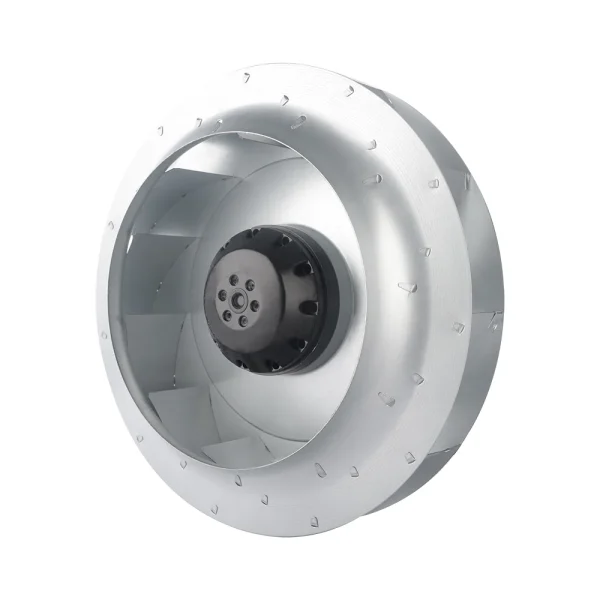

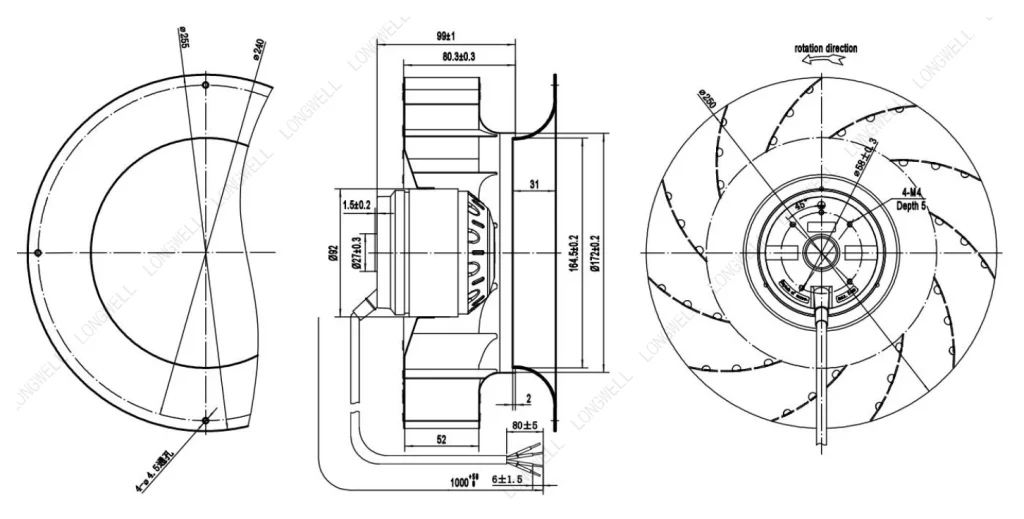

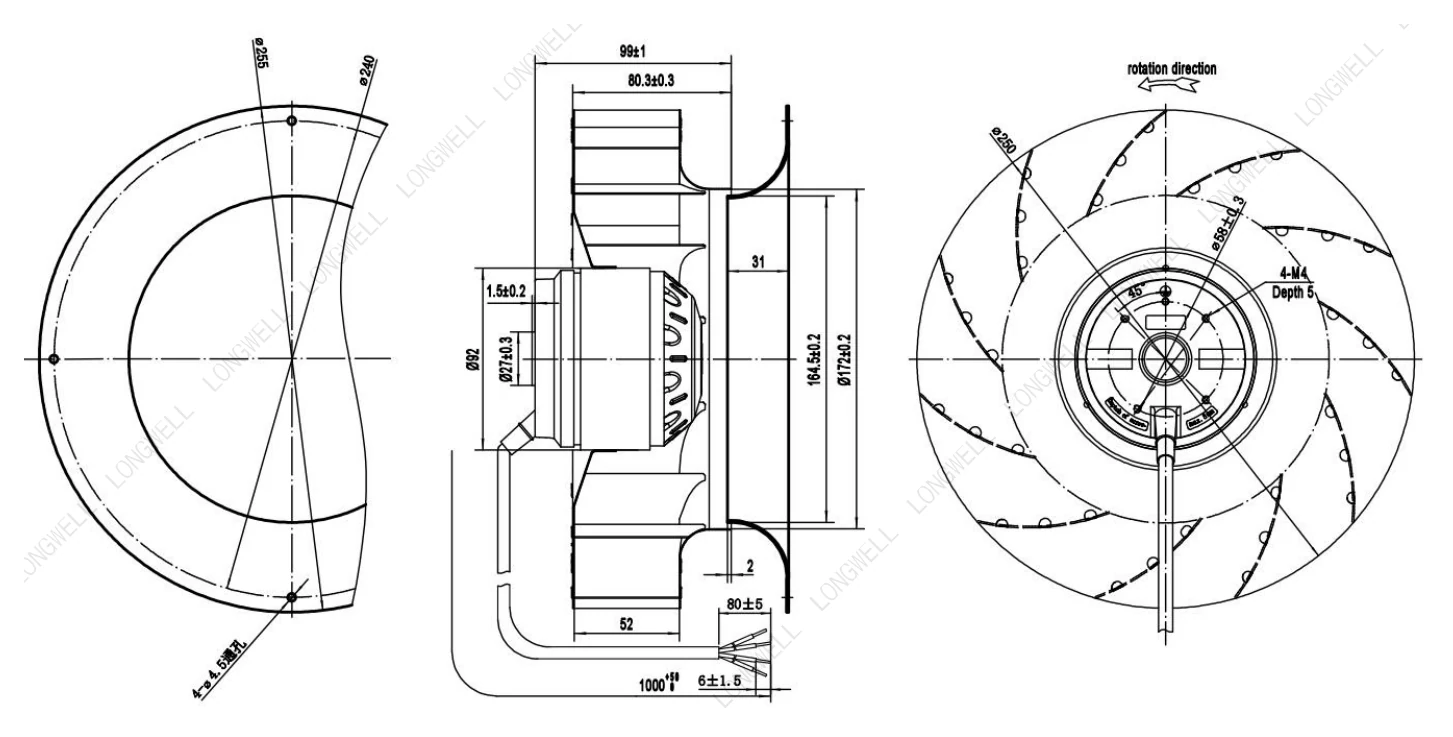

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.
- ImpellerØ250 mm9.8 in
- Max airflow1,421 m³/h836 CFM
- Max static pressure618 Pa2.48 in. wg
- Voltage380 V
- Speed2,450 rpm
- Input power150 W
- Noise76 dB(A)
LWBA2D250-092NT-15 AC Backward Curved Centrifugal Fan Ø250 mm
Ø250 mm | AC | Max airflow 1,421 m³/h | Max static pressure 618 Pa | 76 dB(A)
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · RoHS · ETL on request
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

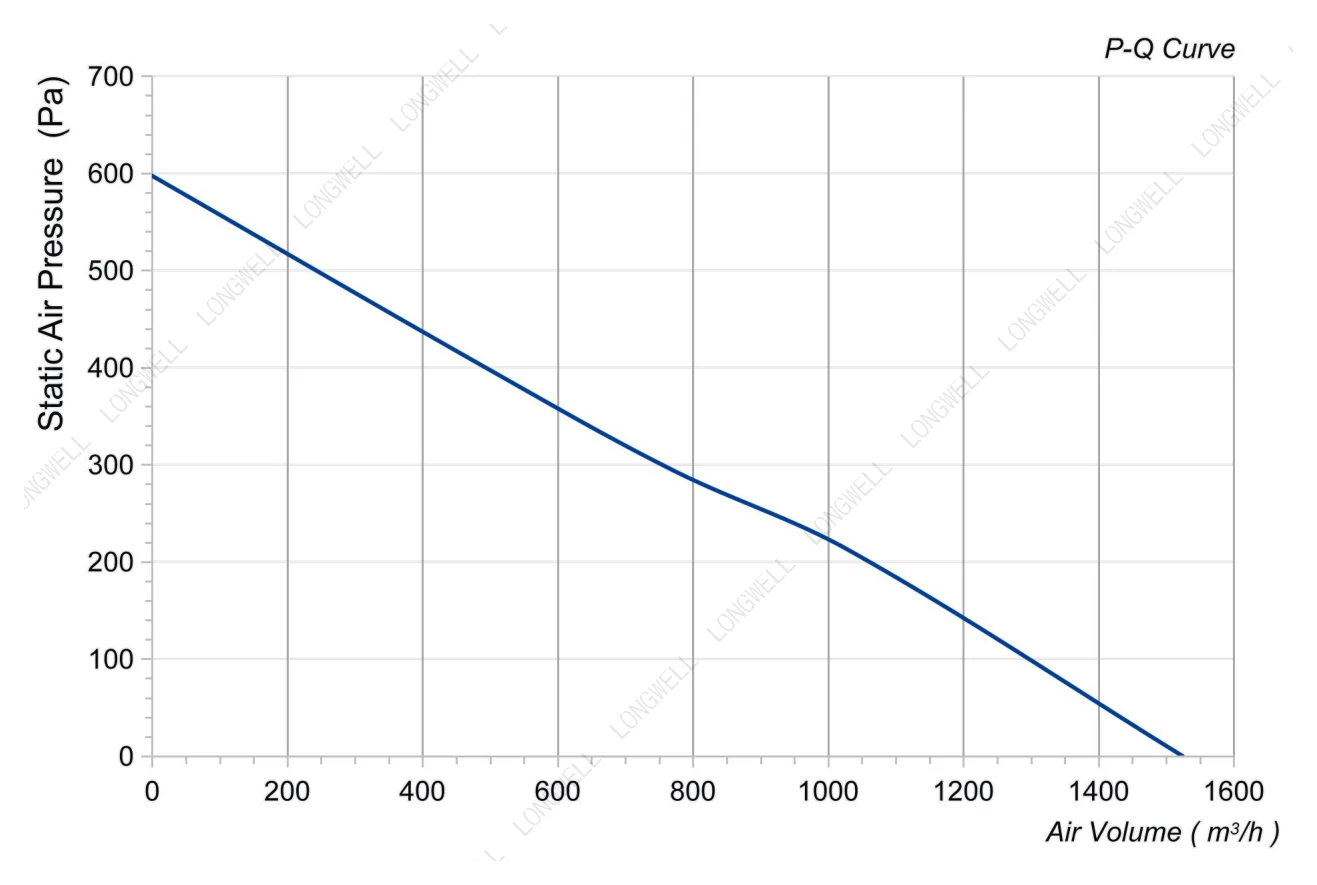

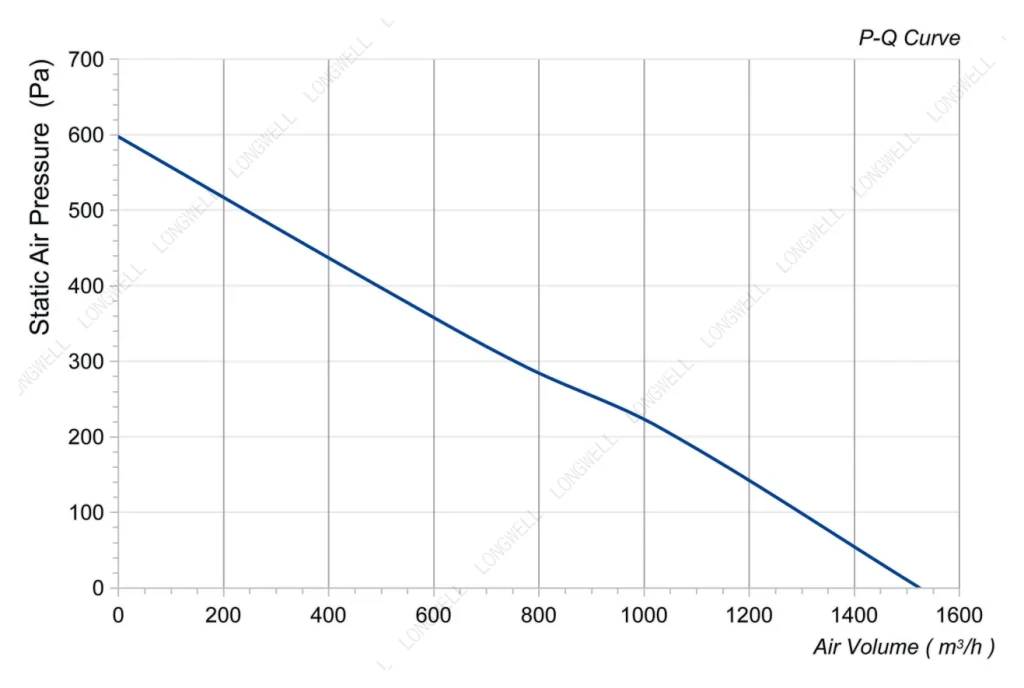

Performance curve (P-Q) LWBA2D250-092NT-15
Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 380 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

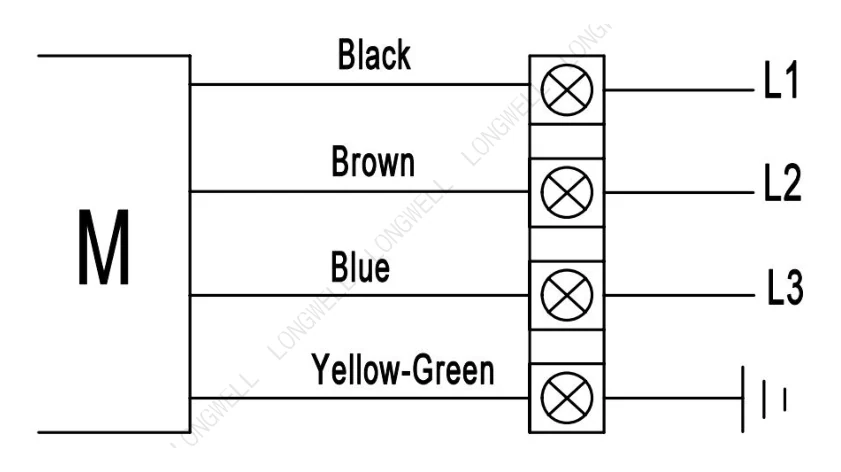

Drawing, Curve & Wiring LWBA2D250-092NT-15
Files for LWBA2D250-092NT-15: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.
Technical description LWBA2D250-092NT-15
LWBA2D250-092NT-15 is a LONGWELL AC Backward Curved Centrifugal Fan from the Backward Curved Centrifugal Fans range, impeller Ø250 mm, rated 380 V AC, maximum airflow 1,421 m³/h, maximum static pressure 618 Pa, noise 76 dB(A), input power 150 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWBA2D250-092NT-15 |
|---|---|
| Series | LWBA2D250 |
| Motor type | AC |
| Phase | 3-phase |
| Rated voltage | 380 V |
| Frequency | 50 Hz |
| Current | 0.31 A |
| Input power | 150 W |
| Speed | 2,450 rpm |
| Max. airflow | 1,421 m³/h |
| Max. static pressure | 618 Pa |
| Noise | 76 dB(A) |
| Ambient temperature | -40 ~ 65 °C |
| Storage temperature | -10 ~ 40℃ |
| Humidity | 0 ~ 95 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø250 mm |
| Rotor diameter | 92 mm |
| Impeller material | Galvanised sheet steel |
| Protection class | IP44 |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Vibration standard | JB/T 8689 |
| Service life | 30,000Hours(L10), At 40 °Croom, humidity 15%~65%RH. Balancing According to JB/T 9101-1999 requirements G6.3 Vibration of the fan Test method accord with JB/T 8689 Installation method Horizontal or vertical installation Mate |
| Rotation | Clockwise,seen on rotor |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWBA2D250: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
