ImpellerØ250 mm9.8 in
Max airflow2,369 m³/h1,394 CFM
Max static pressure406.85 Pa1.63 in. wg
Voltage380 V
Speed1,400 rpm
Input power870 W1.17 hp
Noise72 dB(A)

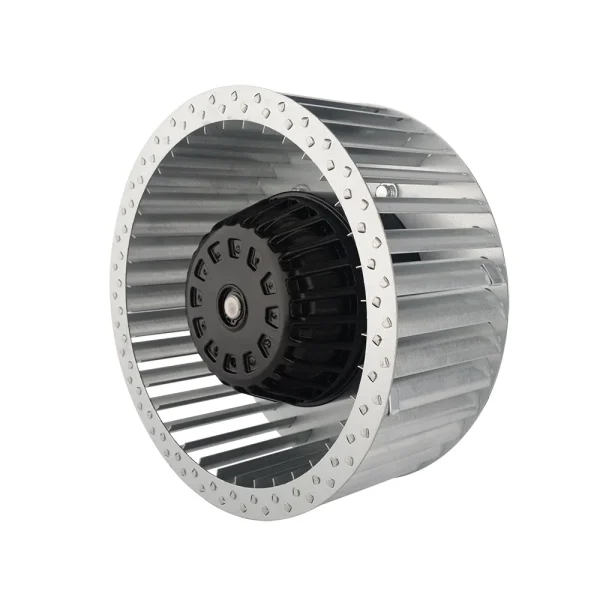

LWFA4D250-138NT-01 AC Forward Curved Centrifugal Fan Ø250 mm

Ø250 mm | AC | Max airflow 2,369 m³/h | Max static pressure 406.85 Pa | 72 dB(A)

SKU: LWFA4D250-138NT-01 Categories: Centrifugal Fans, Forward Curved Centrifugal Fans, Impeller Ø225–500 mm

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · ETL · RoHS

View RFQ →

Get a quote · LWFA4D250-138NT-01

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Datasheet (PDF)electrical & performance data All files for LWFA4D250-138NT-01drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Drawings & downloads
Technical description

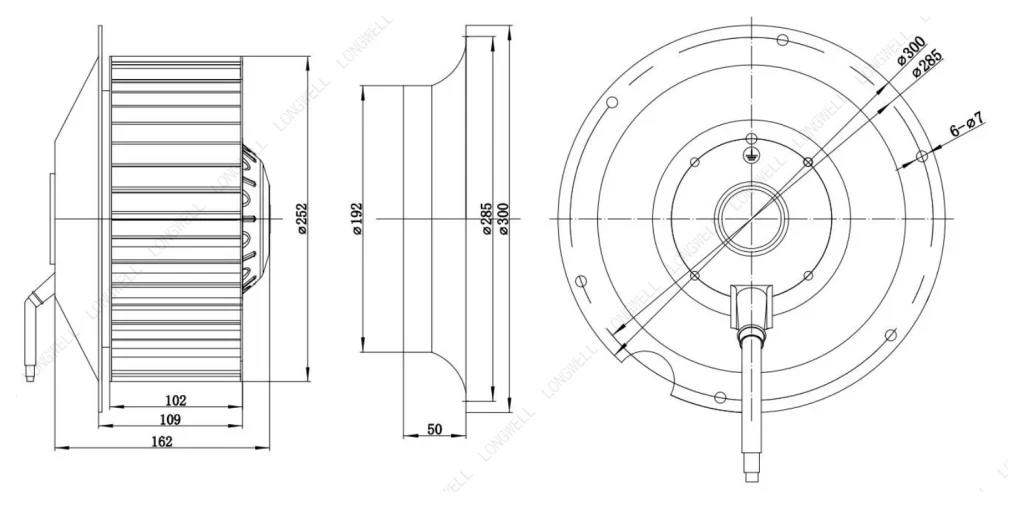

LWFA4D250-138NT-01 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

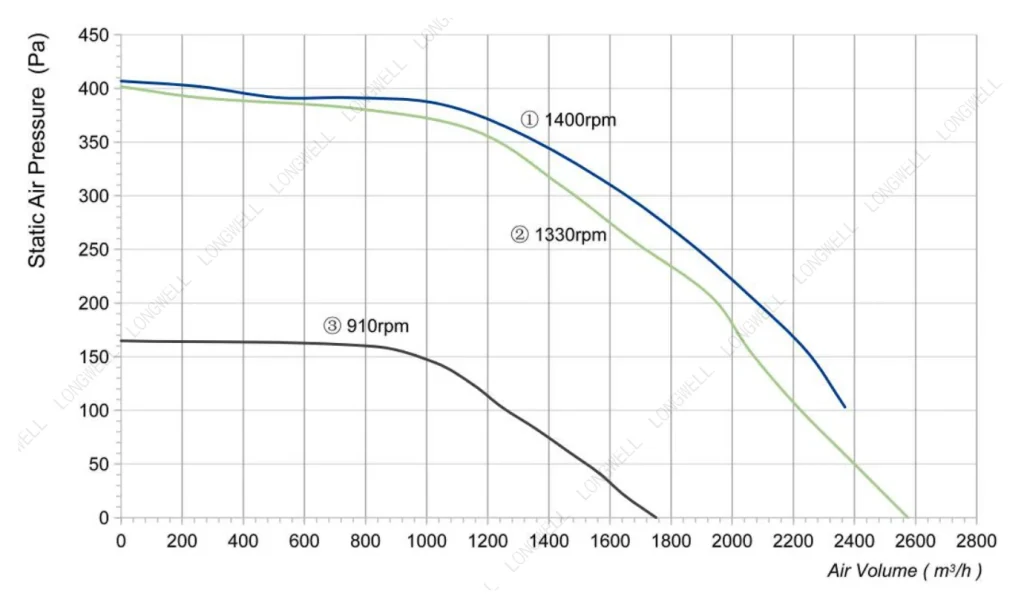

LWFA4D250-138NT-01 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

LWFA4D250-138NT-01 Wiring diagram — **Wiring diagram**Lead colours and terminal assignment; TK = motor thermal contact.

Downloads for LWFA4D250-138NT-01

PDFDatasheet

Need a non-standard size or another format? Ask an engineer or search the download center.

LWFA4D250-138NT-01 is a LONGWELL AC Forward Curved Centrifugal Fan from the Forward Curved Centrifugal Fans range, impeller Ø250 mm, rated 380 V AC, maximum airflow 2,369 m³/h, maximum static pressure 406.85 Pa, noise 72 dB(A), input power 870 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model	LWFA4D250-138NT-01
Series	LWFA4D250
Motor type	AC
Phase	3-phase
Rated voltage	380 V
Frequency	50 Hz
Current	1.8 A
Input power	870 W
Speed	1,400 rpm
Max. airflow	2,369 m³/h
Max. static pressure	406.85 Pa
Noise	72 dB(A)
Ambient temperature	-30 ~ 60 °C
Storage temperature	-30 ~ 70℃
Humidity	0 ~ 85 % RH
Altitude	< 1000m
Impeller diameter	Ø250 mm
Rotor diameter	138
Impeller material	Galvanised sheet steel ( Impeller )
Insulation class	F
Bearing	Maintenance-free ball bearings
Duty	S1
Balance grade	G6.3
Vibration standard	JB/T 8689
Service life	25,000Hours(L10), At 40 °Croom, humidity 15%~65%RH

Typical applications

Air handling units (AHU) and rooftop units (RTU)
Data-center CRAH / CRAC units and fan walls
Dust extraction and process ventilation
Fan filter units and air purifiers

Series LWFA4D250: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø250 mm · AC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWFA4D250-138NT-01 this model	2,369 m³/h	406.85 Pa	1,400 rpm	870 W	72 dB(A)	380 V
