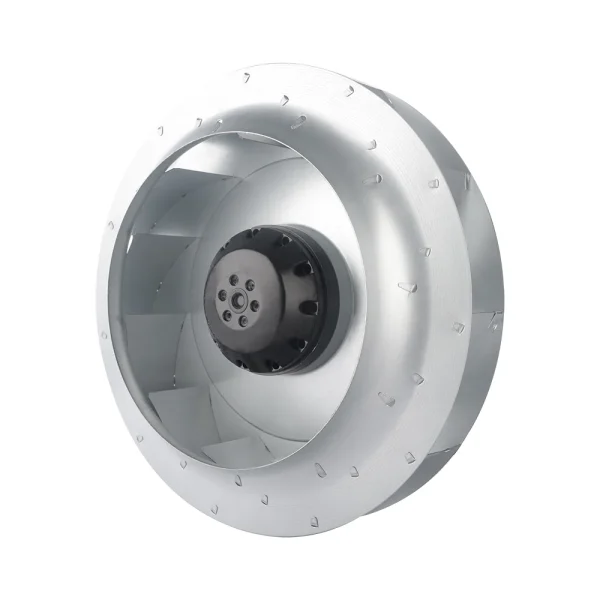

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.
- ImpellerØ250 mm9.8 in
- Max airflow1,004 m³/h591 CFM
- Max static pressure221 Pa0.89 in. wg
- Voltage230 V
- Speed1,600 rpm
- Input power60 W
- Noise70 dB(A)
LWBA4E250-092NS-18 AC Backward Curved Centrifugal Fan Ø250 mm
Ø250 mm | AC | Max airflow 1,004 m³/h | Max static pressure 221 Pa | 70 dB(A)
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · RoHS · ETL on request
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
Performance curve (P-Q) LWBA4E250-092NS-18
Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 230 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

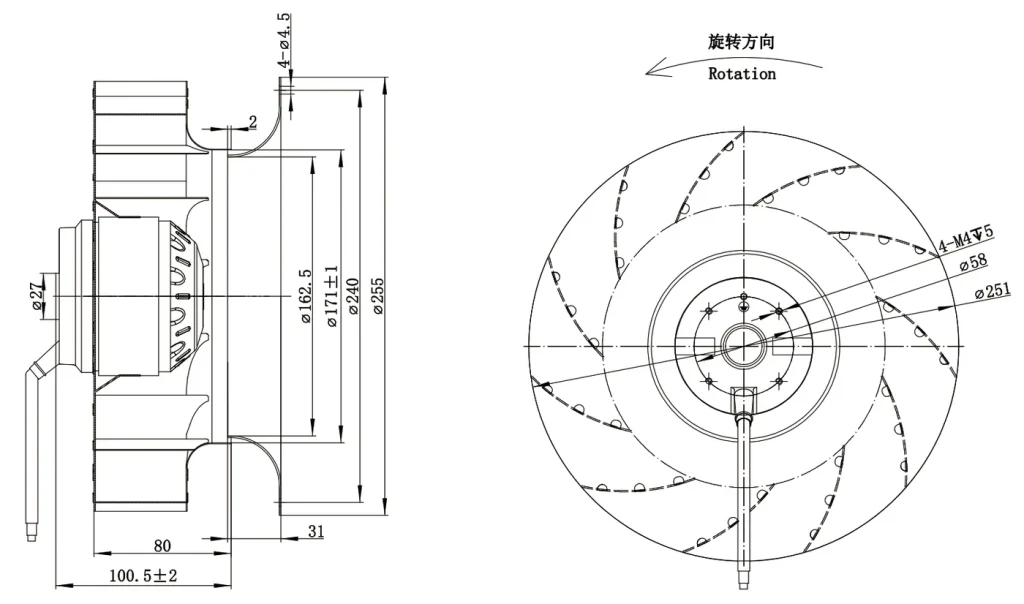

Dimensional drawing LWBA4E250-092NS-18
Files for LWBA4E250-092NS-18: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.
Technical description LWBA4E250-092NS-18
LWBA4E250-092NS-18 is a LONGWELL AC Backward Curved Centrifugal Fan from the Backward Curved Centrifugal Fans range, impeller Ø250 mm, rated 230 V AC, maximum airflow 1,004 m³/h, maximum static pressure 221 Pa, noise 70 dB(A), input power 60 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWBA4E250-092NS-18 |
|---|---|
| Series | LWBA4E250 |
| Motor type | AC |
| Phase | 1-phase |
| Rated voltage | 230 V |
| Frequency | 60 Hz |
| Current | 0.27 A |
| Input power | 60 W |
| Speed | 1,600 rpm |
| Max. airflow | 1,004 m³/h |
| Max. static pressure | 221 Pa |
| Noise | 70 dB(A) |
| Ambient temperature | -40 ~ 65 °C |
| Impeller diameter | Ø250 mm |
| Rotor diameter | 92 mm |
| Impeller material | Galvanised sheet steel |
| Protection class | IP44 |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Rotation | Clockwise,seen on rotor |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWBA4E250: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
