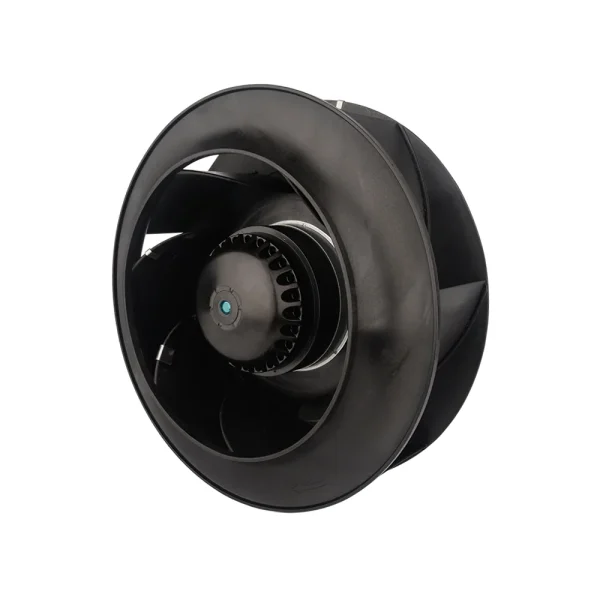

LWBA4D250-092NT-03 product photo
  • ImpellerØ250 mm9.8 in
  • Max airflow700 m³/h412 CFM
  • Max static pressure180 Pa0.72 in. wg
  • Voltage380 V
  • Speed1,400 rpm
  • Input power53 W
  • Noise61 dB(A)

LWBA4D250-092NT-03 AC Backward Curved Centrifugal Fan Ø250 mm

Ø250 mm | AC | Max airflow 700 m³/h | Max static pressure 180 Pa | 61 dB(A)

SKU: LWBA4D250-092NT-03 Categories: , ,
  • Factory direct
  • OEM / ODM
  • Samples in 1–3 days
  • Production 15–30 days
  • 18-month warranty
  • CE · ETL · RoHS
View RFQ →

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

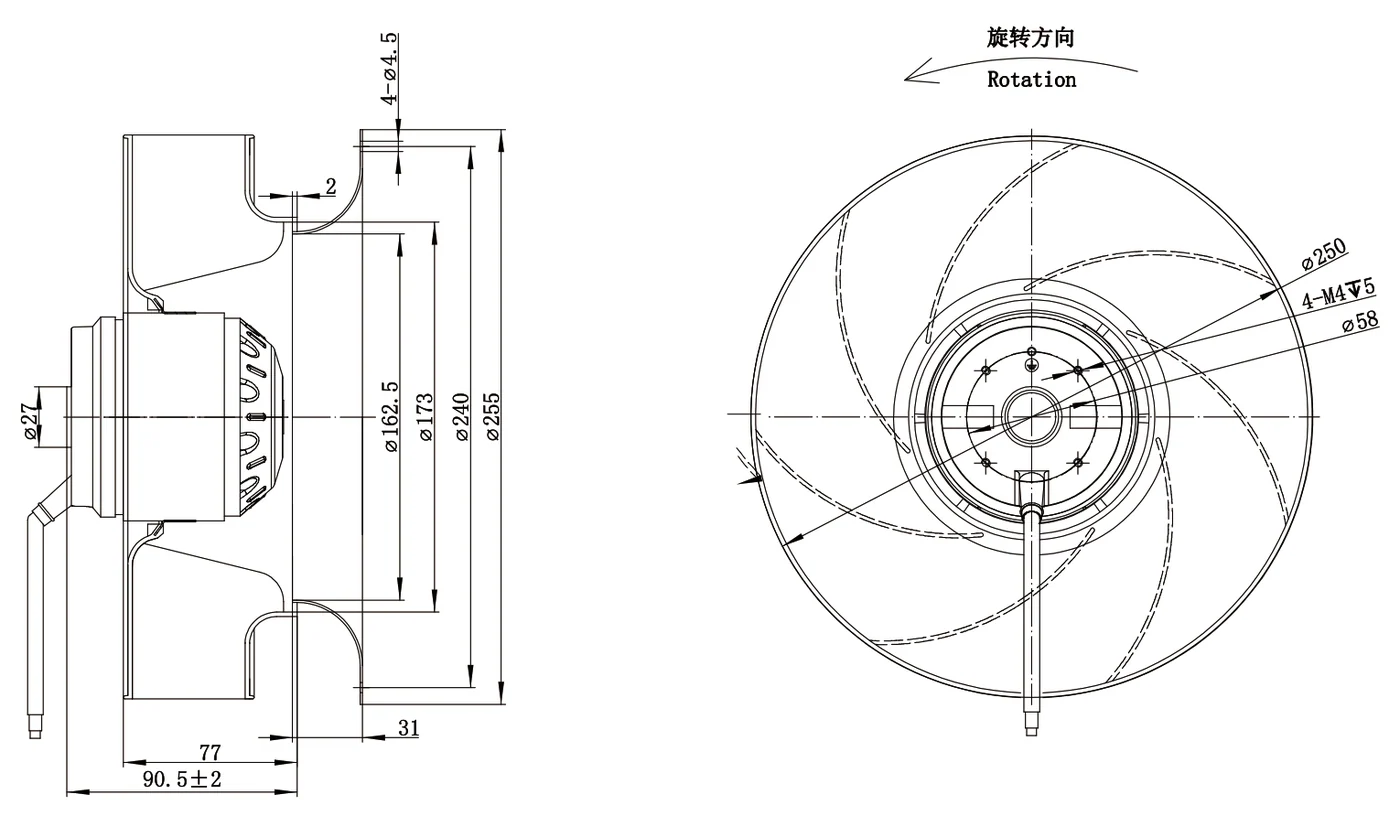

Dimensional drawingDimensions in mm. Confirm against the final approval drawing before machining cut-outs.
LWBA4D250-092NT-03 Dimensional drawing

Downloads for LWBA4D250-092NT-03

PDFDatasheet · 1.8 MB

Need a non-standard size or another format? Ask an engineer or search the download center.

LWBA4D250-092NT-03 is a LONGWELL AC Backward Curved Centrifugal Fan from the Backward Curved Centrifugal Fans range, impeller Ø250 mm, rated 380 V AC, maximum airflow 700 m³/h, maximum static pressure 180 Pa, noise 61 dB(A), input power 53 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model LWBA4D250-092NT-03
Series LWBA4D250
Motor type AC
Phase 3-phase
Rated voltage 380 V
Frequency 50 Hz
Current 0.15 A
Input power 53 W
Speed 1,400 rpm
Max. airflow 700 m³/h
Max. static pressure 180 Pa
Noise 61 dB(A)
Ambient temperature -40 ~ 65 °C
Impeller diameter Ø250 mm
Rotor diameter 92
Impeller material Plastic PA66
Protection class IP44
Insulation class F
Bearing Maintenance-free ball bearings
Duty S1
Rotation Clockwise,seen on rotor

Typical applications

  • Air handling units (AHU) and rooftop units (RTU)
  • Data-center CRAH / CRAC units and fan walls
  • Dust extraction and process ventilation
  • Fan filter units and air purifiers

Series LWBA4D250: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø250 mm · AC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

ModelMax airflowMax static pressureSpeedPowerNoiseVoltage
LWBA4D250-092NT-03 this model 700 m³/h180 Pa 1,400 rpm53 W61 dB(A)380 V
LWA-250(10")U(S)M-01 28 m³/hsee curve 1,350 rpm80 W—110-120 V View
LWA-250(10")U(S)M-02 48 m³/hsee curve 2,800 rpm230 W—110-120 V View
LWDA-250S-MBN-10 1,034 m³/h515 Pa 2,615 rpm165 W71 dB(A)230 V View
LWDA-250 (10")U-MWN-01 1,219 m³/hsee curve 3,000 rpm228 W69 dB(A)110-120 V View
LWDA-250 (10")U-MWN-03 1,219 m³/hsee curve 3,000 rpm228 W62 dB(A)110-120 V View
LWDA-250(8'')S-PWN-05 1,600 m³/h420 Pa 2,500 rpm175 W50 dB(A)230 V View
LWFA6E250-102NS-04 1,751 m³/h164.8 Pa 900 rpm320 W62 dB(A)220 V View
LWFA6D250-102NT-03 1,751 m³/h164.8 Pa 910 rpm320 W62 dB(A)380 V View
LWDA-250 (10")S-MWN-02 1,900 m³/hsee curve 2,750 rpm162 W68 dB(A)220-240 V View
LWDA-250 (10")S-MWN-04 1,900 m³/hsee curve 2,750 rpm162 W60 dB(A)220-240 V View
LWFA-E-250-02 2,100 m³/h215 Pa ——64 dB(A)— View
LWA-250(10")U(S)M-03 2,100 m³/h215 Pa 2,800 rpm250 W—110-120 V View
LWDA-250(10")S-MWN-06 2,100 m³/h215 Pa 2,800 rpm100 W65 dB(A)220 V View
LWFA-E-250-01 2,500 m³/h380 Pa ——70 dB(A)— View

Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
