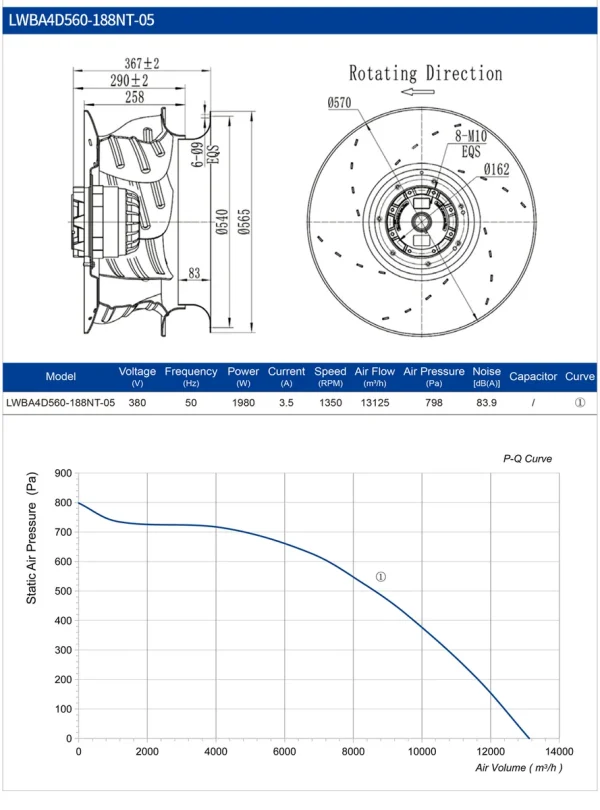

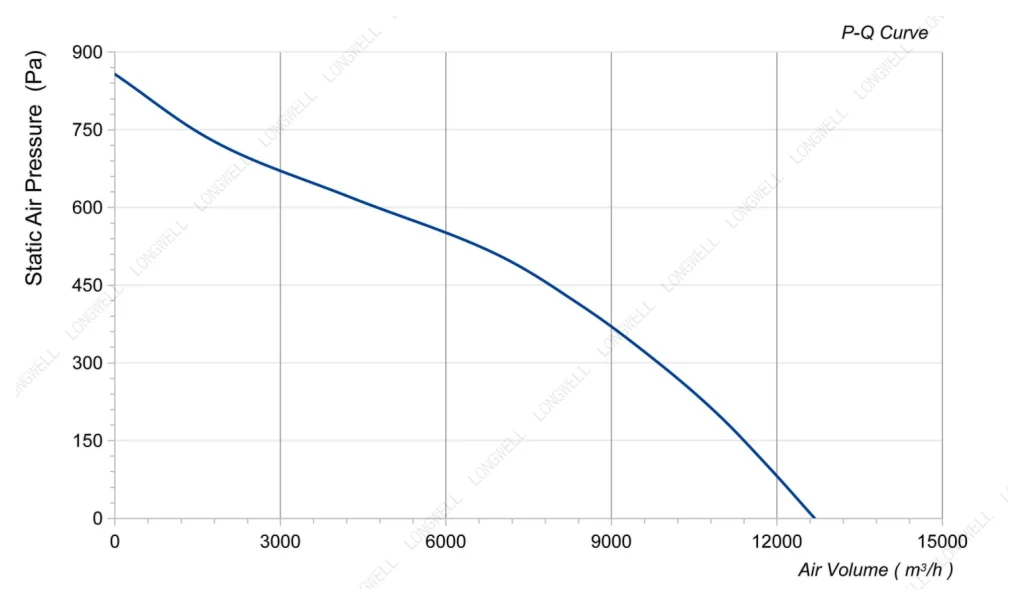

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ560 mm22.0 in
- Max airflow13,125 m³/h7,460 CFM
- Max static pressure798 Pa3.20 in. wg
- Voltage380 V
- Speed1,350 rpm
- Input power1,980 W2.65 hp
- Noise83.9 dB(A)

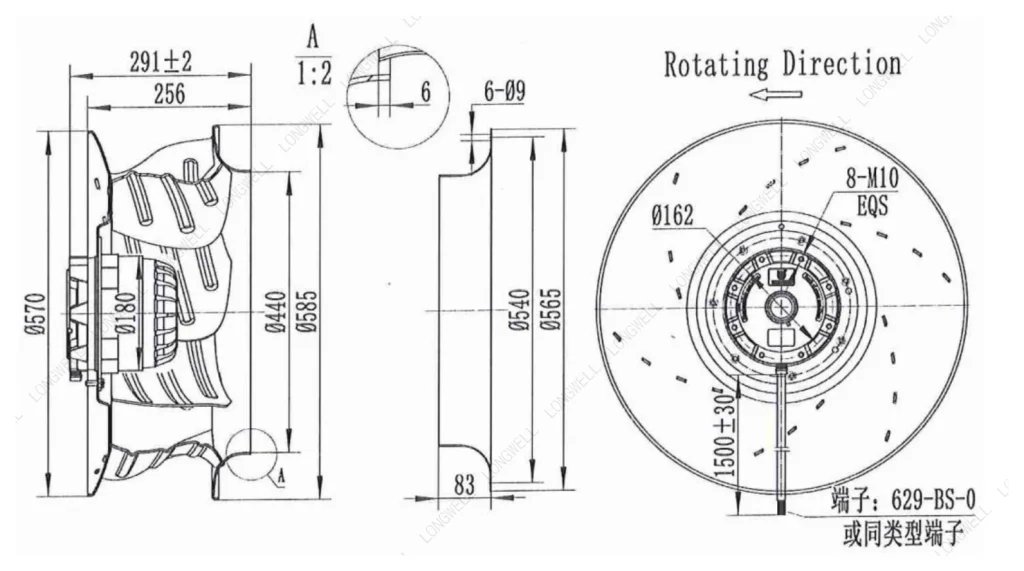

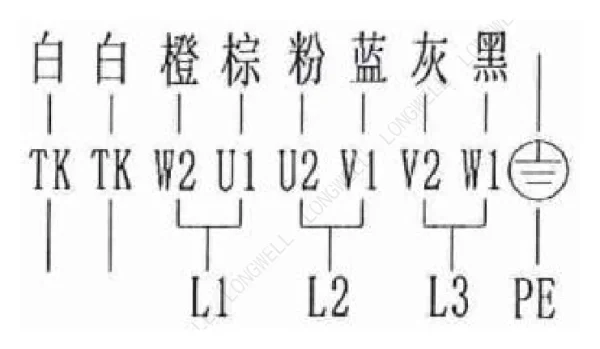

LWBA4D560-188NT-05 AC Backward Curved Centrifugal Fan Ø560 mm
Ø560 mm | AC | Max airflow 13,125 m³/h | Max static pressure 798 Pa | 83.9 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · RoHS · ETL on request
Engineering files (on request)
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.
Downloads for LWBA4D560-188NT-05
PDFDatasheetNeed a non-standard size or another format? Ask an engineer or search the download center.
LWBA4D560-188NT-05 is a LONGWELL AC Backward Curved Centrifugal Fan from the Backward Curved Centrifugal Fans range, impeller Ø560 mm, rated 380 V AC, maximum airflow 13,125 m³/h, maximum static pressure 798 Pa, noise 83.9 dB(A), input power 1,980 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWBA4D560-188NT-05 |
|---|---|
| Series | LWBA4D560 |
| Motor type | AC |
| Phase | 3-phase |
| Rated voltage | 380 V |
| Frequency | 50 Hz |
| Current | 3.5 A |
| Input power | 1,980 W |
| Speed | 1,350 rpm |
| Max. airflow | 13,125 m³/h |
| Max. airflow (CFM) | 7,460 CFM |
| Max. static pressure | 798 Pa |
| Noise | 83.9 dB(A) |
| Ambient temperature | -40 ~ 55 °C |
| Storage temperature | -50 ~ 70℃ |
| Humidity | 0 ~ 85 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø560 mm |
| Rotor diameter | 188 |
| Impeller material | Aluminum Alloy( Impeller ) |
| Protection class | IP54 |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 40,000Hours(L10), At 40 °Croom, humidity 15%~65%RH |
| Rotation | Clockwise,seen on rotor |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWBA4D560: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø560 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWBA4D560-188NT-05 this model | 13,125 m³/h | 798 Pa | 1,350 rpm | 1,980 W | 83.9 dB(A) | 380 V | |
| LWBA6D560-188NT-04 | 9,270 m³/h | 464 Pa | 910 rpm | 900 W | 73 dB(A) | 380 V | View |
| LWBA6D560-188NT-02 | 9,270 m³/h | 464 Pa | 910 rpm | 900 W | 73 dB(A) | 380 V | View |
| LWBA4D560-188NT-03 | 11,330 m³/h | 948 Pa | 1,350 rpm | 2,500 W | 85 dB(A) | 380 V | View |
| LWBA4D560-188NT-01 | 13,287 m³/h | 948 Pa | 1,340 rpm | 2,500 W | 85 dB(A) | 380 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
