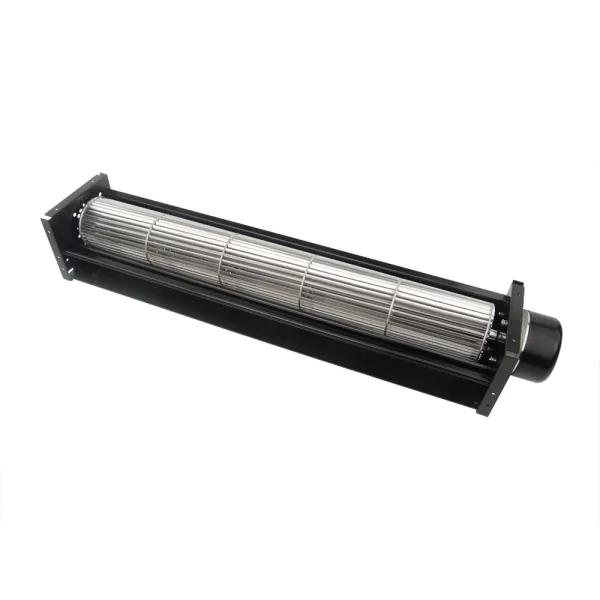

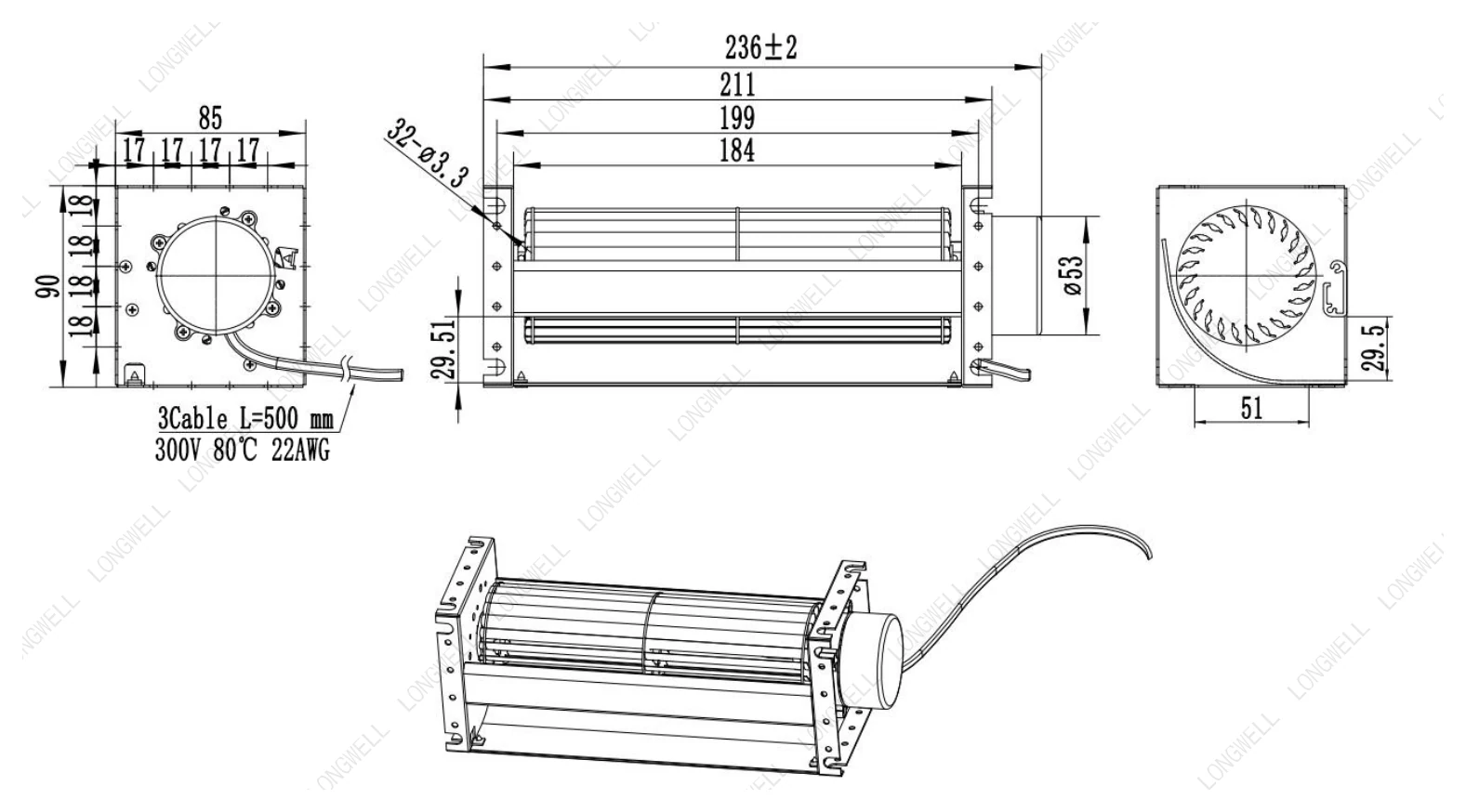

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.
- ImpellerØ60 mm2.4 in
- Max airflow152 m³/h89 CFM
- Max static pressure29 Pa0.12 in. wg
- Voltage24 V
- Speed2,000 rpm
- Input power9.6 W
- Noise38 dB(A)
LWCD-60180MN-07 DC Cross Flow Fan Ø60 mm
Ø60 mm | DC | Max airflow 152 m³/h | Max static pressure 29 Pa | 38 dB(A)
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · ETL · RoHS
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not publicly downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.
Video LWCD-60180MN-07
LWCD-60180MN-07 — construction, airflow path and running condition.

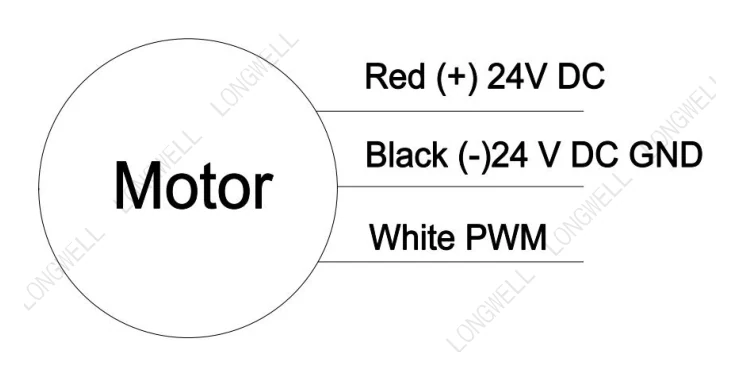

Drawing & Wiring LWCD-60180MN-07
Files for LWCD-60180MN-07: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.
Technical description LWCD-60180MN-07
LWCD-60180MN-07 is a LONGWELL DC Cross Flow Fan from the DC Cross Flow Fans range, impeller Ø60 mm, rated 24 V DC, maximum airflow 152 m³/h, maximum static pressure 29 Pa, noise 38 dB(A), input power 9.6 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.
Technical data
| Model | LWCD-60180MN-07 |
|---|---|
| Series | LWCD60180 |
| Motor type | DC |
| Inlet | Single inlet |
| Rated voltage | 24 V |
| Current | 0.4 A |
| Input power | 9.6 W |
| Speed | 2,000 rpm |
| Max. airflow | 152 m³/h |
| Max. airflow (CFM) | 89 CFM |
| Max. static pressure | 29 Pa |
| Noise | 38 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Storage temperature | -25~60℃ |
| Humidity | 0 ~ 90 % RH |
| Impeller diameter | Ø60 mm |
| Outlet length | 184mm |
| Impeller material | Aluminum alloy |
| Insulation class | B |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Vibration standard | JB/T8689 |
Typical applications
- Indoor air-conditioning units
- Air curtains and door air barriers
- Elevator and cabinet ventilation
- Linear air supply in appliances
Series LWCD60180: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Product-line certificates
Scans of original documents held by Ningbo Longwell Electric Technology Co., Ltd.: the company ISO management-system certificate and the certificates whose model list covers this model. Click a scan to open the original.
ISO 9001 / 14001 / 45001Management systems of Ningbo Longwell Electric Technology Co., Ltd. (company certificate).
PDFISO 9001 / 14001 / 45001 management system certificateETLIntertek Authorization to Mark, control no. 5022563; the covered model ranges are stated on the document.
PDFETL Authorization to Mark · report 220400509HAN-001 · LWCD DC cross-flow fansNeed a Declaration of Conformity for this model and your destination market? Ask us — we arrange additional certification on request.
How to order LWCD-60180MN-07
Most first orders follow the same eight steps. Quantities, terms and lead times are confirmed in your quotation.
- 1SelectFind models by duty point in the selector or by model number, compare on the curve and add them to your RFQ list.
- 2Engineering checkWithin 1 business day you receive the duty-point check on the curve, price and lead time.
- 3SamplesStock models ship in 1–3 days.
- 4Validation supportDatasheets, drawings, wiring diagrams and DoC per model; test reports, CAD and register maps after a short project check or NDA.
- 5Order & paymentProforma invoice; first orders on T/T 30 / 70.
- 6Production & release15–30 days at the partner factory that builds your model, then inspected and released to LONGWELL standards with outgoing sampling to AQL 2.5.
- 7ShippingFOB / CIF / DDP by sea from Ningbo or Shanghai; express and air on EXW / FCA / DAP.
- 8After-sales12 months standard, extendable to 18–24 months by project agreement; test records retained for 5 years; 8D closed-loop for any issue; annual technical review for framework customers.
Test & release at LONGWELL
Specified and drawn by LONGWELL; built to LONGWELL drawings by qualified partner factories; inspected and released to LONGWELL standards before shipment.
See test and release photos (8)
Alternatives with the same impeller (Ø60 mm · DC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWCD-60180MN-07 this model | 152 m³/h | 29 Pa | 2,000 rpm | 9.6 W | 38 dB(A) | 24 V | |
| LWCD-60300MN-07 | 207 m³/h | 34 Pa | 2,000 rpm | 11.04 W | 41 dB(A) | 24 V | View |
| LWCD-60300LN-06 | 207 m³/h | 34 Pa | 2,000 rpm | 9.6 W | 41 dB(A) | 12 V | View |
| LWCD-60360MN-07 | 240 m³/h | 34 Pa | 2,000 rpm | 12.24 W | 42 dB(A) | 24 V | View |
| LWCD-60360LN-06 | 240 m³/h | 34 Pa | 2,000 rpm | 11.4 W | 42 dB(A) | 12 V | View |
| LWCD-60420MN-07 | 355 m³/h | 35 Pa | 2,000 rpm | 12.72 W | 43 dB(A) | 24 V | View |
| LWCD-60420LN-06 | 355 m³/h | 35 Pa | 2,000 rpm | 1.32 W | 43 dB(A) | 12 V | View |
| LWCD-60520MN-06 | 414 m³/h | 28 Pa | 1,800 rpm | 24.9 W | 45 dB(A) | 24 V | View |
| LWCD-60610MN-06 | 486 m³/h | 29 Pa | 1,800 rpm | 26.4 W | 46 dB(A) | 24 V | View |
| LWCD-60640MN-06 | 510 m³/h | 29 Pa | 1,800 rpm | 27.12 W | 47 dB(A) | 24 V | View |
| LWCD-60700MN-06 | 558 m³/h | 30 Pa | 1,800 rpm | 28.08 W | 47 dB(A) | 24 V | View |
| LWCD-60750MN-06 | 597 m³/h | 31 Pa | 1,800 rpm | 28.8 W | 48 dB(A) | 24 V | View |
| LWCD-60870MN-06 | 693 m³/h | 32 Pa | 1,800 rpm | 30 W | 50 dB(A) | 24 V | View |
| LWCD-601100MN-06 | 857 m³/h | 34 Pa | 1,800 rpm | 31.2 W | 51 dB(A) | 24 V | View |
| LWCD-601300MN-06 | 1,012 m³/h | 35 Pa | 1,800 rpm | 32.64 W | 52 dB(A) | 24 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
Other models in the LWCD60180 seriesSame impeller, different speed grade or wiring
Adjacent sizesOne size up when airflow is short, one size down when it is too much
