ImpellerØ160 mm6.3 in
Max airflow690 m³/h406 CFM
Max static pressure520 Pa2.09 in. wg
Voltage230 V
Speed2,750 rpm
Input power85 W
Noise68 dB(A)

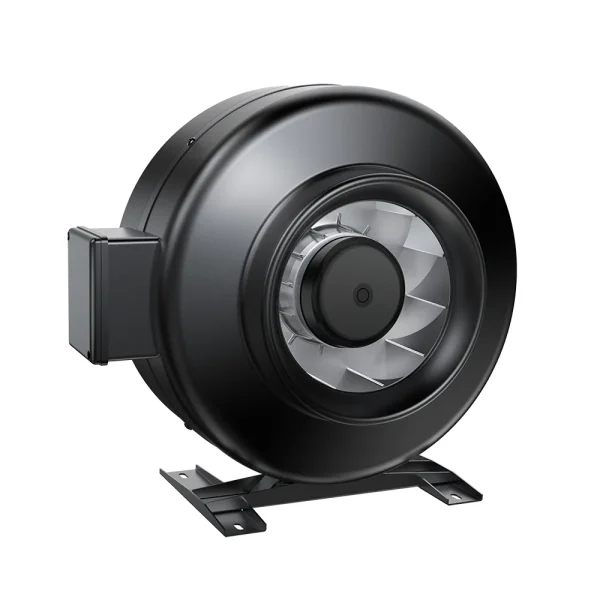

LWDE-160S-MBN-01 EC Metal Inline Duct Fan Ø160 mm

Ø160 mm | EC | Max airflow 690 m³/h | Max static pressure 520 Pa | 68 dB(A)

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · ETL · RoHS

View RFQ →

Engineering files (on request)

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.

STP3D model (STEP)8.6 MBRequest →

CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

Get a quote · LWDE-160S-MBN-01

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Datasheet (PDF)electrical & performance data All files for LWDE-160S-MBN-01drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

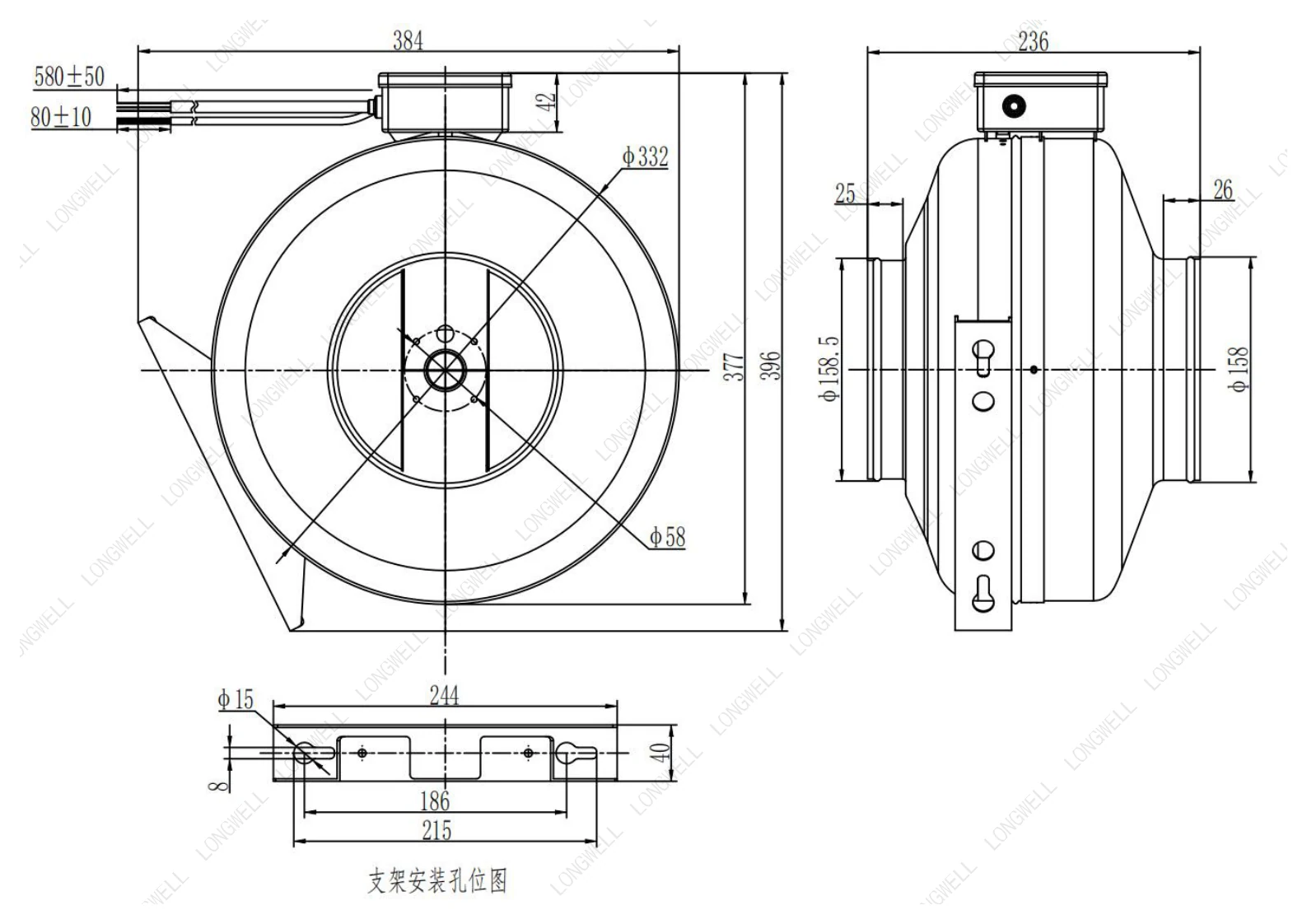

LWDE-160S-MBN-01 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

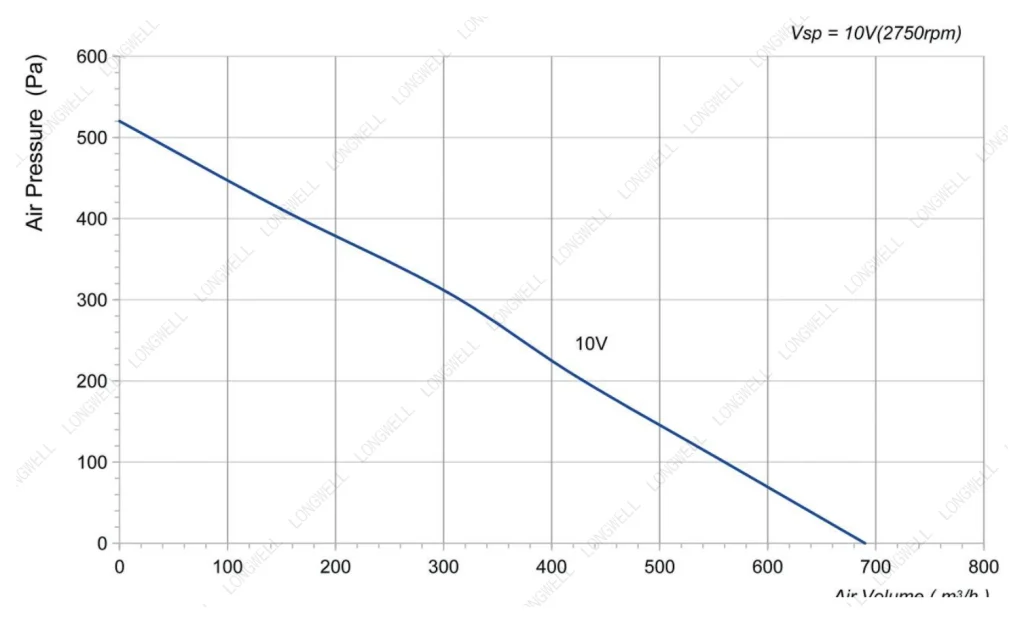

LWDE-160S-MBN-01 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

LWDE-160S-MBN-01 Wiring diagram — **Wiring diagram**Lead colours and terminal assignment; TK = motor thermal contact.

Downloads for LWDE-160S-MBN-01

PDFDatasheet

Need a non-standard size or another format? Ask an engineer or search the download center.

LWDE-160S-MBN-01 is a LONGWELL EC Metal Inline Duct Fan from the Metal Inline Duct Fans range, impeller Ø160 mm, rated 230 V EC, maximum airflow 690 m³/h, maximum static pressure 520 Pa, noise 68 dB(A), input power 85 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.

Technical data

Model	LWDE-160S-MBN-01
Series	LWDE160
Motor type	EC
Phase	1-phase
Rated voltage	230 V
Frequency	50 Hz
Current	0.65 A
Input power	85 W
Speed	2,750 rpm
Max. airflow	690 m³/h
Max. static pressure	520 Pa
Noise	68 dB(A)
Storage temperature	-25 ~ 70℃
Humidity	0 ~ 85 % RH
Altitude	< 1000m
Impeller diameter	Ø160 mm
Inlet diameter	160mm
Impeller material	PA66+GF ( Impeller )
Protection class	IP55
Insulation class	B
Service life	40,000Hours(L10), At 40 °Croom, humidity 15%~65%RH

Typical applications

Residential and commercial fresh-air systems
Kitchen and bathroom exhaust
Local pressurisation and booster duty
Hotel and office ventilation

Series LWDE160: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø160 mm · EC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWDE-160S-MBN-01 this model	690 m³/h	520 Pa	2,750 rpm	85 W	68 dB(A)	230 V
LWFE3G160-072SS-03	597 m³/h	876 Pa	2,760 rpm	115 W	67 dB(A)	230 V	View
LWFE3G160-072NS-01	639 m³/h	906 Pa	1,800 rpm	115 W	64 dB(A)	230 V	View
LWFE3G160-072SS-06	639 m³/h	906 Pa	1,800 rpm	115 W	64 dB(A)	230 V	View
LWFE3G160-072NS-02	649 m³/h	989 Pa	3,050 rpm	155 W	68 dB(A)	230 V	View
LWFE3G160-072SS-04	649 m³/h	989 Pa	3,050 rpm	155 W	68 dB(A)	230 V	View
LWFE3G160-092SS-02	666 m³/h	773 Pa	1,905 rpm	143 W	—	230 V	View
LWFE3G160-072SS-07	670 m³/h	979 Pa	3,050 rpm	170 W	67 dB(A)	230 V	View
LWFE3G160-092SS-01	680 m³/h	556 Pa	2,500 rpm	240 W	72 dB(A)	230 V	View
LWFE3G160-092NS-03	803 m³/h	927 Pa	3,300 rpm	230 W	75 dB(A)	230 V	View
LWFE3G160-092SS-05	803 m³/h	927 Pa	3,300 rpm	230 W	75 dB(A)	230 V	View
LWFE3G160-092SS-08	814 m³/h	824 Pa	3,370 rpm	230 W	73 dB(A)	230 V	View
