- ImpellerØ350 mm
- Max airflow6,200 m³/h
- Voltage220-240 V
- Speed2,800 rpm
- Input power659 W
- Noise77 dB(A)

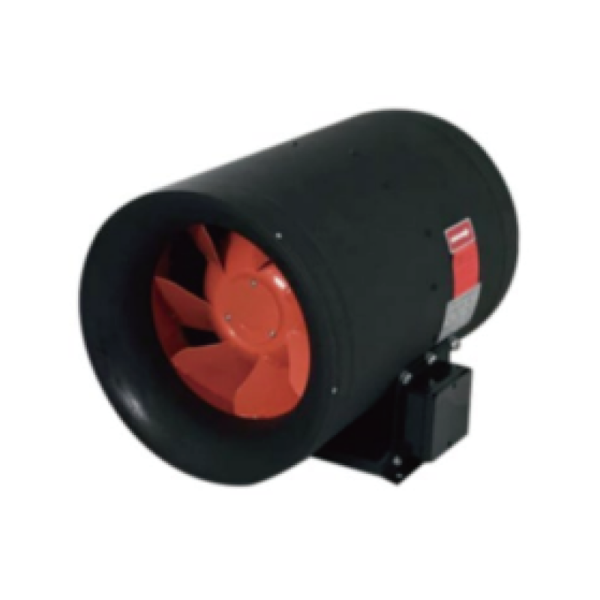

LWDE-350 (14″)S-MWN-02 EC Mixed Flow Fan Ø350 mm
Ø350 mm | EC | Max airflow 6,200 m³/h | 77 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
LWDE-350 (14")S-MWN-02 is a LONGWELL EC Mixed Flow Fan from the Mixed Flow Fans range, impeller Ø350 mm, rated 220-240 V EC, maximum airflow 6,200 m³/h, noise 77 dB(A), input power 659 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWDE-350 (14")S-MWN-02 |
|---|---|
| Series | LWDE350 |
| Motor type | EC |
| Phase | 1-phase |
| Rated voltage | 220-240 V |
| Frequency | 50 Hz |
| Input power | 659 W |
| Speed | 2,800 rpm |
| Max. airflow | 6,200 m³/h |
| Noise | 77 dB(A) |
| Impeller diameter | Ø350 mm |
| Inlet diameter | 350mm |
Typical applications
- Residential and commercial fresh-air systems
- Kitchen and bathroom exhaust
- Local pressurisation and booster duty
- Hotel and office ventilation
Series LWDE350: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø350 mm · EC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWDE-350 (14")S-MWN-02 this model | 6,200 m³/h | see curve | 2,800 rpm | 659 W | 77 dB(A) | 220-240 V | |
| LWAE3G350ST-5MEW-08 | 2,884 m³/h | 150 Pa | 1,600 rpm | 150 W | 66 dB(A) | 220/230 V | View |
| LWAE3G350SS-5MEW-07 | 2,884 m³/h | 150 Pa | 1,600 rpm | 150 W | 66 dB(A) | 220/230 V | View |
| LWAE3G350ST-5PNW-02 | 3,451 m³/h | 128 Pa | 1,800 rpm | 175 W | 65 dB(A) | 220/230 V | View |
| LWAE3G350ST-5PGW-06 | 3,451 m³/h | 128 Pa | 1,800 rpm | 175 W | 65 dB(A) | 220/230 V | View |
| LWAE3G350ST-5PEW-04 | 3,451 m³/h | 128 Pa | 1,800 rpm | 175 W | 65 dB(A) | 220/230 V | View |
| LWAE3G350SS-5PNW-01 | 3,451 m³/h | 128 Pa | 1,800 rpm | 175 W | 65 dB(A) | 220/230 V | View |
| LWAE3G350SS-5PGW-05 | 3,451 m³/h | 128 Pa | 1,800 rpm | 175 W | 65 dB(A) | 220/230 V | View |
| LWAE3G350SS-5PEW-03 | 3,451 m³/h | 128 Pa | 1,800 rpm | 175 W | 65 dB(A) | 220/230 V | View |
| LWDE-350 (14")U-MWN-01 | 3,467 m³/h | see curve | 2,800 rpm | 659 W | 77 dB(A) | 110-120 V | View |
| LWAE3G350SS-5PEW-09 | 3,554 m³/h | 144 Pa | 1,600 rpm | 164 W | 62 dB(A) | 230 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
