- ImpellerØ350 mm13.8 in
- Max airflow60 m³/h35 CFM
- Voltage110-120 V
- Speed1,350 rpm
- Input power140 W

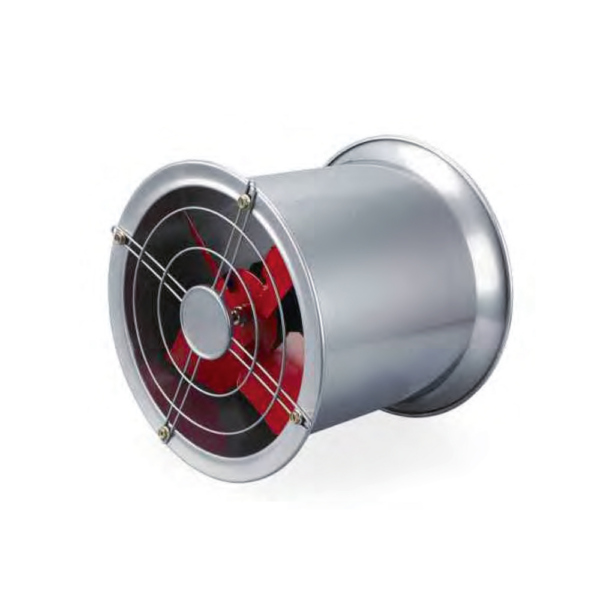

LWA-350(14″)U(S)M-01 Tube Axial Fan Ø350 mm
Ø350 mm | AC | Max airflow 60 m³/h
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · RoHS · ETL on request
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
Catalogue table LWA-350(14")U(S)M-01
Files for LWA-350(14")U(S)M-01: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.
Technical description LWA-350(14")U(S)M-01
LWA-350(14")U(S)M-01 is a LONGWELL Tube Axial Fan from the Tube Axial Fans range, impeller Ø350 mm, rated 110-120 V AC, maximum airflow 60 m³/h, input power 140 W.
Technical data
| Model | LWA-350(14")U(S)M-01 |
|---|---|
| Motor type | AC |
| Phase | 1-phase |
| Rated voltage | 110-120 V |
| Frequency | 50 Hz |
| Input power | 140 W |
| Speed | 1,350 rpm |
| Max. airflow | 60 m³/h |
| Impeller diameter | Ø350 mm |
| Blade diameter | 350mm |
Typical applications
- Condensers, evaporators and dry coolers
- Heat-pump and chiller outdoor units
- Building and workshop ventilation
- Cooling towers and transformer cooling
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Company certificates
Scans of original documents held by Ningbo Longwell Electric Technology Co., Ltd.: the company ISO 9001 / 14001 / 45001 management-system certificate. Click a scan to open the original.
ISO 9001 / 14001 / 45001Management systems of Ningbo Longwell Electric Technology Co., Ltd. (company certificate).
PDFISO 9001 / 14001 / 45001 management system certificateNeed a Declaration of Conformity for this model and your destination market? Ask us — we arrange additional certification on request.
How to order LWA-350(14")U(S)M-01
Most first orders follow the same eight steps. Quantities, terms and lead times are confirmed in your quotation.
- 1SelectFind models by duty point in the selector or by model number, compare on the curve and add them to your RFQ list.
- 2Engineering checkWithin 1 business day you receive the duty-point check on the curve, price and lead time.
- 3SamplesStock models ship in 1–3 days.
- 4Validation supportDatasheets, drawings, wiring diagrams and DoC per model; test reports, CAD and register maps after a short project check or NDA.
- 5Order & paymentProforma invoice; first orders on T/T 30 / 70.
- 6Production & release15–30 days at the partner factory that builds your model, then inspected and released to LONGWELL standards with outgoing sampling to AQL 2.5.
- 7ShippingFOB / CIF / DDP by sea from Ningbo or Shanghai; express and air on EXW / FCA / DAP.
- 8After-sales12 months standard, extendable to 18–24 months by project agreement; test records retained for 5 years; 8D closed-loop for any issue; annual technical review for framework customers.
Test & release at LONGWELL
Specified and drawn by LONGWELL; built to LONGWELL drawings by qualified partner factories; inspected and released to LONGWELL standards before shipment.
See test and release photos (8)
Alternatives with the same impeller (Ø350 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWA-350(14")U(S)M-01 this model | 60 m³/h | see curve | 1,350 rpm | 140 W | — | 110-120 V | |
| LWA-350(14")U(S)M-02 | 65 m³/h | see curve | 1,350 rpm | 160 W | — | 110-120 V | View |
| LWA-350(14")U(S)M-03 | 98 m³/h | see curve | 2,800 rpm | 550 W | — | 110-120 V | View |
| LWAA6E350S-5MEB-05 | 1,607 m³/h | see curve | 950 rpm | 75 W | 53 dB(A) | 220/230 V | View |
| LWAA6D350S-5MEB-07 | 1,607 m³/h | see curve | 920 rpm | 70 W | 53 dB(A) | 380 V | View |
| LWAA6E350S-5MEB-06 | 1,854 m³/h | see curve | 1,100 rpm | 83 W | 54 dB(A) | 220/230 V | View |
| LWAA6D350S-5MEB-08 | 1,854 m³/h | see curve | 1,050 rpm | 80 W | 54 dB(A) | 380 V | View |
| LWAA4E350S-5MEB-17 | 2,493 m³/h | see curve | 1,380 rpm | 150 W | — | 220 V | View |
| LWAA4D350S-5MEW-18 | 2,575 m³/h | see curve | 1,400 rpm | 150 W | — | 380 V | View |
| LWAA4E350S-5MKB-13 | 3,348 m³/h | see curve | 1,350 rpm | 155 W | 55 dB(A) | 220/230 V | View |
| LWAA4E350S-5MEB-09 | 3,348 m³/h | see curve | 1,350 rpm | 155 W | 55 dB(A) | 220/230 V | View |
| LWAA4E350S-5MKB-16 | 3,760 m³/h | see curve | 1,500 rpm | 200 W | 58 dB(A) | 380 V | View |
| LWAA4E350S-5MKB-14 | 3,760 m³/h | see curve | 1,500 rpm | 200 W | 58 dB(A) | 220/230 V | View |
| LWAA4E350S-5MEB-10 | 3,760 m³/h | see curve | 1,500 rpm | 200 W | 58 dB(A) | 220/230 V | View |
| LWA-350(14")U(S)M-04 | 5,500 m³/h | 250 Pa | 2,800 rpm | 750 W | — | 110-120 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
Adjacent sizesOne size up when airflow is short, one size down when it is too much
LWEA355S(T)M-160EØ355 mm · 6,542 m³/h · 373 Pa · ACadjacent size
LWEA355S(T)M-159EØ355 mm · 3,265 m³/h · 93 Pa · ACadjacent size
LWA-350S(T)M-05EØ340 mm · 4,840 m³/h · 550 Pa · ACadjacent size
LWAE3G315ST-5PEW-04Ø315 mm · 2,575 m³/h · 164 Pa · ECadjacent size
LWMFAF315-01Ø315 mm · 3,300 m³/h · 1,050 Pa · ACadjacent size
LWAE3G315SS-5PNW-01Ø315 mm · 2,575 m³/h · 164 Pa · ECadjacent sizeAlternatives at a similar dutySimilar airflow, different construction or motor platform
LWAD8025HD-0980 mm · 60 m³/h · 23 Pa · DCsimilar duty
LWAD8025MD-0980 mm · 60 m³/h · 23 Pa · DCsimilar duty
LWAD8025LD-0980 mm · 60 m³/h · 23 Pa · DCsimilar duty
LWAD6025LH-0360 mm · 60 m³/h · 125 Pa · DCsimilar duty
LWAD6025HH-0360 mm · 60 m³/h · 125 Pa · DCsimilar duty
LWAD6025MH-0360 mm · 60 m³/h · 125 Pa · DCsimilar dutySee all Axial Fans · select by duty point
