ImpellerØ350 mm13.8 in
Max airflow2,493 m³/h1,467 CFM
Voltage220 V
Speed1,380 rpm
Input power150 W

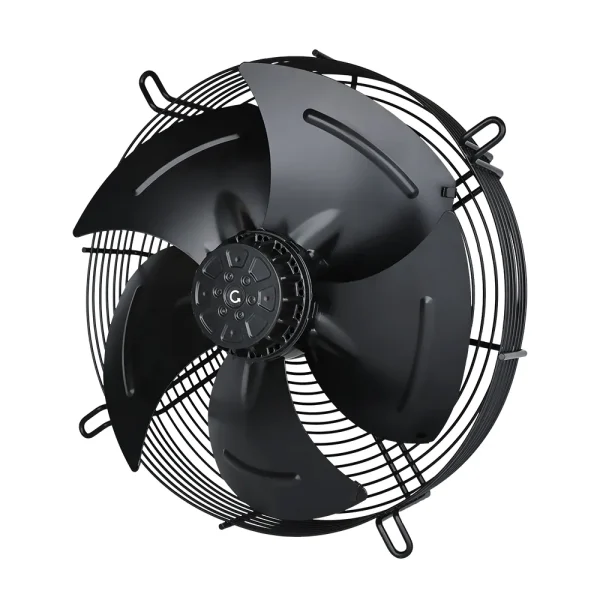

LWAA4E350S-5MEB-17 AC Axial Fan Ø350 mm

Ø350 mm | AC | Max airflow 2,493 m³/h

SKU: LWAA4E350S-5MEB-17 Categories: AC Axial Fans, Axial Fans, Impeller Ø295–450 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFDatasheet (PDF)electrical & performance data

All files for LWAA4E350S-5MEB-176 files · direct download

PNGDimensional drawing WEBPPerformance curve PNGWiring diagram PDFDrawing DOCXDatasheet

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Heat exchangers & condensers Refrigeration Condensing units Refrigeration condensers All industries →

Proven in projects

Heat pump fan programme Telecom & power cabinet cooling Cold chain supermarket retrofit Dry-type transformer cooling All case studies →

Engineering files (on request)

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.

STEP3D model (STEP)9.8 MBRequest →

CAD models contain the blade geometry and are not publicly downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

Get a quote · LWAA4E350S-5MEB-17

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWAA4E350S-5MEB-17datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Drawing, Curve & Wiring LWAA4E350S-5MEB-17

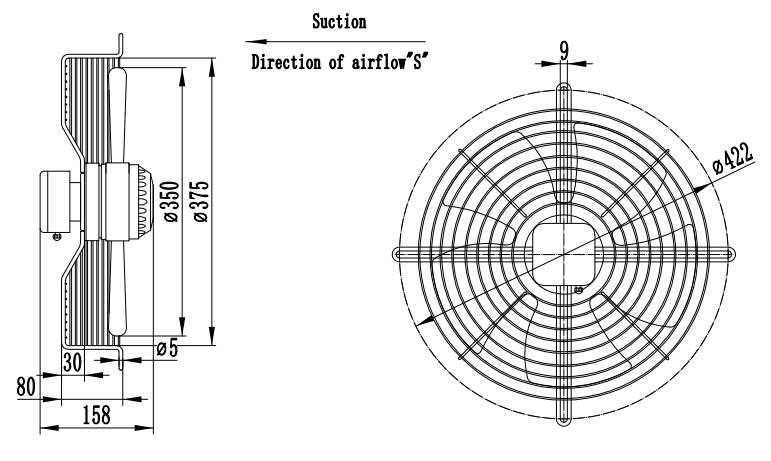

LWAA4E350S-5MEB-17 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

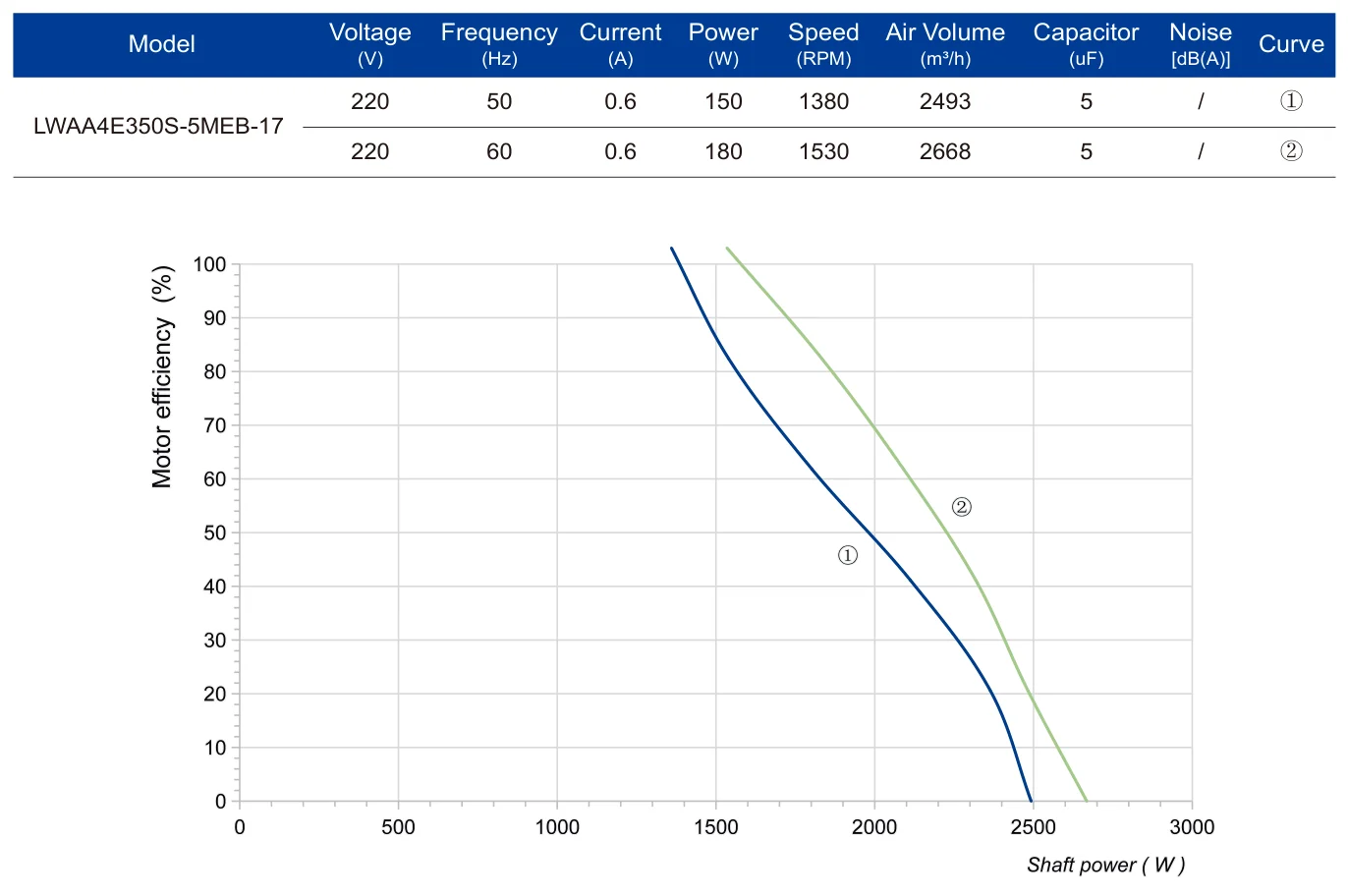

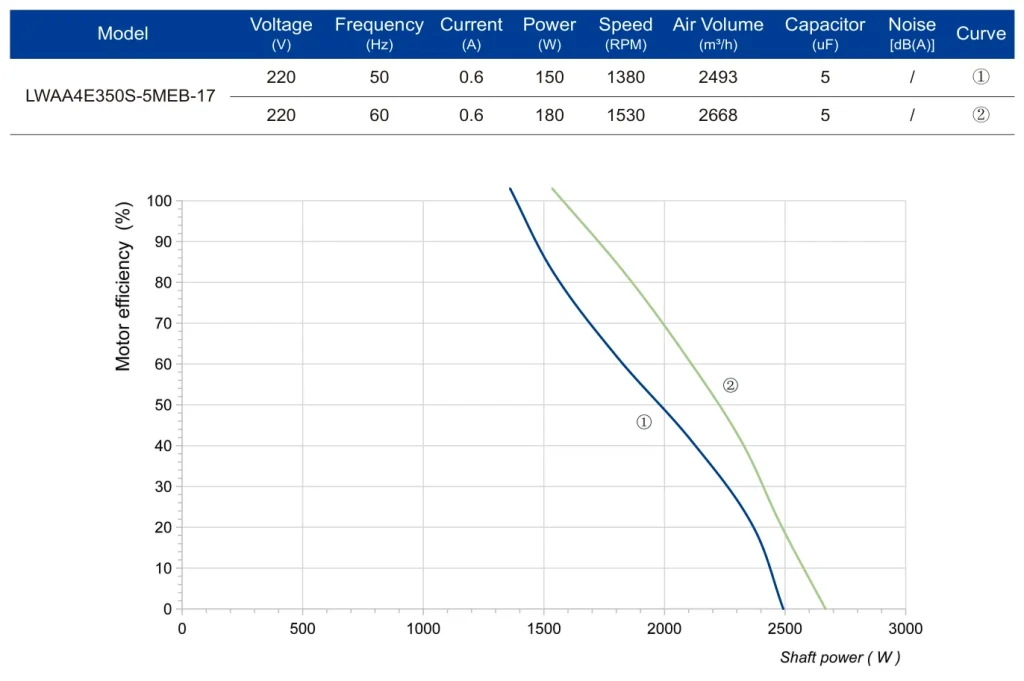

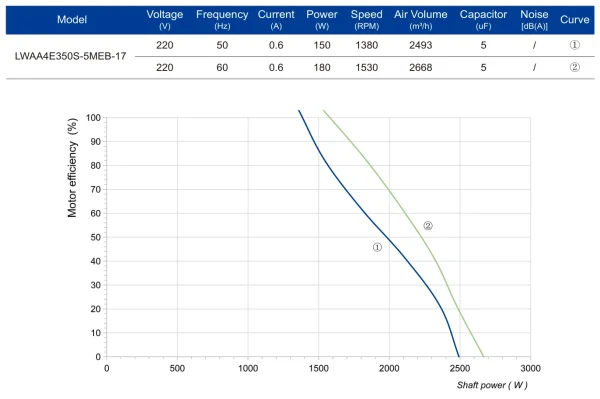

LWAA4E350S-5MEB-17 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

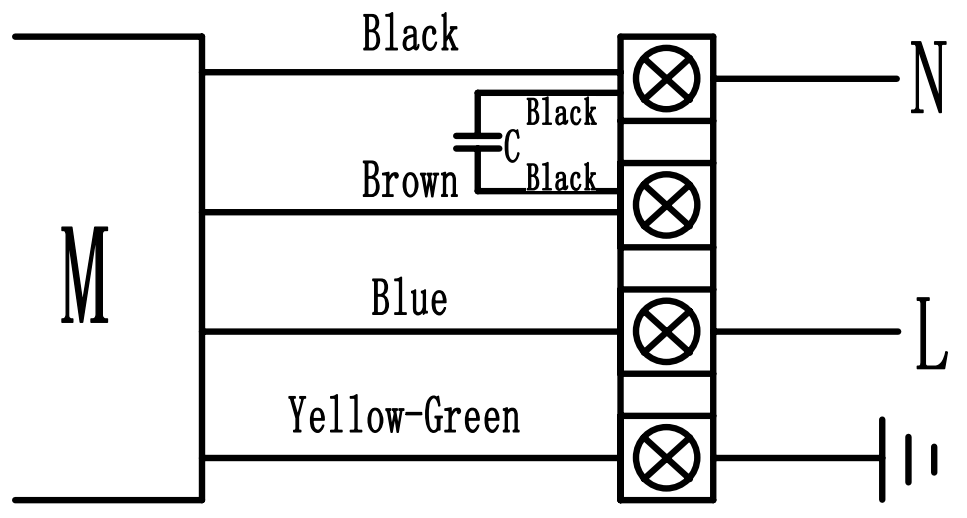

LWAA4E350S-5MEB-17 Wiring diagram — **Wiring diagram**Lead colours and terminal assignment; TK = motor thermal contact.

Files for LWAA4E350S-5MEB-17: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWAA4E350S-5MEB-17

LWAA4E350S-5MEB-17 is a LONGWELL AC Axial Fan from the AC Axial Fans range, impeller Ø350 mm, rated 220 V AC, maximum airflow 2,493 m³/h, input power 150 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model	LWAA4E350S-5MEB-17
Series	LWAA4E350
Motor type	AC
Phase	1-phase
Rated voltage	220 V
Frequency	50 Hz
Current	0.6 A
Input power	150 W
Speed	1,380 rpm
Max. airflow	2,493 m³/h
Ambient temperature	-30 ~ 60 °C
Impeller diameter	Ø350 mm
Impeller material	Cold rolled steel
Protection class	IP55
Insulation class	F
Bearing	Maintenance-free ball bearings
Duty	S1

Typical applications

Condensers, evaporators and dry coolers
Heat-pump and chiller outdoor units
Building and workshop ventilation
Cooling towers and transformer cooling

Series LWAA4E350: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Company certificates

Scans of original documents held by Ningbo Longwell Electric Technology Co., Ltd.: the company ISO 9001 / 14001 / 45001 management-system certificate. Click a scan to open the original.

ISO 9001 / 14001 / 45001Management systems of Ningbo Longwell Electric Technology Co., Ltd. (company certificate).

ISO 9001 / 14001 / 45001 management system certificate — LONGWELL certificate

PDFISO 9001 / 14001 / 45001 management system certificate

Need a Declaration of Conformity for this model and your destination market? Ask us — we arrange additional certification on request.

How to order LWAA4E350S-5MEB-17

Most first orders follow the same eight steps. Quantities, terms and lead times are confirmed in your quotation.

1SelectFind models by duty point in the selector or by model number, compare on the curve and add them to your RFQ list.
2Engineering checkWithin 1 business day you receive the duty-point check on the curve, price and lead time.
3SamplesStock models ship in 1–3 days.
4Validation supportDatasheets, drawings, wiring diagrams and DoC per model; test reports, CAD and register maps after a short project check or NDA.
5Order & paymentProforma invoice; first orders on T/T 30 / 70.
6Production & release15–30 days at the partner factory that builds your model, then inspected and released to LONGWELL standards with outgoing sampling to AQL 2.5.
7ShippingFOB / CIF / DDP by sea from Ningbo or Shanghai; express and air on EXW / FCA / DAP.
8After-sales12 months standard, extendable to 18–24 months by project agreement; test records retained for 5 years; 8D closed-loop for any issue; annual technical review for framework customers.

See terms, QC and FAQ →

Test & release at LONGWELL

Specified and drawn by LONGWELL; built to LONGWELL drawings by qualified partner factories; inspected and released to LONGWELL standards before shipment.

See test and release photos (8)

LONGWELL Semi-anechoic chamber — Semi-anechoic chamber

LONGWELL Test laboratory — Test laboratory

Test labs and all certificate scans →

Alternatives with the same impeller (Ø350 mm · AC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWAA4E350S-5MEB-17 this model	2,493 m³/h	see curve	1,380 rpm	150 W	—	220 V
LWA-350(14")U(S)M-01	60 m³/h	see curve	1,350 rpm	140 W	—	110-120 V	View
LWA-350(14")U(S)M-02	65 m³/h	see curve	1,350 rpm	160 W	—	110-120 V	View
LWA-350(14")U(S)M-03	98 m³/h	see curve	2,800 rpm	550 W	—	110-120 V	View
LWAA6E350S-5MEB-05	1,607 m³/h	see curve	950 rpm	75 W	53 dB(A)	220/230 V	View
LWAA6D350S-5MEB-07	1,607 m³/h	see curve	920 rpm	70 W	53 dB(A)	380 V	View
LWAA6E350S-5MEB-06	1,854 m³/h	see curve	1,100 rpm	83 W	54 dB(A)	220/230 V	View
LWAA6D350S-5MEB-08	1,854 m³/h	see curve	1,050 rpm	80 W	54 dB(A)	380 V	View
LWAA4D350S-5MEW-18	2,575 m³/h	see curve	1,400 rpm	150 W	—	380 V	View
LWAA4E350S-5MKB-13	3,348 m³/h	see curve	1,350 rpm	155 W	55 dB(A)	220/230 V	View
LWAA4E350S-5MEB-09	3,348 m³/h	see curve	1,350 rpm	155 W	55 dB(A)	220/230 V	View
LWAA4E350S-5MKB-16	3,760 m³/h	see curve	1,500 rpm	200 W	58 dB(A)	380 V	View
LWAA4E350S-5MKB-14	3,760 m³/h	see curve	1,500 rpm	200 W	58 dB(A)	220/230 V	View
LWAA4E350S-5MEB-10	3,760 m³/h	see curve	1,500 rpm	200 W	58 dB(A)	220/230 V	View
LWA-350(14")U(S)M-04	5,500 m³/h	250 Pa	2,800 rpm	750 W	—	110-120 V	View
