ImpellerØ350 mm13.8 in
Max airflow98 m³/h58 CFM
Voltage110-120 V
Speed2,800 rpm
Input power550 W

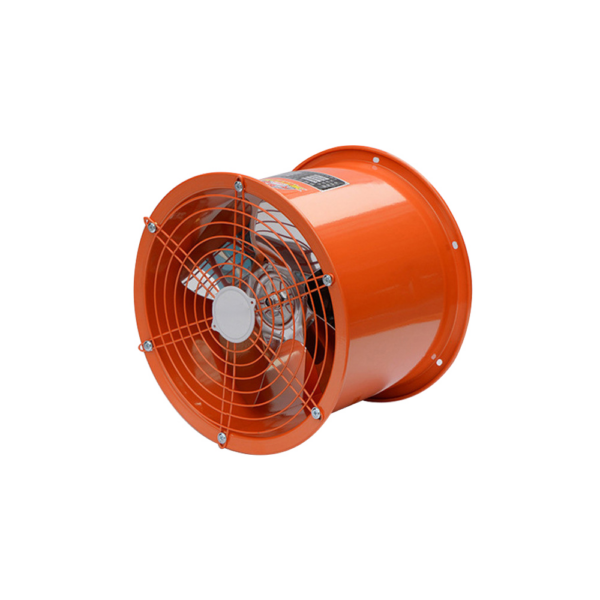

LWA-350(14″)U(S)M-03 Tube Axial Fan Ø350 mm

Ø350 mm | AC | Max airflow 98 m³/h

SKU: LWA-350(14")U(S)M-03 Categories: Axial Fans, Impeller Ø200–350 mm, Tube Axial Fans

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · RoHS · ETL on request

Engineering files (on request)

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.

DWG2D drawing (DWG)1018 KBRequest →

CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

Get a quote · LWA-350(14")U(S)M-03

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com All files for LWA-350(14")U(S)M-03drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Drawings & downloads
Technical description

LWA-350(14")U(S)M-03 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

Need a non-standard size or another format? Ask an engineer or search the download center.

LWA-350(14")U(S)M-03 is a LONGWELL Tube Axial Fan from the Tube Axial Fans range, impeller Ø350 mm, rated 110-120 V AC, maximum airflow 98 m³/h, input power 550 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model	LWA-350(14")U(S)M-03
Motor type	AC
Phase	1-phase
Rated voltage	110-120 V
Frequency	50 Hz
Input power	550 W
Speed	2,800 rpm
Max. airflow	98 m³/h
Impeller diameter	Ø350 mm
Blade diameter	350mm

Typical applications

Condensers, evaporators and dry coolers
Heat-pump and chiller outdoor units
Building and workshop ventilation
Cooling towers and transformer cooling

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø350 mm · AC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWA-350(14")U(S)M-03 this model	98 m³/h	see curve	2,800 rpm	550 W	—	110-120 V
LWA-350(14")U(S)M-01	60 m³/h	see curve	1,350 rpm	140 W	—	110-120 V	View
LWA-350(14")U(S)M-02	65 m³/h	see curve	1,350 rpm	160 W	—	110-120 V	View
LWAA6E350S-5MEB-05	1,607 m³/h	see curve	950 rpm	75 W	53 dB(A)	220/230 V	View
LWAA6D350S-5MEB-07	1,607 m³/h	see curve	920 rpm	70 W	53 dB(A)	380 V	View
LWAA6E350S-5MEB-06	1,854 m³/h	see curve	1,100 rpm	83 W	54 dB(A)	220/230 V	View
LWAA6D350S-5MEB-08	1,854 m³/h	see curve	1,050 rpm	80 W	54 dB(A)	380 V	View
LWAA4E350S-5MEB-17	2,493 m³/h	see curve	1,380 rpm	150 W	—	220 V	View
LWAA4D350S-5MEW-18	2,575 m³/h	see curve	1,400 rpm	150 W	—	380 V	View
LWAA4E350S-5MKB-13	3,348 m³/h	see curve	1,350 rpm	155 W	55 dB(A)	220/230 V	View
LWAA4E350S-5MEB-09	3,348 m³/h	see curve	1,350 rpm	155 W	55 dB(A)	220/230 V	View
LWAA4E350S-5MKB-16	3,760 m³/h	see curve	1,500 rpm	200 W	58 dB(A)	380 V	View
LWAA4E350S-5MKB-14	3,760 m³/h	see curve	1,500 rpm	200 W	58 dB(A)	220/230 V	View
LWAA4E350S-5MEB-10	3,760 m³/h	see curve	1,500 rpm	200 W	58 dB(A)	220/230 V	View
LWA-350(14")U(S)M-04	5,500 m³/h	250 Pa	2,800 rpm	750 W	—	110-120 V	View
