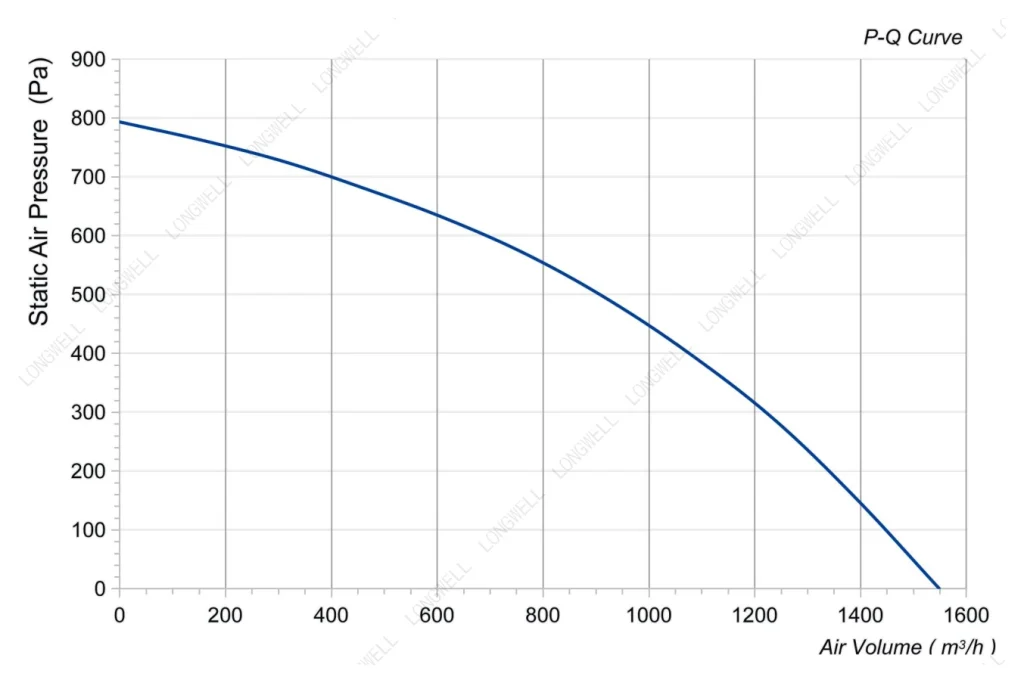

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ250 mm9.8 in
- Max airflow1,442 m³/h849 CFM
- Max static pressure690 Pa2.77 in. wg
- Voltage48 V
- Speed3,000 rpm
- Input power160 W
- Noise79 dB(A)
LWBD3G250-092NH-06 DC Backward Curved Centrifugal Fan Ø250 mm
Ø250 mm | DC | Max airflow 1,442 m³/h | Max static pressure 690 Pa | 79 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Need a non-standard size or another format? Ask an engineer or search the download center.

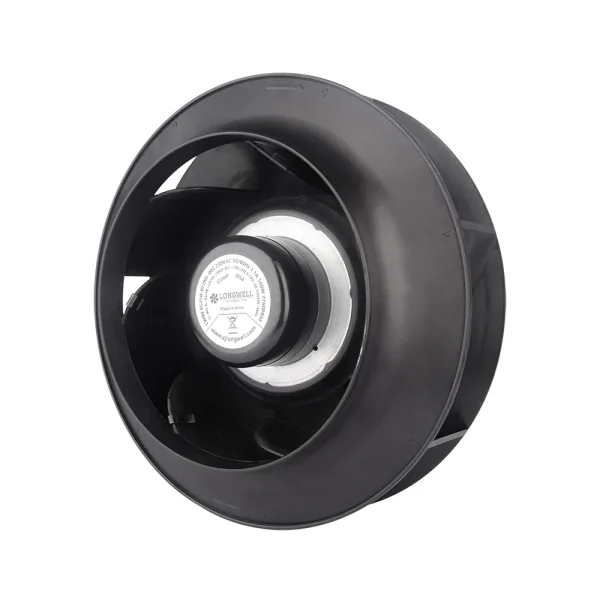

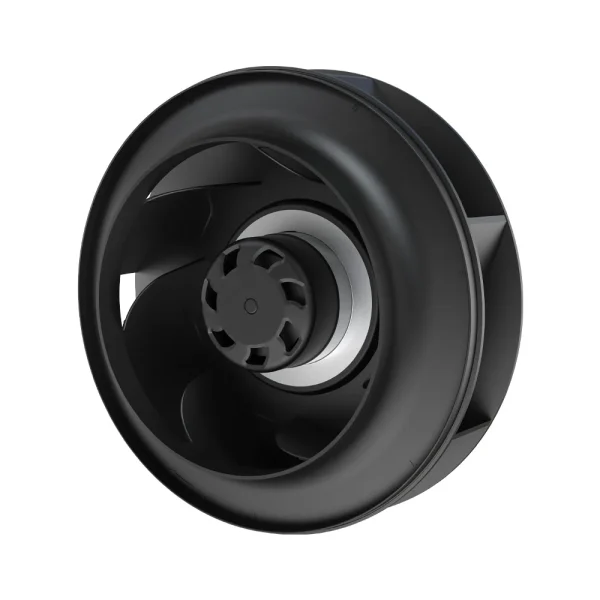

LWBD3G250-092NH-06 is a LONGWELL DC Backward Curved Centrifugal Fan from the Backward Curved Centrifugal Fans range, impeller Ø250 mm, rated 48 V DC, maximum airflow 1,442 m³/h, maximum static pressure 690 Pa, noise 79 dB(A), input power 160 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

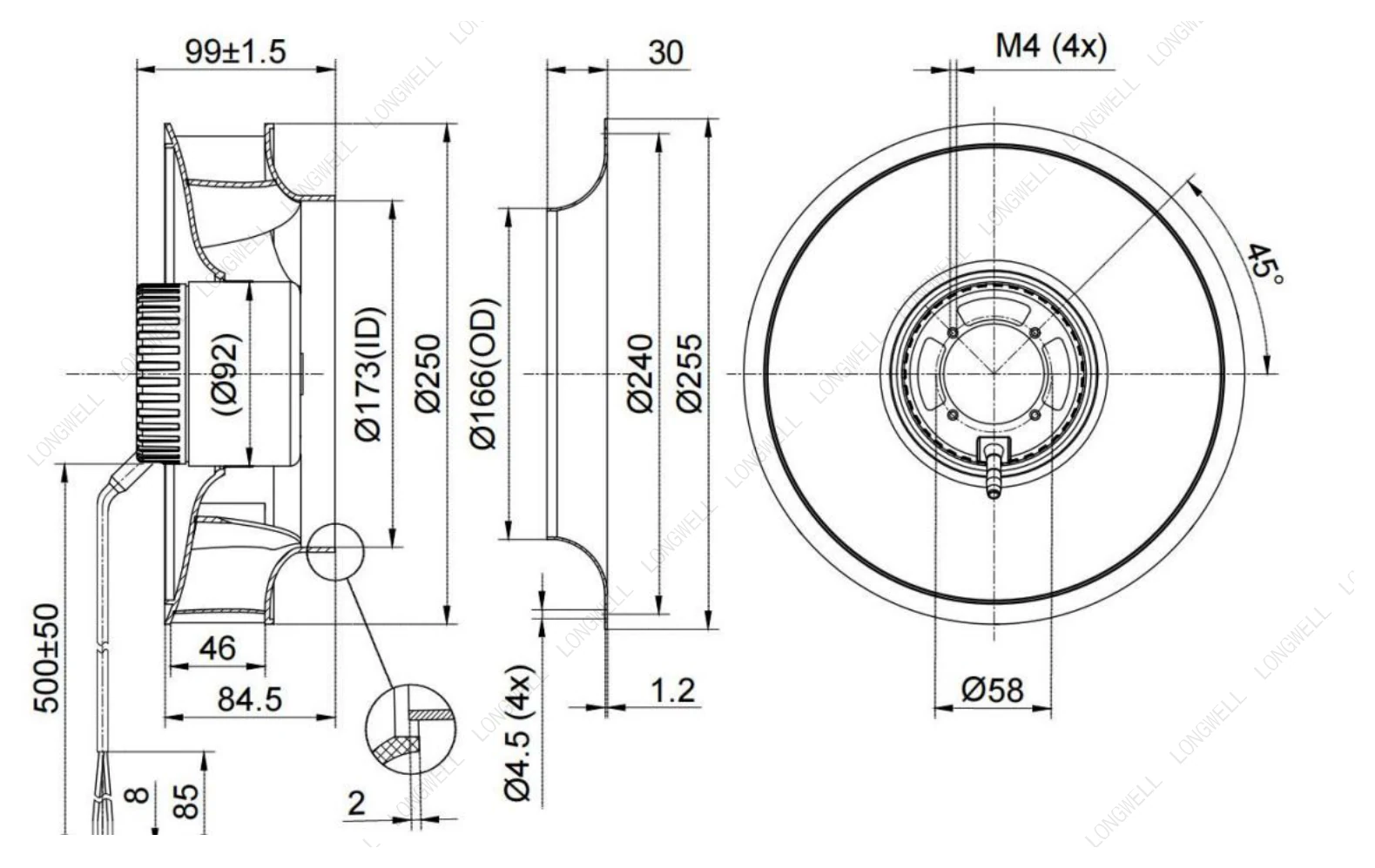

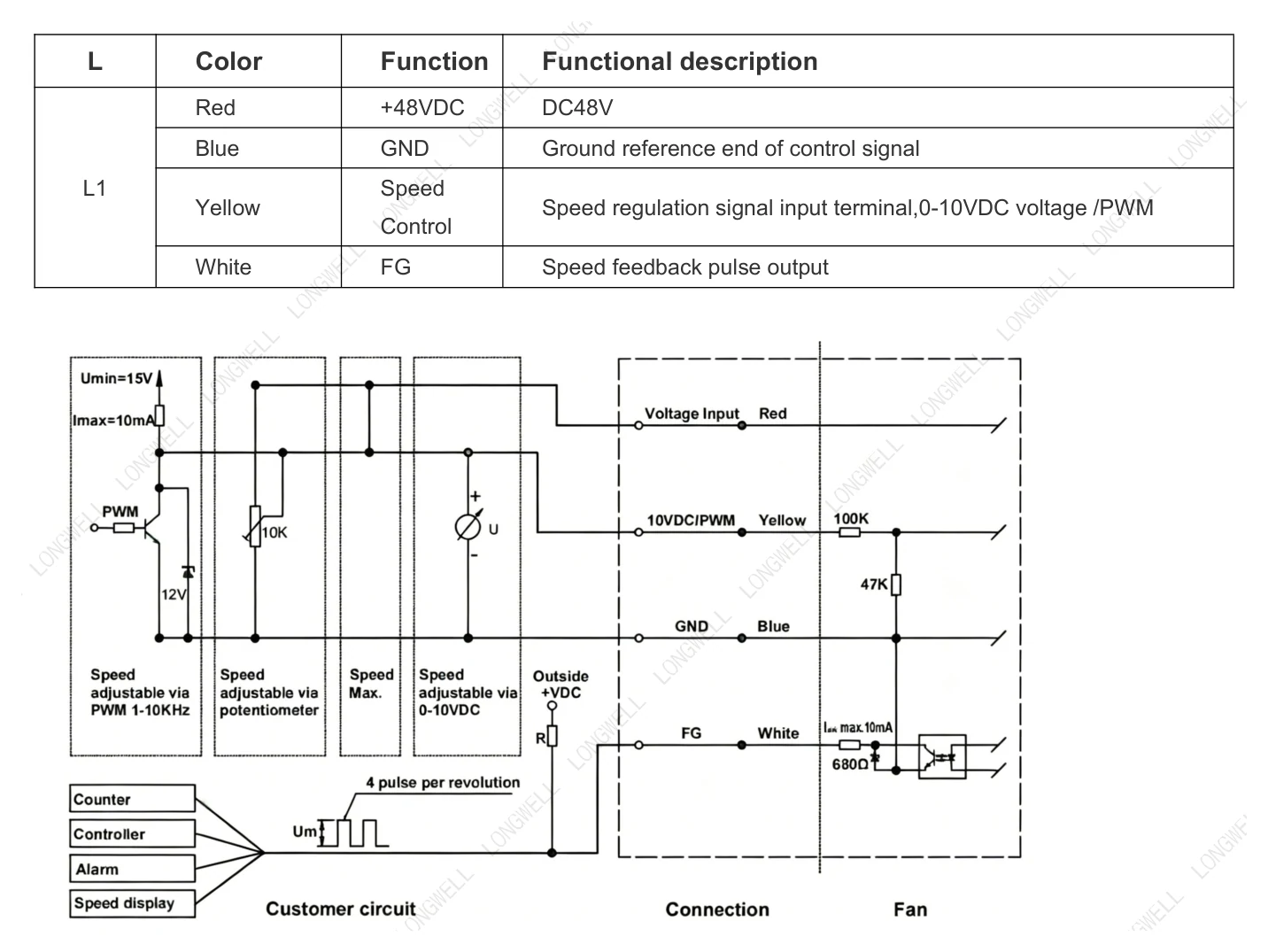

Technical data
| Model | LWBD3G250-092NH-06 |
|---|---|
| Series | LWBD3G250 |
| Motor type | DC |
| Rated voltage | 48 V |
| Current | 3.33 A |
| Input power | 160 W |
| Speed | 3,000 rpm |
| Max. airflow | 1,442 m³/h |
| Max. static pressure | 690 Pa |
| Noise | 79 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Storage temperature | -40 ~ 75℃ |
| Humidity | 5 % ~ 90 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø250 mm |
| Rotor diameter | 92 |
| Impeller material | Propylene with glass-fiber reinforced ( Impeller ) Die-cast aluminum(Electronics housing) Bearing Maintenance-free deep groove ball bearings Weight 2100/600g (Fan/Inlet) LONGWELL ELL LON Version number : A0 NINGBO LONGWELL |
| Protection class | IP42 |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Vibration standard | JB/T 8689 |
| Service life | 50,000Hours(L10), At 40 °Croom, humidity 15%~65%RH. Balancing According to JB/T 9101-1999 requirements G6.3 Vibration of the fan Test method accord with JB/T 8689 Installation method All mounting orientations available Mate |
| Rotation | Clockwise,seen on rotor |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWBD3G250: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
