ImpellerØ250 mm9.8 in
Max airflow1,751 m³/h1,031 CFM
Max static pressure721 Pa2.89 in. wg
Voltage230 V
Speed2,650 rpm
Input power290 W
Noise76 dB(A)

LWBA2E250-092NS-05 AC Backward Curved Centrifugal Fan Ø250 mm

Ø250 mm | AC | Max airflow 1,751 m³/h | Max static pressure 721 Pa | 76 dB(A)

SKU: LWBA2E250-092NS-05 Categories: Backward Curved Centrifugal Fans, Centrifugal Fans, Impeller Ø250–355 mm

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · ETL · RoHS

View RFQ →

Engineering files (on request)

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.

STP3D model (STEP)6 MBRequest →

CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

Get a quote · LWBA2E250-092NS-05

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Datasheet (PDF)electrical & performance data All files for LWBA2E250-092NS-05drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Drawings & downloads
Technical description

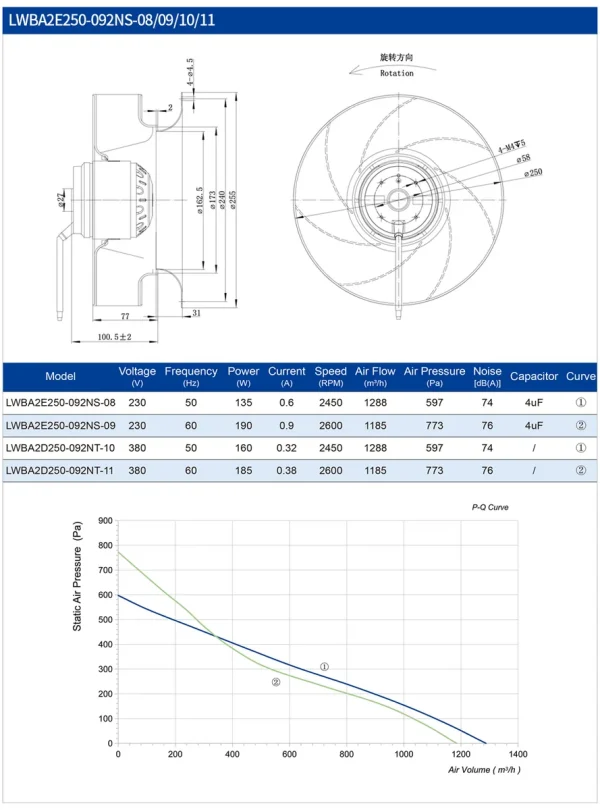

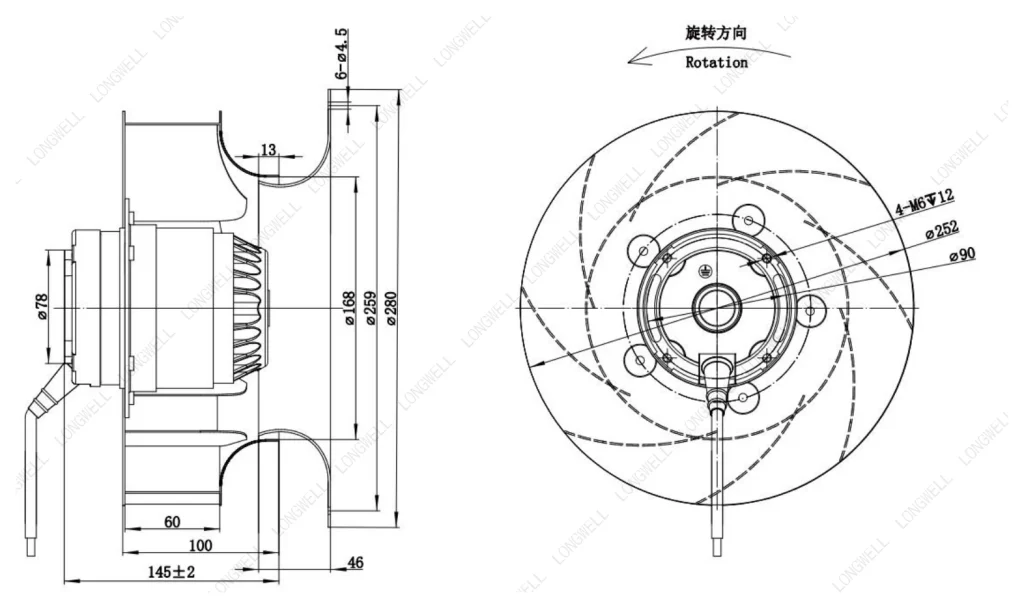

LWBA2E250-092NS-05 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

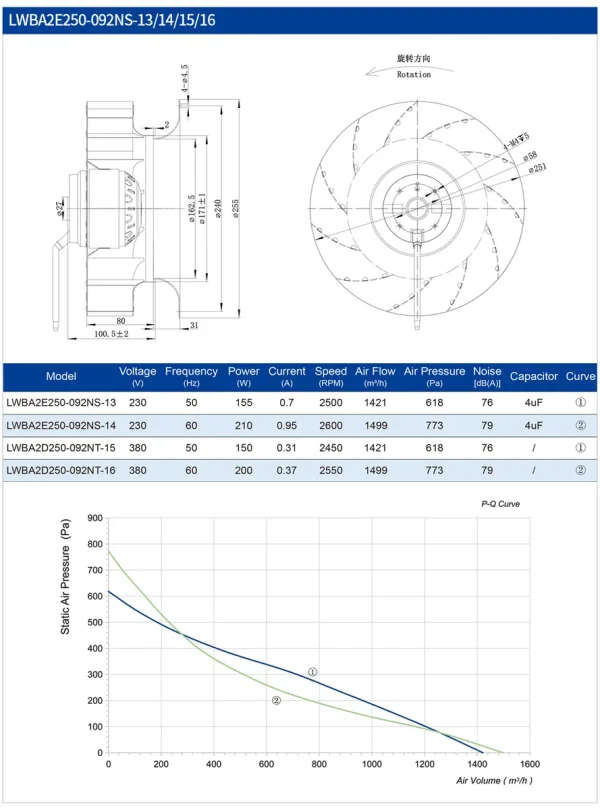

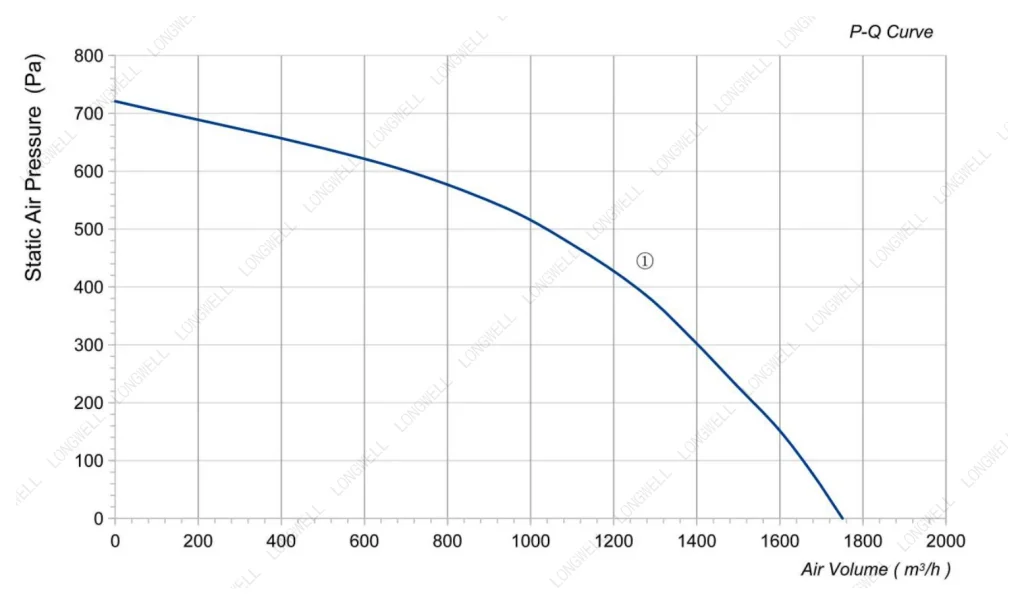

LWBA2E250-092NS-05 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

LWBA2E250-092NS-05 Wiring diagram — **Wiring diagram**Lead colours and terminal assignment; TK = motor thermal contact.

Downloads for LWBA2E250-092NS-05

PDFDatasheet

Need a non-standard size or another format? Ask an engineer or search the download center.

LWBA2E250-092NS-05 is a LONGWELL AC Backward Curved Centrifugal Fan from the Backward Curved Centrifugal Fans range, impeller Ø250 mm, rated 230 V AC, maximum airflow 1,751 m³/h, maximum static pressure 721 Pa, noise 76 dB(A), input power 290 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model	LWBA2E250-092NS-05
Series	LWBA2E250
Motor type	AC
Phase	1-phase
Rated voltage	230 V
Frequency	50 Hz
Current	1.2 A
Input power	290 W
Speed	2,650 rpm
Max. airflow	1,751 m³/h
Max. airflow (CFM)	1,030 CFM
Max. static pressure	721 Pa
Noise	76 dB(A)
Ambient temperature	-40 ~ 60 °C
Storage temperature	-40 ~ 80℃
Humidity	0 ~ 85 % RH
Altitude	< 1000m
Impeller diameter	Ø250 mm
Rotor diameter	92
Impeller material	Aluminum Alloy ( Impeller )
Protection class	IP44
Insulation class	F
Bearing	Maintenance-free ball bearings
Duty	S1
Balance grade	G6.3
Vibration standard	JB/T 8689
Service life	30,000Hours(L10), At 40 °Croom, humidity 15%~65%RH
Rotation	Clockwise,seen on rotor

Typical applications

Air handling units (AHU) and rooftop units (RTU)
Data-center CRAH / CRAC units and fan walls
Dust extraction and process ventilation
Fan filter units and air purifiers

Series LWBA2E250: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø250 mm · AC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWBA2E250-092NS-05 this model	1,751 m³/h	721 Pa	2,650 rpm	290 W	76 dB(A)	230 V
LWA-250(10")U(S)M-01	28 m³/h	see curve	1,350 rpm	80 W	—	110-120 V	View
LWA-250(10")U(S)M-02	48 m³/h	see curve	2,800 rpm	230 W	—	110-120 V	View
LWDA-250S-MBN-10	1,034 m³/h	515 Pa	2,615 rpm	165 W	71 dB(A)	230 V	View
LWDA-250 (10")U-MWN-01	1,219 m³/h	see curve	3,000 rpm	228 W	69 dB(A)	110-120 V	View
LWDA-250 (10")U-MWN-03	1,219 m³/h	see curve	3,000 rpm	228 W	62 dB(A)	110-120 V	View
LWDA-250(8'')S-PWN-05	1,600 m³/h	420 Pa	2,500 rpm	175 W	50 dB(A)	230 V	View
LWFA6E250-102NS-04	1,751 m³/h	164.8 Pa	900 rpm	320 W	62 dB(A)	220 V	View
LWFA6D250-102NT-03	1,751 m³/h	164.8 Pa	910 rpm	320 W	62 dB(A)	380 V	View
LWDA-250 (10")S-MWN-02	1,900 m³/h	see curve	2,750 rpm	162 W	68 dB(A)	220-240 V	View
LWDA-250 (10")S-MWN-04	1,900 m³/h	see curve	2,750 rpm	162 W	60 dB(A)	220-240 V	View
LWFA-E-250-02	2,100 m³/h	215 Pa	—	—	64 dB(A)	—	View
LWA-250(10")U(S)M-03	2,100 m³/h	215 Pa	2,800 rpm	250 W	—	110-120 V	View
LWDA-250(10")S-MWN-06	2,100 m³/h	215 Pa	2,800 rpm	100 W	65 dB(A)	220 V	View
LWFA-E-250-01	2,500 m³/h	380 Pa	—	—	70 dB(A)	—	View
