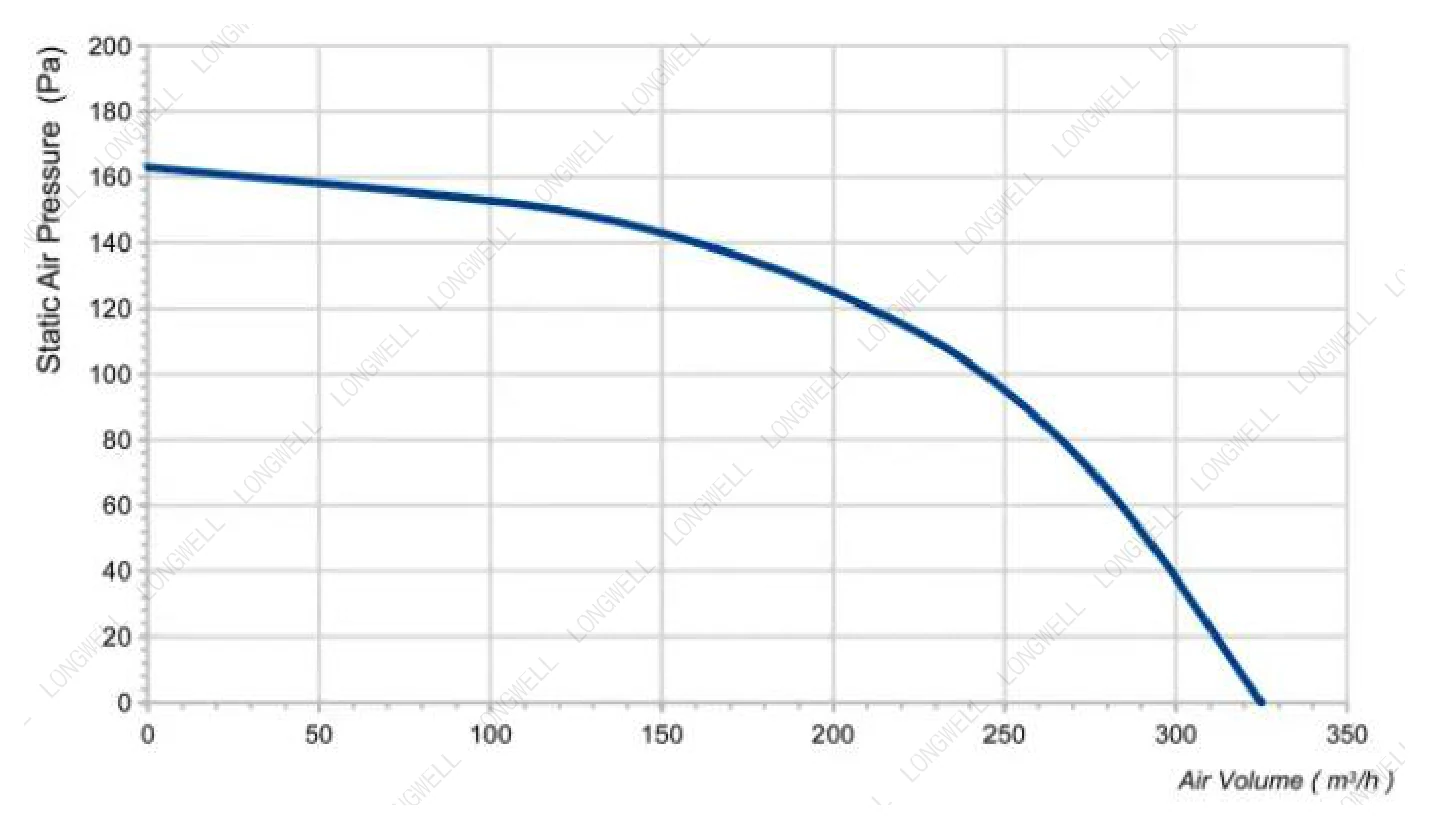

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ100 mm
- Max airflow325 m³/h
- Max static pressure163 Pa
- Voltage230 V
- Speed2,360 rpm
- Input power36 W
- Noise30 dB(A)

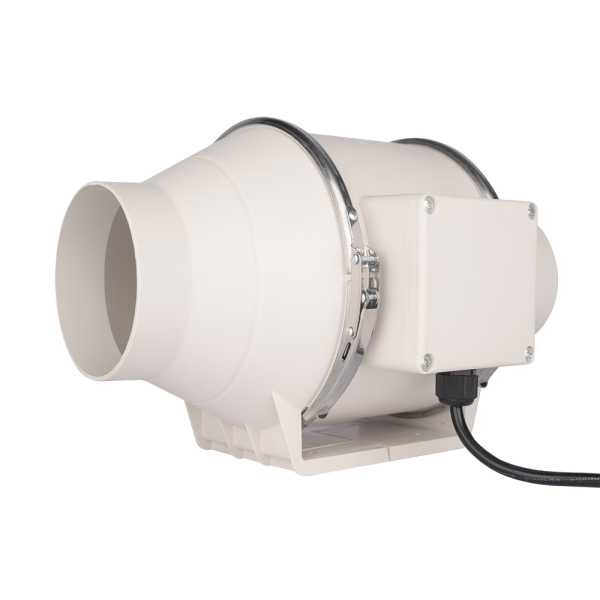

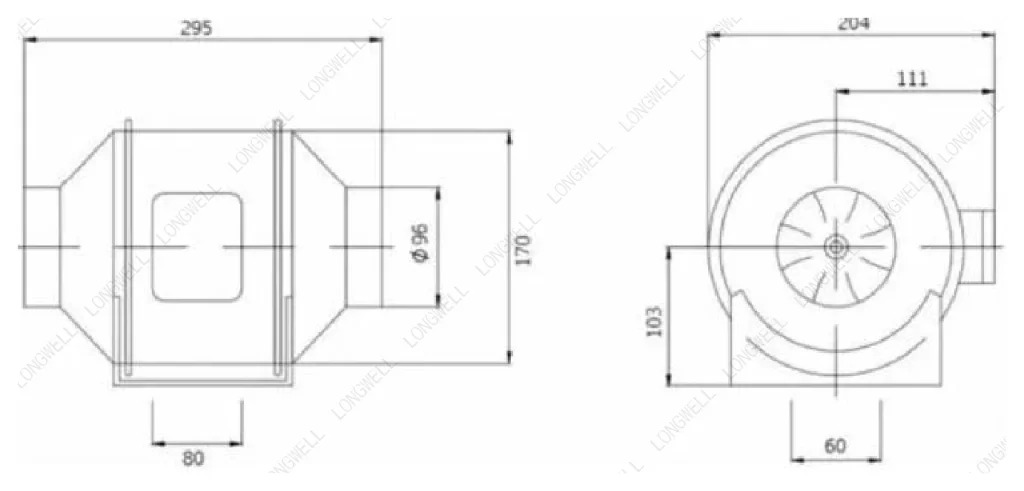

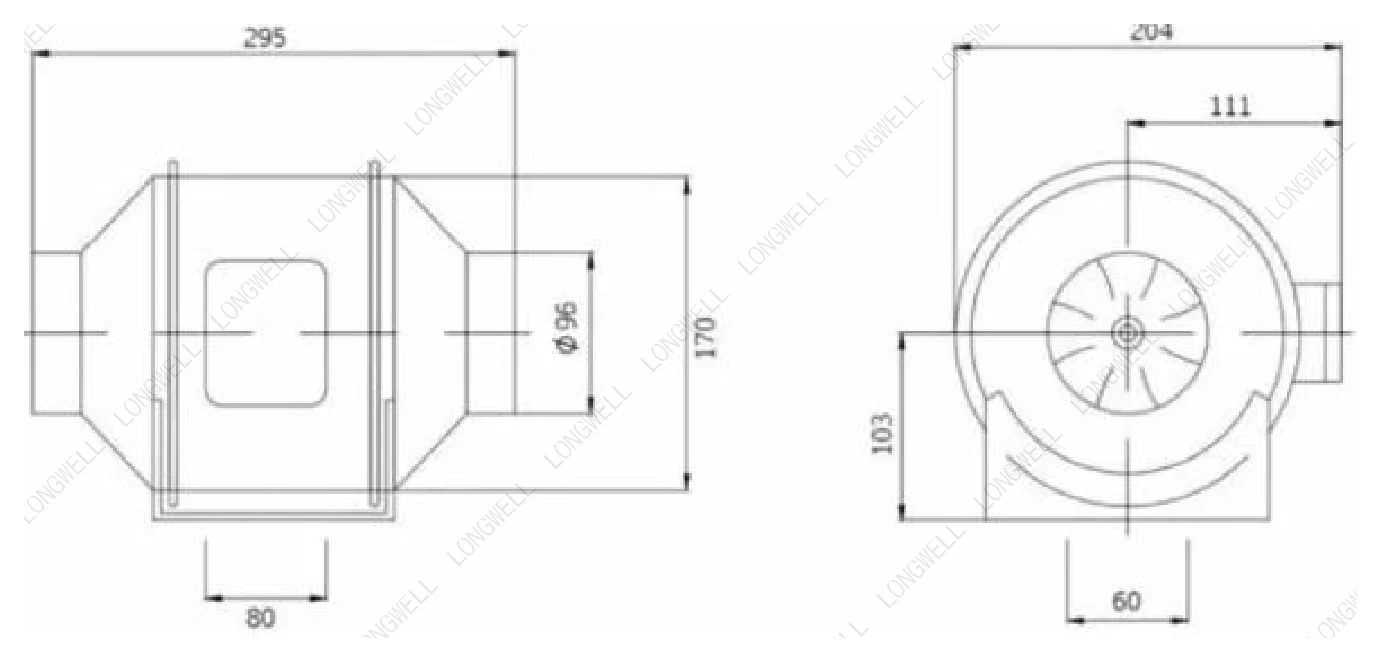

LWDA-100(4″)S-PWN-14 AC Plastic Inline Duct Fan Ø100 mm
Ø100 mm | AC | Max airflow 325 m³/h | Max static pressure 163 Pa | 30 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Downloads for LWDA-100(4")S-PWN-14
PDFDatasheet · 431 KBNeed a non-standard size or another format? Ask an engineer or search the download center.
LWDA-100(4")S-PWN-14 is a LONGWELL AC Plastic Inline Duct Fan from the Plastic Inline Duct Fans range, impeller Ø100 mm, rated 230 V AC, maximum airflow 325 m³/h, maximum static pressure 163 Pa, noise 30 dB(A), input power 36 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWDA-100(4")S-PWN-14 |
|---|---|
| Series | LWDA100 |
| Motor type | AC |
| Phase | 1-phase |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Current | 0.16 A |
| Input power | 36 W |
| Speed | 2,360 rpm |
| Max. airflow | 325 m³/h |
| Max. static pressure | 163 Pa |
| Noise | 30 dB(A) |
| Storage temperature | -25 ~ 60℃ |
| Humidity | 15 ~ 85% RH |
| Altitude | < 1000m |
| Impeller diameter | Ø100 mm |
| Inlet diameter | 100mm |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 50,000Hours(L10), At 25 °Croom, humidity 15%~65%RH |
Typical applications
- Residential and commercial fresh-air systems
- Kitchen and bathroom exhaust
- Local pressurisation and booster duty
- Hotel and office ventilation
Series LWDA100: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø100 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWDA-100(4")S-PWN-14 this model | 325 m³/h | 163 Pa | 2,360 rpm | 36 W | 30 dB(A) | 230 V | |
| LWDA-100(4")S-MWN-08 | 140 m³/h | 58 Pa | 2,800 rpm | 20 W | 48 dB(A) | 220 V | View |
| LWDA-100(4")U-PWN-17 | 205 m³/h | 135 Pa | 1,900 rpm | 34 W | 24 dB(A) | 115 V | View |
| LWDA-100(4")S-PWN-15 | 205 m³/h | 135 Pa | 1,900 rpm | 25 W | 24 dB(A) | 230 V | View |
| LWDA-100S-MBN-14 | 242 m³/h | 326 Pa | 2,450 rpm | 60 W | 59 dB(A) | 230 V | View |
| LWDA-100S-PWN-15 | 319 m³/h | 185 Pa | 2,550 rpm | 40 W | 25 dB(A) | 230 V | View |
| LWDA-100(4")U-PWN-16 | 325 m³/h | 163 Pa | 2,360 rpm | 34 W | 30 dB(A) | 115 V | View |
| LWDA-100 (4")U-PWN-01 | 410 m³/h | see curve | 3,350 rpm | 41 W | 52 dB(A) | 110-120 V | View |
| LWDA-100 (4")U-MWN-03 | 410 m³/h | see curve | 3,350 rpm | 41 W | 51 dB(A) | 110-120 V | View |
| LWDA-100 (4")S-PWN-02 | 605 m³/h | 168 Pa | 2,900 rpm | 41 W | 51 dB(A) | 220-240 V | View |
| LWDA-100 (4")S-MWN-04 | 605 m³/h | see curve | 2,900 rpm | 41 W | 49 dB(A) | 220-240 V | View |
| LWCA-100520SN-06 | 950 m³/h | 128 Pa | 1,400 rpm | 75 W | 58 dB(A) | 230 V | View |
| LWCA-100620SN-06 | 1,100 m³/h | 151 Pa | 1,400 rpm | 90 W | 59 dB(A) | 230 V | View |
| LWCA-100720SN-06 | 1,300 m³/h | 175 Pa | 1,400 rpm | 100 W | 60 dB(A) | 230 V | View |
| LWCA-100820SN-06 | 1,500 m³/h | 203 Pa | 1,400 rpm | 110 W | 61 dB(A) | 230 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
