ImpellerØ100 mm3.9 in
Max airflow319 m³/h188 CFM
Max static pressure185 Pa0.74 in. wg
Voltage230 V
Speed2,550 rpm
Input power40 W
Noise25 dB(A)

LWDA-100S-PWN-15 AC Ultra Silent Plastic Duct Fan Ø100 mm

Ø100 mm | AC | Max airflow 319 m³/h | Max static pressure 185 Pa | 25 dB(A)

SKU: LWDA-100S-PWN-15 Categories: Impeller Ø100–150 mm, Inline Duct Fans, Ultra Silent Duct Fans

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · RoHS · ETL on request

Get a quote · LWDA-100S-PWN-15

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Datasheet (PDF)electrical & performance data All files for LWDA-100S-PWN-15drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

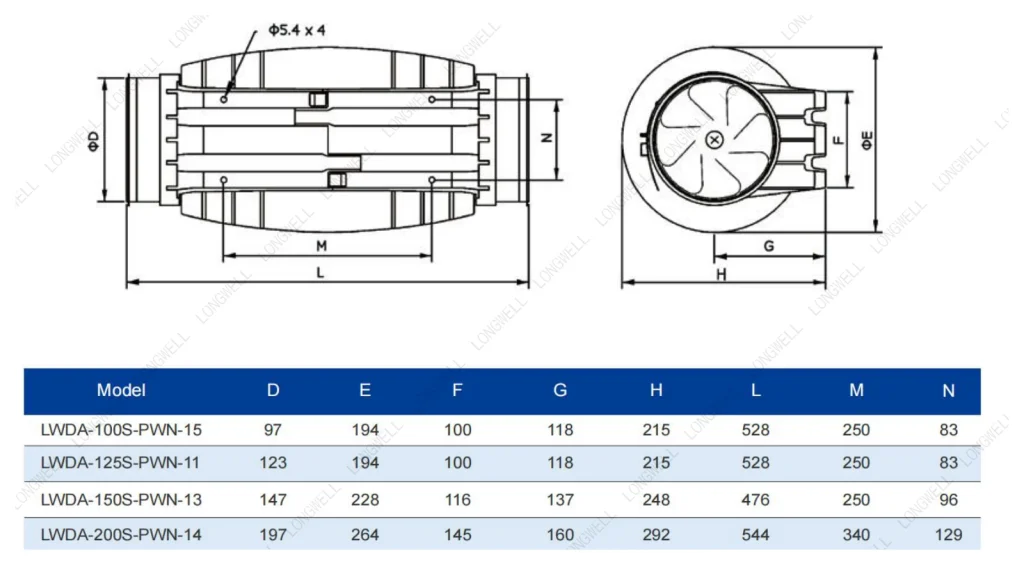

LWDA-100S-PWN-15 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

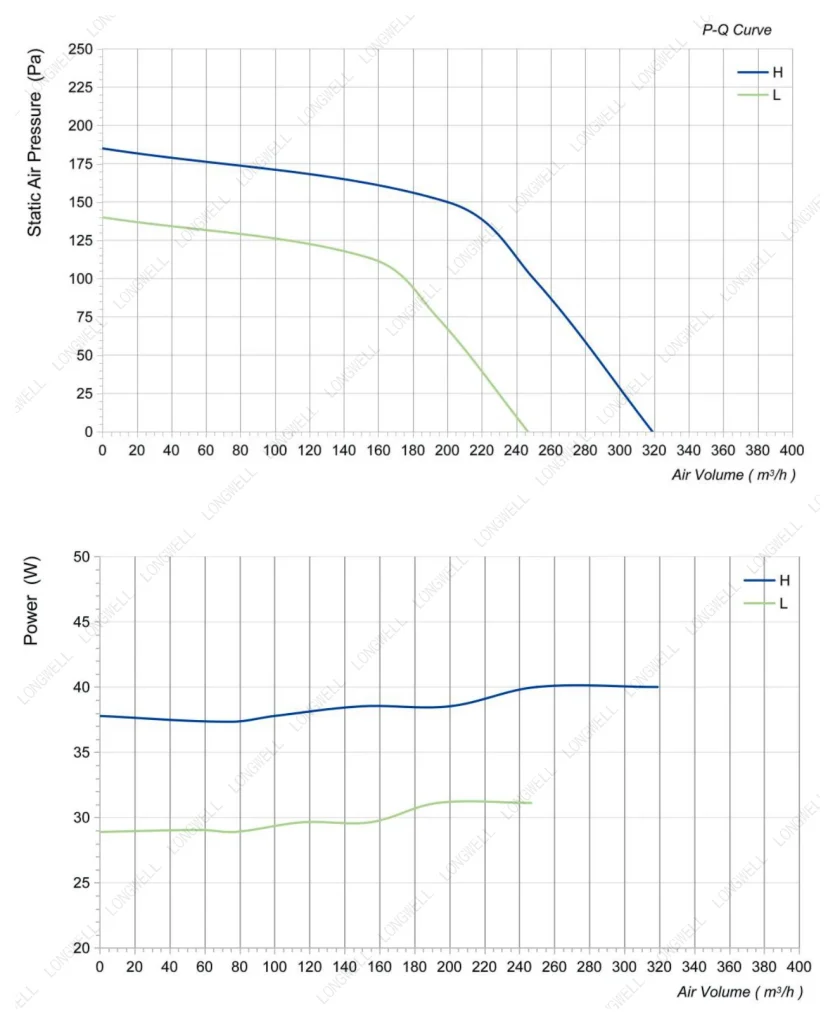

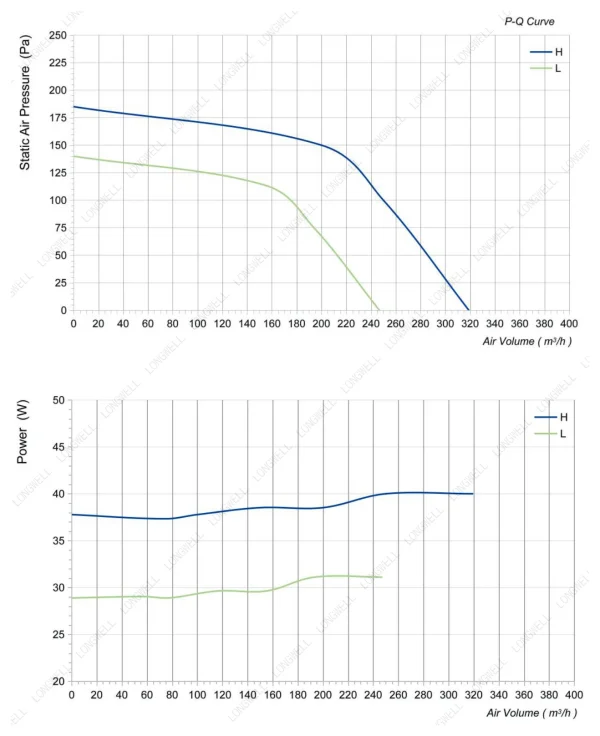

LWDA-100S-PWN-15 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

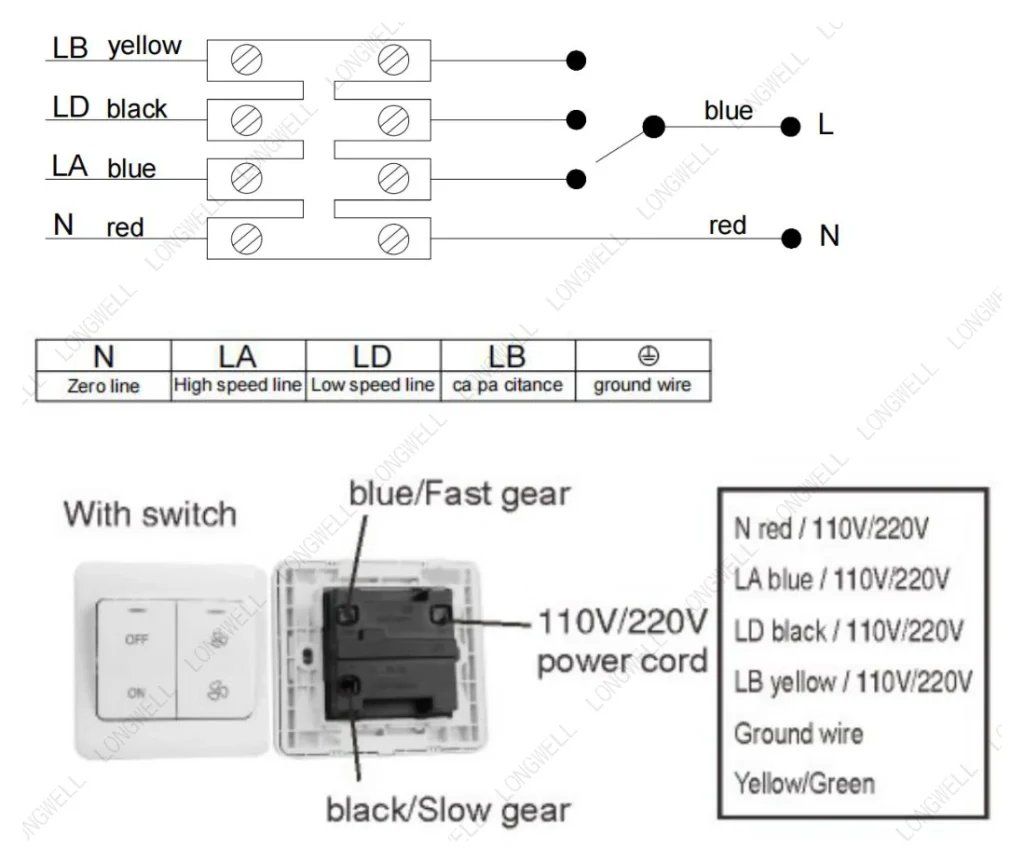

LWDA-100S-PWN-15 Wiring diagram — **Wiring diagram**Lead colours and terminal assignment; TK = motor thermal contact.

Downloads for LWDA-100S-PWN-15

PDFDatasheet · 483 KB DOCXDatasheet · 796 KB

Need a non-standard size or another format? Ask an engineer or search the download center.

LWDA-100S-PWN-15 is a LONGWELL AC Ultra Silent Plastic Duct Fan from the Ultra Silent Duct Fans range, impeller Ø100 mm, rated 230 V AC, maximum airflow 319 m³/h, maximum static pressure 185 Pa, noise 25 dB(A), input power 40 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model	LWDA-100S-PWN-15
Series	LWDA100
Motor type	AC
Phase	1-phase
Rated voltage	230 V
Frequency	50 Hz
Input power	40 W
Speed	2,550 rpm
Max. airflow	319 m³/h
Max. static pressure	185 Pa
Noise	25 dB(A)
Storage temperature	-25 ~ 60℃
Humidity	15 ~ 85% RH
Altitude	< 1000m
Impeller diameter	Ø100 mm
Inlet diameter	100mm
Balance grade	G6.3
Vibration standard	JB/T 8689
Service life	50,000Hours(L10), At 25 °Croom, humidity 15%~65%RH

Typical applications

Residential and commercial fresh-air systems
Kitchen and bathroom exhaust
Local pressurisation and booster duty
Hotel and office ventilation

Series LWDA100: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø100 mm · AC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWDA-100S-PWN-15 this model	319 m³/h	185 Pa	2,550 rpm	40 W	25 dB(A)	230 V
LWDA-100(4")S-MWN-08	140 m³/h	58 Pa	2,800 rpm	20 W	48 dB(A)	220 V	View
LWDA-100(4")U-PWN-17	205 m³/h	135 Pa	1,900 rpm	34 W	24 dB(A)	115 V	View
LWDA-100(4")S-PWN-15	205 m³/h	135 Pa	1,900 rpm	25 W	24 dB(A)	230 V	View
LWDA-100S-MBN-14	242 m³/h	326 Pa	2,450 rpm	60 W	59 dB(A)	230 V	View
LWDA-100(4")U-PWN-16	325 m³/h	163 Pa	2,360 rpm	34 W	30 dB(A)	115 V	View
LWDA-100(4")S-PWN-14	325 m³/h	163 Pa	2,360 rpm	36 W	30 dB(A)	230 V	View
LWDA-100 (4")U-PWN-01	410 m³/h	see curve	3,350 rpm	41 W	52 dB(A)	110-120 V	View
LWDA-100 (4")U-MWN-03	410 m³/h	see curve	3,350 rpm	41 W	51 dB(A)	110-120 V	View
LWDA-100 (4")S-PWN-02	605 m³/h	168 Pa	2,900 rpm	41 W	51 dB(A)	220-240 V	View
LWDA-100 (4")S-MWN-04	605 m³/h	see curve	2,900 rpm	41 W	49 dB(A)	220-240 V	View
