ImpellerØ200 mm7.9 in
Max airflow662 m³/h390 CFM
Max static pressure505 Pa2.03 in. wg
Voltage48 V
Speed2,600 rpm
Input power60 W
Noise67 dB(A)

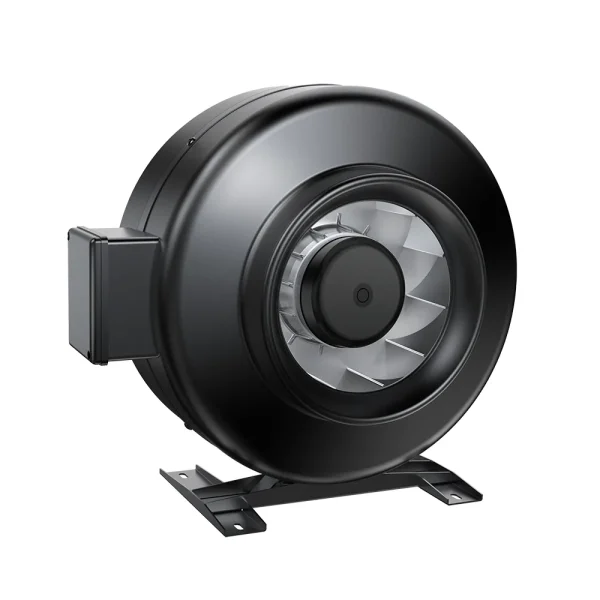

LWDD-200H-MBN-12 DC Metal Inline Duct Fan Ø200 mm

Ø200 mm | DC | Max airflow 662 m³/h | Max static pressure 505 Pa | 67 dB(A)

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · ETL · RoHS

View RFQ →

Get a quote · LWDD-200H-MBN-12

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Datasheet (PDF)electrical & performance data All files for LWDD-200H-MBN-12drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

LWDD-200H-MBN-12 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

LWDD-200H-MBN-12 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

Downloads for LWDD-200H-MBN-12

PDFDatasheet · 545 KB

Need a non-standard size or another format? Ask an engineer or search the download center.

LWDD-200H-MBN-12 is a LONGWELL DC Metal Inline Duct Fan from the Metal Inline Duct Fans range, impeller Ø200 mm, rated 48 V DC, maximum airflow 662 m³/h, maximum static pressure 505 Pa, noise 67 dB(A), input power 60 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model	LWDD-200H-MBN-12
Series	LWDD200
Motor type	DC
Rated voltage	48 V
Current	1.2 A
Input power	60 W
Speed	2,600 rpm
Max. airflow	662 m³/h
Max. static pressure	505 Pa
Noise	67 dB(A)
Impeller diameter	Ø200 mm
Inlet diameter	200mm
Impeller material	Plastic

Typical applications

Residential and commercial fresh-air systems
Kitchen and bathroom exhaust
Local pressurisation and booster duty
Hotel and office ventilation

Series LWDD200: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø200 mm · DC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWDD-200H-MBN-12 this model	662 m³/h	505 Pa	2,600 rpm	60 W	67 dB(A)	48 V
LWDD-200M-MBN-11	662 m³/h	505 Pa	2,600 rpm	60 W	67 dB(A)	24 V	View
LWDD-200L-MBN-10	662 m³/h	505 Pa	2,600 rpm	60 W	67 dB(A)	12 V	View
LWAD20060HL-02	761.4 m³/h	107 Pa	2,000 rpm	28.8 W	57.2 dB(A)	48 V	View
LWAD20060ML-03	761.4 m³/h	107 Pa	2,000 rpm	36 W	57.2 dB(A)	24 V	View
LWAD20060HM-01	951.6 m³/h	168 Pa	2,500 rpm	72 W	62 dB(A)	48 V	View
LWAD20060MM-02	951.6 m³/h	168 Pa	2,500 rpm	48 W	62 dB(A)	24 V	View
LWAD3G200ZB-7MGW-08	979 m³/h	319 Pa	3,000 rpm	55 W	60 dB(A)	310 V	View
LWAD3G200ZS-7MGW-07	979 m³/h	319 Pa	3,000 rpm	55 W	60 dB(A)	310 V	View
LWAD3G200ZB-7MEW-06	979 m³/h	319 Pa	3,000 rpm	55 W	60 dB(A)	310 V	View
LWAD3G200ZS-7MEW-05	979 m³/h	319 Pa	3,000 rpm	55 W	60 dB(A)	310 V	View
LWAD3G200ZB-7MNW-04	979 m³/h	319 Pa	3,000 rpm	55 W	60 dB(A)	310 V	View
LWAD3G200ZS-7MNW-03	979 m³/h	319 Pa	3,000 rpm	55 W	60 dB(A)	310 V	View
LWAD3G200HS-7MKB-02	1,236 m³/h	278 Pa	3,000 rpm	60 W	62 dB(A)	48 V	View
LWAD3G200MS-7MKB-01	1,236 m³/h	278 Pa	3,000 rpm	60 W	62 dB(A)	24 V	View
